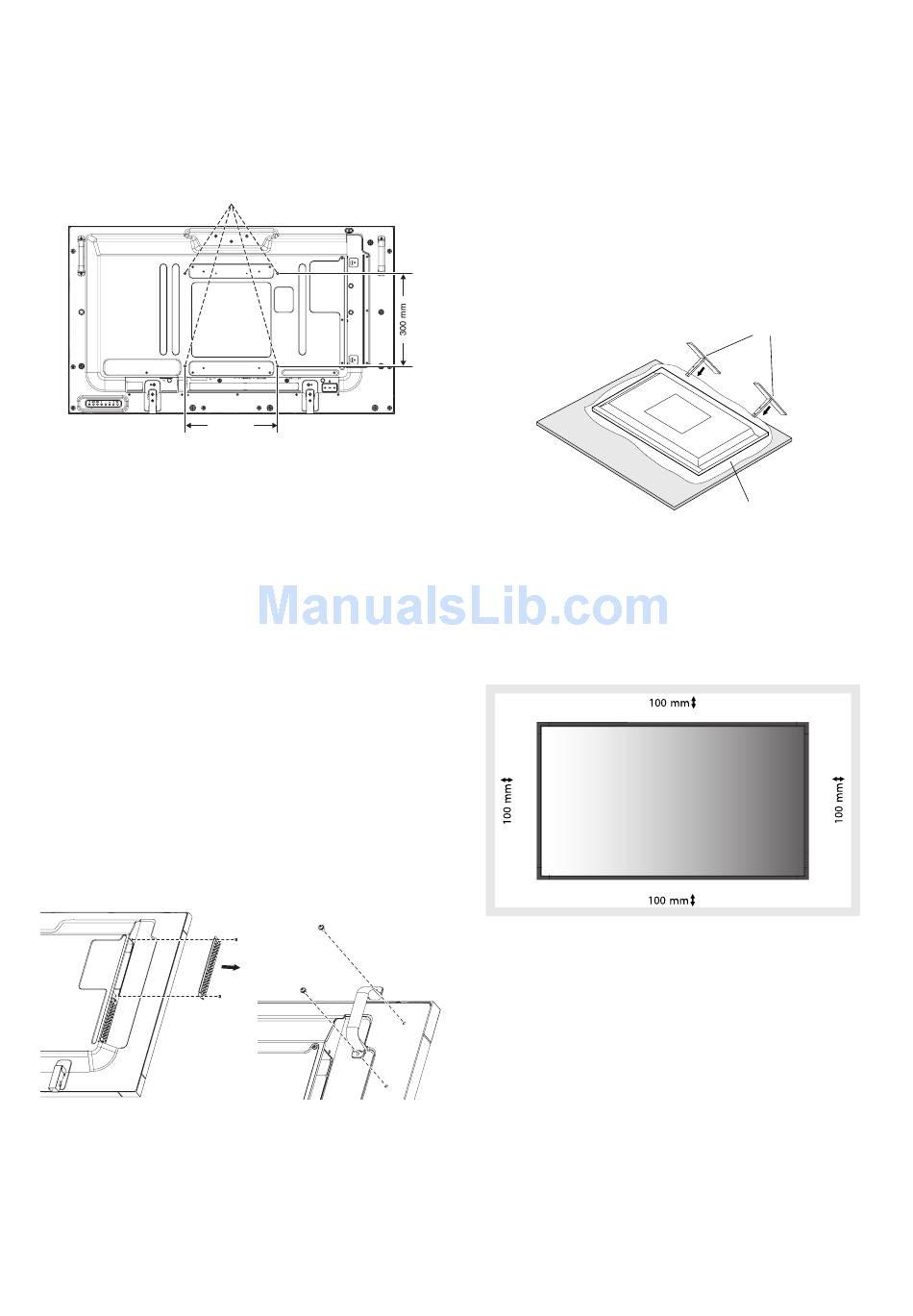

Attaching Mounting Accessories

The monitor is designed for use with the VESA mounting
system.
1. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching
accessories.
VESA Mounting Interface
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD.
The protective sheet was wrapped around the LCD in the
original packaging. Make sure there is nothing on the table
that can damage the monitor.
When using mounting accessories other than NEC compliant
and approved, they must comply with the VESA-compatible
mounting method.
2. Using Option Board
1. Turn off the main power switch.
1
2. Remove the handle.*
3. Remove the attached slot cover by unscrewing the
installed screws (Figure 1).
4. Insert option board in to the monitor. Attach the slot cover
by using the removed screws.
5. Attach the handle.*
1
NOTE:
Please contact your supplier for available option
boards.
Do not apply excessive force to manipulate the
optional board before fi xing it with screws.
Figure 1
*1: P403/P463 only.
300 mm
(P403/P463 only)
3. Installing and removing optional table
top stand
CAUTION: Installing and removing the stand must be done
by two or more people.
To install, follow those instructions included with the stand or
mounting apparatus. Use only those devices recommended
by the manufacturer.
NOTE:
For P403/P463, use ONLY thumbscrews which
are included with the optional table top stand.
For P553, use ONLY thumbscrews which are
included in the monitor.
When installing the LCD monitor stand, handle the unit with
care to avoid pinching your fi ngers.
Table
NOTE:
Install the stand so the long end of the feet face
forward. Use the ST-322 for the P403/P463 and
the ST-5220 for the P553.
4. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the enclosure
to allow heat to disperse, as shown below.
Allow adequate ventilation or provide air conditioning around
the monitor, so that heat can properly dissipate away from
the unit and mounting apparatus; especially when you use
monitors in multiple screen.
NOTE:
The sound quality of the internal speakers will
differ according to the acoustics of the room.
English-6
Optional table top stand
