Connections

NOTE:
Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE:
Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
*
First turn off the power of all the attached equipment and make connections.
*
Refer to the user manual included with each separate piece of equipment.

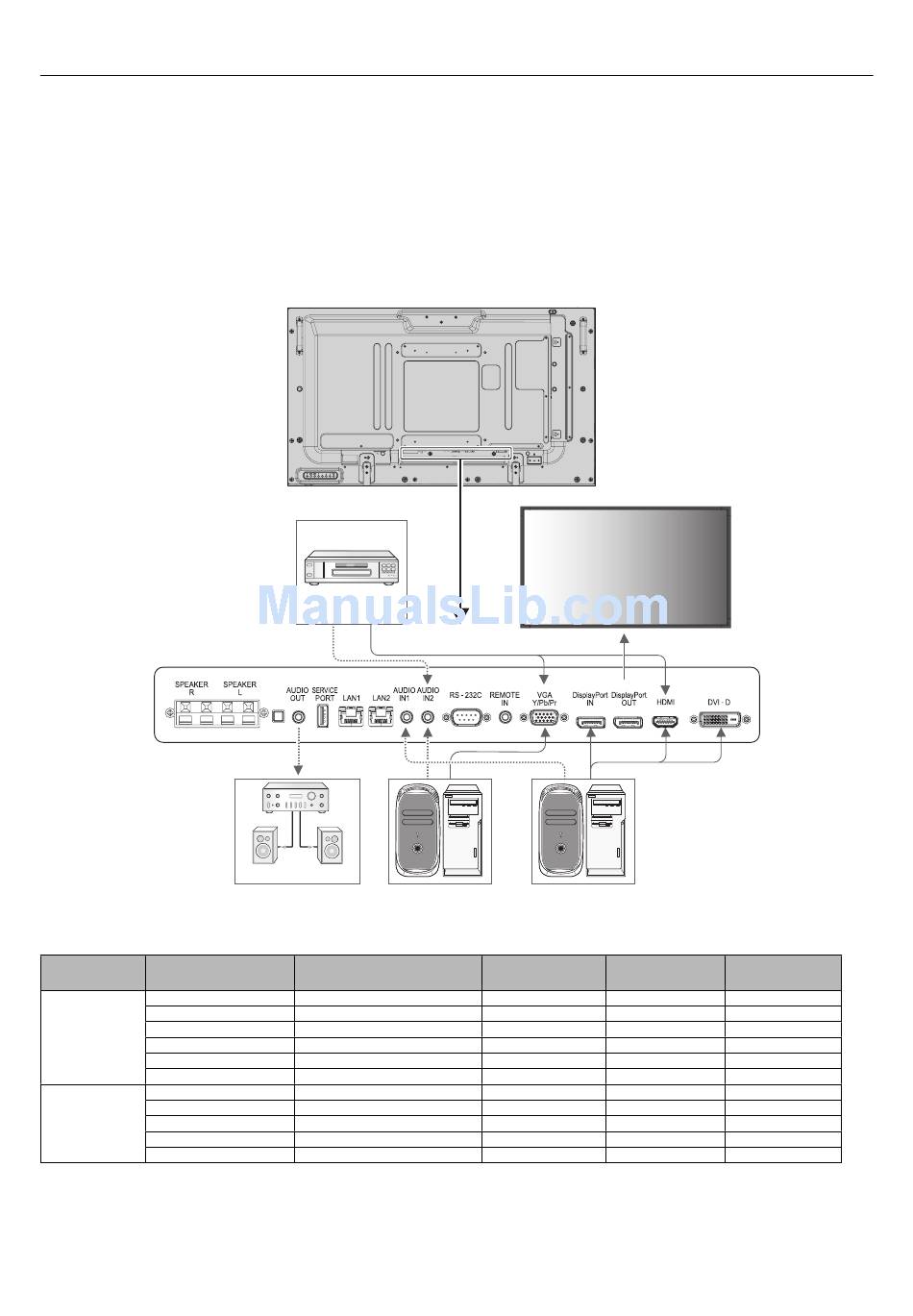

Wiring Diagram

*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
Connected
Connecting
equipment
terminal
DisplayPort
DVI (DVI-D)
HDMI
AV
VGA (D-Sub)
VGA (D-Sub)
Option
DisplayPort
DVI (DVI-D)
PC
HDMI
VGA (D-Sub)
Option
*1: depend on signal type.
DVD Player
Stereo Amplifi er
Computer (Analog)
Setting in terminal mode
-
DVI-HD
RAW/EXPAND*
1
D-SUB MODE RGB
D-SUB MODE COMPONENT
-
-
DVI-PC
1
RAW/EXPAND*
-
-
English-14
Second monitor*
Solid lines = video signal
Dotted lines = audio signal
Computer (Digital)
Connecting
Input signal name
audio terminal
DP
DPORT
DVI
AUDIO IN1/IN2
HDMI
HDMI
VGA
AUDIO IN1/IN2
COMPONENT
AUDIO IN1/IN2
OPTION
OPTION
DP
DPORT
DVI
AUDIO IN1/IN2
HDMI
HDMI
VGA
AUDIO IN1/IN2
OPTION
OPTION
Input button
in remote control
DisplayPort
DVI
HDMI
RGB/HV
Y/Pb/Pr
OPTION
DisplayPort
DVI
HDMI
RGB/HV
OPTION
