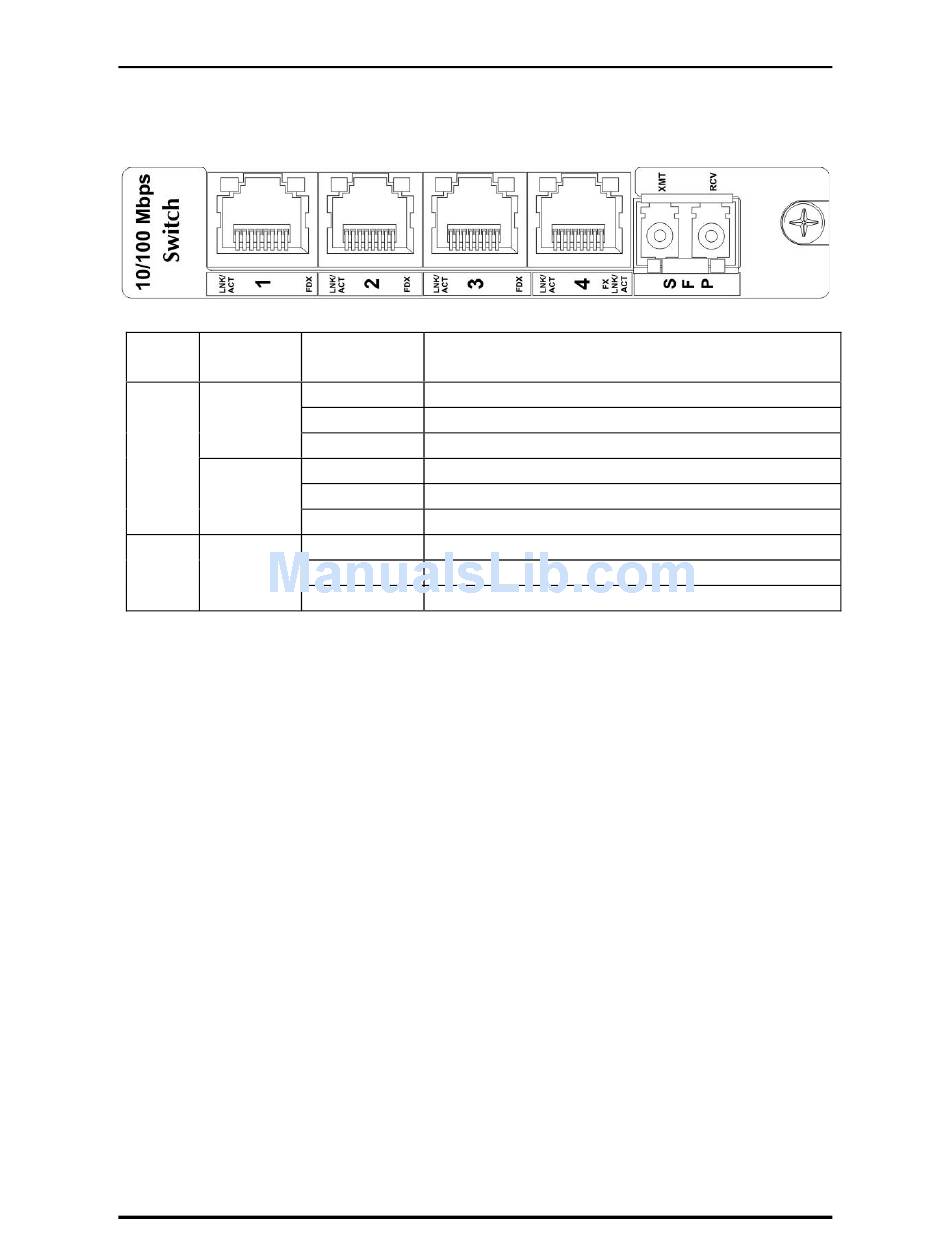

iMcV-Switch TX/4 + SFP
For all units with 4 copper ports, the two LEDs associated with each twisted pair port
are defined as follows:
Port
LED
Name
LNK/ACT
TX
FDX
FX
LNK/ACT
Color
OFF
No link signal detected on copper port
GREEN
Copper port is receiving sync signal
Flash GREEN
Activity is detected on the port
OFF
Port is operating in half duplex
GREEN
Port is operating in full duplex
Flash GREEN
Flashes when port is set to HDX and collisions occur
OFF
No SFP installed
GREEN
Glows green when Link is established
Flash GREEN
Flashes GREEN w/Activity
