Unmanaged Modules

The iMcV-Switch is an unmanaged 5-port 10/100 module; there are no DIP Switch
settings to configure. If installed in an unmanaged chassis, the LEDs will indicate the
status of each port.
Port LEDs
The ports on the iMcV-Switch include diagnostic LEDs that indicate unique
information about the port functionality and status.

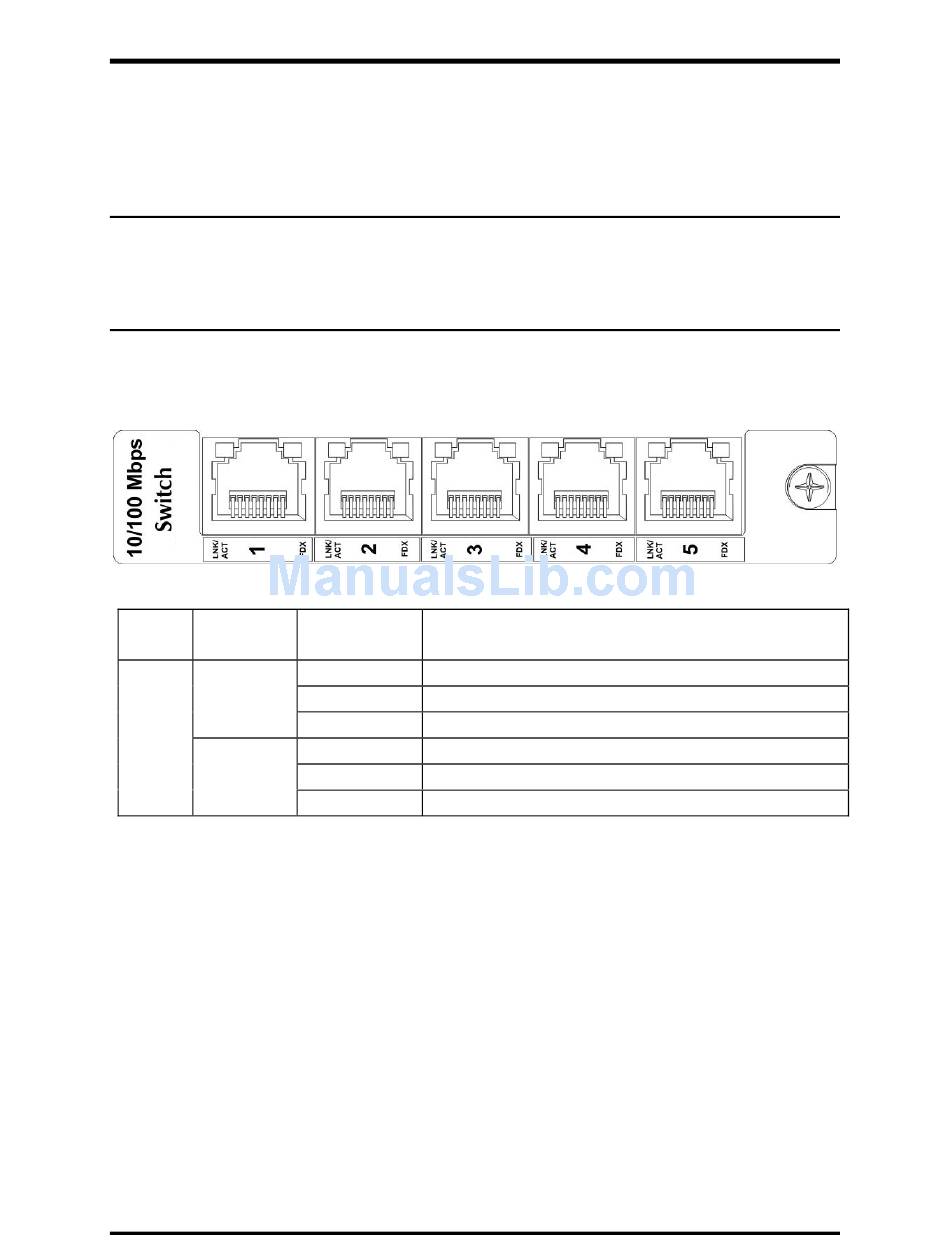

iMcV-Switch TX/5
For all units with 5 copper ports, the two LEDs associated with each twisted pair port
are defined as follows:
Port LED
Name
LNK/ACT
TX
FDX
Color
OFF No link signal detected on copper port
GREEN Copper port is receiving sync signal
Flash GREEN Activity is detected on the port
OFF Port is operating in half duplex
GREEN Port is operating in full duplex
Flash GREEN Flashes when port is set to HDX and collisions occur
2
Function
