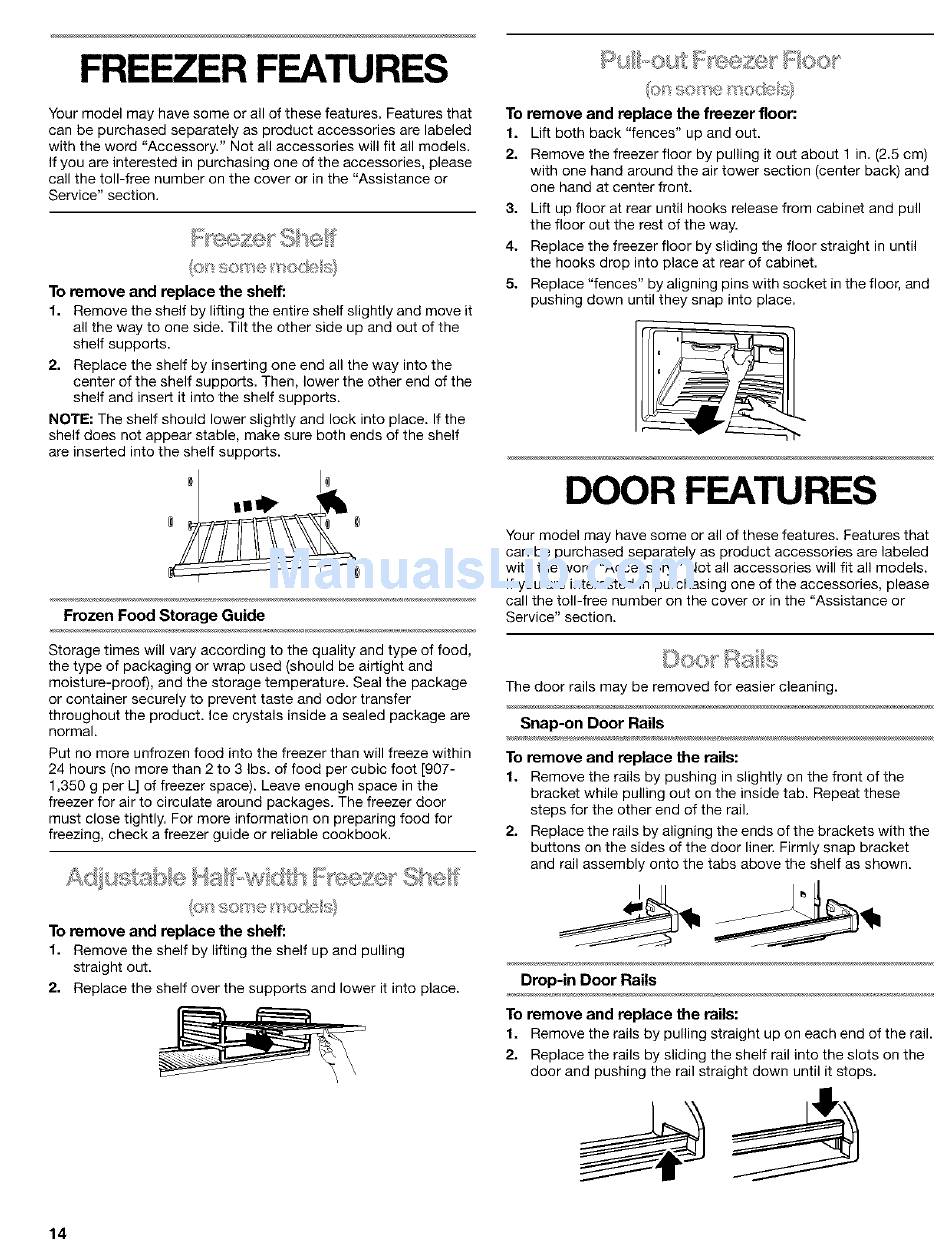

Freezer Features; Freezer Shelf; Adjustable Half-Width Freezer Shelf; Pull-Out Freezer Floor - Kenmore 2225401 Use & Care Manual

Top-mount refrigerator
Hide thumbs

Advertisement

Your model may have some or all of these features. Features that
can be purchased separately as product accessories
are labeled
with the word "Accessory."
Not all accessories will fit all models.
If you are interested in purchasing one of the accessories,
please
call the toll-free number on the cover or in the "Assistance or
Service" section.
To remove and replace the shelf:.
1. Remove the shelf by lifting the entire shelf slightly and move it
all the way to one side. Tilt the other side up and out of the
shelf supports.
2. Replace the shelf by inserting one end all the way into the
center of the shelf supports. Then, lower the other end of the
shelf and insert it into the shelf supports.
NOTE: The shelf should lower slightly and lock into place. If the
shelf does not appear stable, make sure both ends of the shelf
are inserted into the shelf supports.
Frozen Food Storage Guide
Storage times will vary according to the quality and type of food,
the type of packaging or wrap used (should be airtight and
moisture-proof),
and the storage temperature.
Seal the package
or container securely to prevent taste and odor transfer
throughout the product. Ice crystals inside a sealed package are
normal.
Put no more unfrozen food into the freezer than will freeze within
24 hours (no more than 2 to 3 Ibs. of food per cubic foot [907-
1,350 g per L] of freezer space). Leave enough space in the
freezer for air to circulate around packages. The freezer door
must close tightly. For more information on preparing food for
freezing, check a freezer guide or reliable cookbook.
To remove and replace the shelf:.
1. Remove the shelf by lifting the shelf up and pulling
straight out.
2. Replace the shelf over the supports and lower it into place.
To remove and replace the freezer floor:
1. Lift both back "fences" up and out.
2.
Remove the freezer floor by pulling it out about 1 in. (2.5 cm)
with one hand around the air tower section (center back) and
one hand at center front.
3.
Lift up floor at rear until hooks release from cabinet and pull
the floor out the rest of the way.
4.
Replace the freezer floor by sliding the floor straight in until
the hooks drop into place at rear of cabinet.
5.
Replace "fences" by aligning pins with socket in the floor, and
pushing down until they snap into place.
DOOR
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
If you are interested in purchasing one of the accessories,
please
call the toll-free number on the cover or in the "Assistance
or
Service" section.
The door rails may be removed for easier cleaning.
Snap-on
Door Rails
To remove and replace _e roils:
1o Remove the rails by pushing in slightly on the front of the
bracket while pulling out on the inside tab. Repeat these
steps for the other end of the rail.
2.
Replace the rails by aligning the ends of the brackets with the
buttons on the sides of the door liner. Firmly snap bracket
and rail assembly onto the tabs above the shelf as shown.
Drop-in Door Rails
To remove and replace the roils:
1. Remove the rails by pulling straight up on each end of the rail.
2.
Replace the rails by sliding the shelf rail into the slots on the
door and pushing the rail straight down until it stops.
14
