Kenmore 2220698 Use & Care Manual

Kenmore refrigerator user manual
Hide thumbs

Advertisement

®

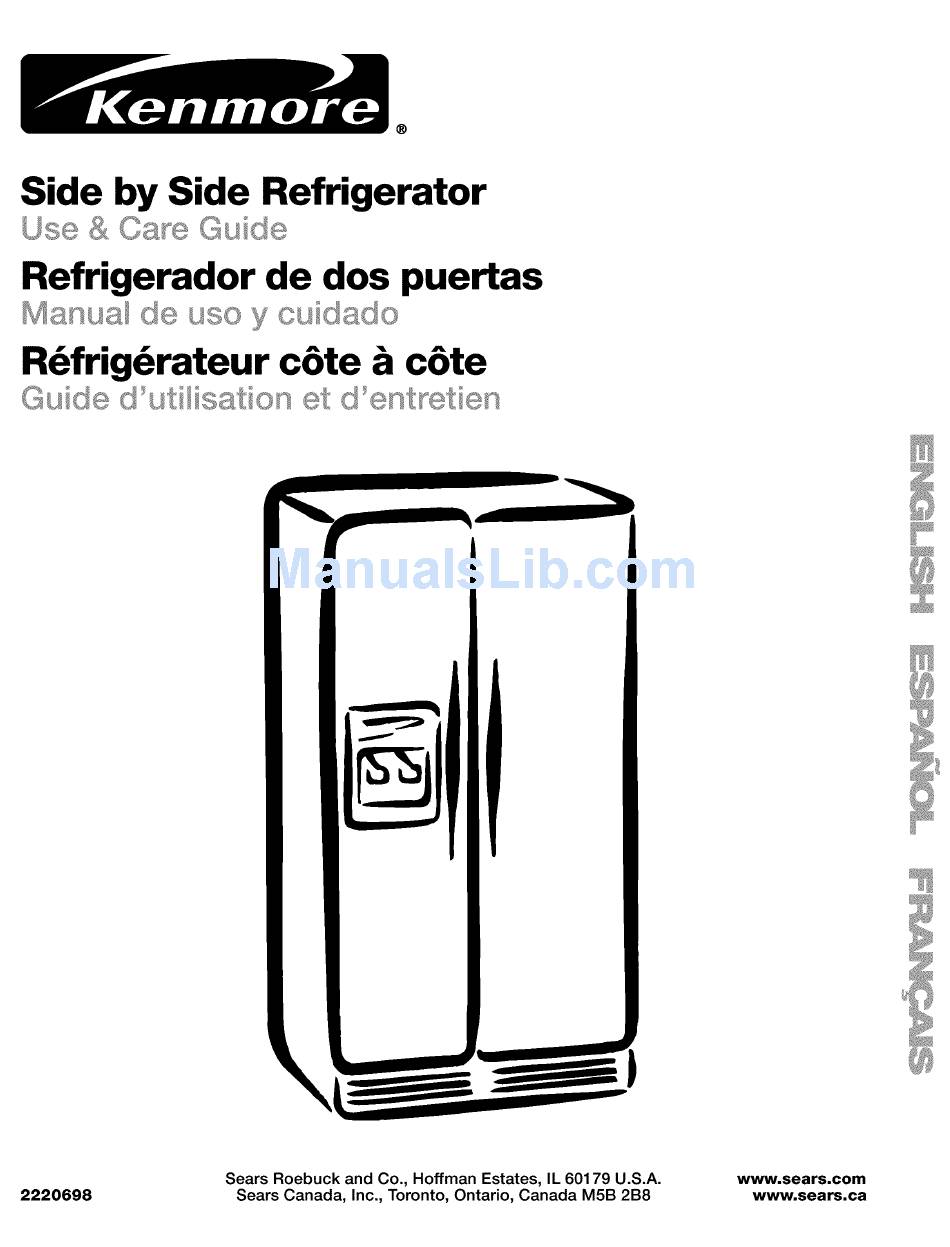

Side by Side Refrigerator
Use & OsageGuide
Refrigerador
de dos puertas
Manua_ de uso y cu_dado
R6frig6rateur
c6te & c6te
Guide
o___,,:_0
c_ut_saSon et d°ent:tx_:tien
\
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
2220698
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8
www.sears.ca

Advertisement

Table of Contents
loading

  Summary of Contents for Kenmore 2220698

  • Page 1 Use & OsageGuide Refrigerador de dos puertas Manua_ de uso y cu_dado R6frig6rateur Guide o___,,:_0 c_ut_saSon et d°ent:tx_:tien Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. 2220698 Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 ® c6te & c6te www.sears.com www.sears.ca...
  • Page 2: Table Of Contents

    PRODUCT DATA SHEETS ... WARRANTY ONE-YEAR FULL WARRANTY ON REFRIGERATOR For one year from the date of purchase, when this refrigerator is operated and maintained according to instructions attached to or furnished with the product, Sears will repair this refrigerator, free of charge, if defective in material or workmanship.
  • Page 3: Refrigerator Safety

    IM PORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions: • Plug into a grounded 3 prong outlet.
  • Page 4: Refrigerator Installation

    To ensure proper ventilation for your refrigerator, allow for V2in. (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall, leave 2 in. (5.08 cm) minimum on each side (depending on your model) to allow for the door to swing open.
  • Page 5: Electrical Requirements

    Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection:...
  • Page 6: Base Grille

    NOTE: It may only be necessary to remove either the door handle or the doors to get your product through the doorway of your residence. Measure the door opening to determine whether to remove the refrigerator handles or the doors.
  • Page 7 1. Unplug refrigerator or disconnect power. 2. Open both refrigerator doors. Remove the base grille by pulling up on the bottom outside corners (see Graphic 2). 3. Close both doors and keep them closed until you are ready to lift them free from the cabinet.
  • Page 8: Door Closing

    Your refrigerator has two front adjustable rollers -- one on the right and one on the left. If your refrigerator seems unsteady or if you want the doors to close more easily, adjust the refrigerator's tilt using the instructions below: Move the refrigerator into its final position.
  • Page 9: Water System Preparation

    • Discard the first three batches of ice produced. Your new refrigerator may make sounds that your old one didn't make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, such as the floor, walls, and cabinets, can make the sounds seem louder.
  • Page 10: Using The Controls

    The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm. If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls.
  • Page 11: Interior Water Filtration System

    The water dispenser If you did not flush the water system when the refrigerator was first installed, press the water dispenser bar with a glass or jar until you draw and discard 2 to 3 gal. (8 to 12 L) or approximately 6 to 7 minutes of water after water begins dispensing.
  • Page 12: Ice Maker And Storage Bin/Bucket

    Maximum Ice Production (on some models): ice production, the ice maker should produce approximately 10 to 14 batches of ice in a 24-hour period. If your refrigerator has the maximum ice production feature, push the switch to MAX. To remove and replace the ice bin: Pull the covering panel out from the bottom and then slide it back toward the rear.
  • Page 13: Refrigerator Shelves

    Replace back of meat drawer cover frame into supports or slides on side walls of the refrigerator and lower or slide the front of the cover frame into place. 4. Slide rear of glass insert into cover frame and lower front into place.
  • Page 14: Convertible Vegetable/Meat Drawer Temperature Control

    • Fruit: Wash, let dry and store in refrigerator in plastic bag or crisper. Do not wash or hull berries until they are ready to use. Sort and keep berries in original container in crisper, or store in a loosely closed paper bag on a refrigerator shelf.
  • Page 15: Freezer Basket Or Bin

    Use nonflammable Failure to do so can result in death, explosion, or fire. Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to prevent odors from building up. Wipe up spills immediately. Cleaning your refrigerator 1.
  • Page 16: Changing The Light Bulbs

    If the power will be out for 24 hours or less, keep both refrigerator doors closed to help food stay cold and frozen. If the power will be out for more than 24 hours, do one of the following: •...
  • Page 17: Vacation And Moving Care

    OR screw in the leveling legs so they don't scrape the floor. See the "Door Closing" or "Leveling Your Refrigerator" section. 10. Tape the doors shut and the power cord to the refrigerator cabinet. When you get to your new home, put everything back and refer to the "Refrigerator...
  • Page 18 Are the door gaskets not sealed all the way around? Contact a technician or other qualified person. NOTE: Your new refrigerator will run longer than your old one due to its high-efficiency motor. The refrigerator seems to make too much noise •...
  • Page 19 Are the air vents blocked in either compartment? prevents the movement of cold air from the freezer to the refrigerator. Remove any objects from in front of the air vents. See the "Ensuring Proper Air Circulation" section for the location of air vents.
  • Page 20: Service

    We Service What We Sell. Sears Maintenance Your Kenmore ®appliance is designed, manufactured to provide years of dependable appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding program, affordably priced.
  • Page 21: Water Filter Certifications

    WATER CERTIFICATIONS State of California Department of Health Services Water Treatment Device Certificate Number 99- 1410 Datol_ued: Deeemb_14,1999 Reulecement Trademark/Model Designation WFI-NLCS200 NLCS200 Manufacturer: Sears Roebuck mad Company Lead Oreanie Contaminants Non_ Rated Service Capacity: 200 gallons Rated Service Do not use where water is mierobiologieally...
  • Page 22: Product Data Sheets

    PRODUCT DATA Cyst Interior Water Filtration System Model WFI-NLCS200/NLCS200 Capacity: 200 gallons (757 liters), Service flow rate: 0.5 GPM (1.89 L/min.) @ 60 psi. Substance Reduction U.S. EPA Aesthetic Effects Chlorine Taste/Odor Particulate Contaminant U.S. EPA Reduction Cyst 99.95%** Turbidity Lead: @ pH 6.5 0.015 mg/L Lead: @ pH 8.5...
  • Page 23 Para pedir servicio de reparaci6n a domicilio, y para ordenar 1-888-SU-HOGAR (1-888-784-6427) 2220698 ® Marca Registrada / TMMarca de F&brica / SMMarca de Servicio de Sears, Roebuck and Co. © Sears, Roebuck and Co. Your Home your home-of all major brand appliances,...
