3 PCB

3.1 PCB Layout

AVR430
6
The MC300 is organized as shown in Figure 3-1. Most signals, important components
and jumper information are written on the silk screen. For individual component
placement refer to the component floorplan.

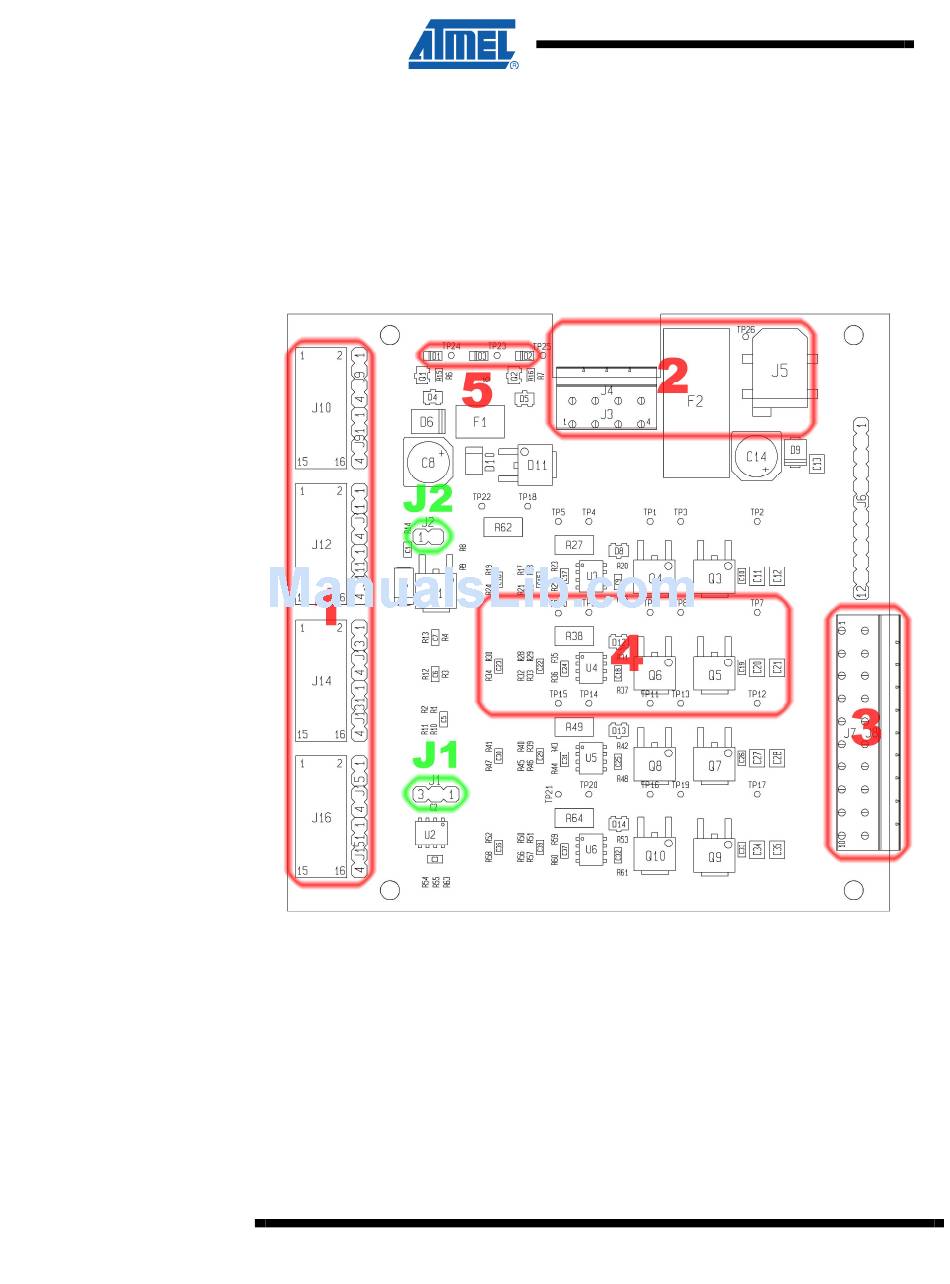

Figure 3-1. MC300 PCB layout.
In Figure 3-1 the following areas are marked:
1. Device board connector.
2. Power connectors
3. Motor connector
4. Phase area
5. Indicator LEDs for power
