Atmel STK500 Specification Sheet

T E W
HE ASIEST

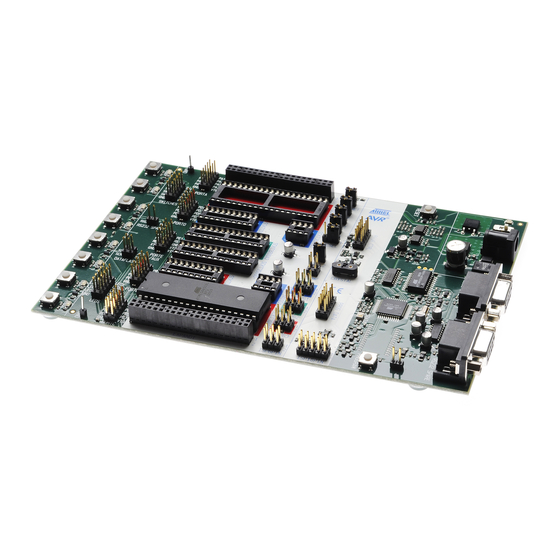

The Atmel ® AVR STK500 is a starter kit and development system for Atmel's AVR
Flash microcontrollers. The STK500 gives designers a quick start to develop
code on the AVR, combined
with features for developing
prototypes and testing new
designs. The STK500 interfaces
AVR Studio ® , Atmel's Integrated
Development Environment
(IDE) for code writing and
debugging.
AVR Studio Operated
Serial In-System Programming
In-System Programming in External
Target Systems
Parallel and Serial High-voltage
Programming
RS-232 Interface to PC
Sockets for 8-, 20-, 28-, and 40-pin
AVR Devices
Flexible Clocking, Voltage and Reset
System
G S
AY TO ET TARTED WITH
LEDs and Push Buttons for
Experimentation
All AVR I/O Ports Easily Accessible
through Pin Header Connectors
Spare RS-232 Driver and Connector
Upgrades are done from AVR Studio
Expansion Connectors for Plug-in
Modules and Prototype Areas
Target Voltage 1.8 – 6.0V
Supply Voltage 9 – 12V
M
STK500
Starter Kit
and
Development
AVR
System
®
I C R O C O N T R O L L E R S
