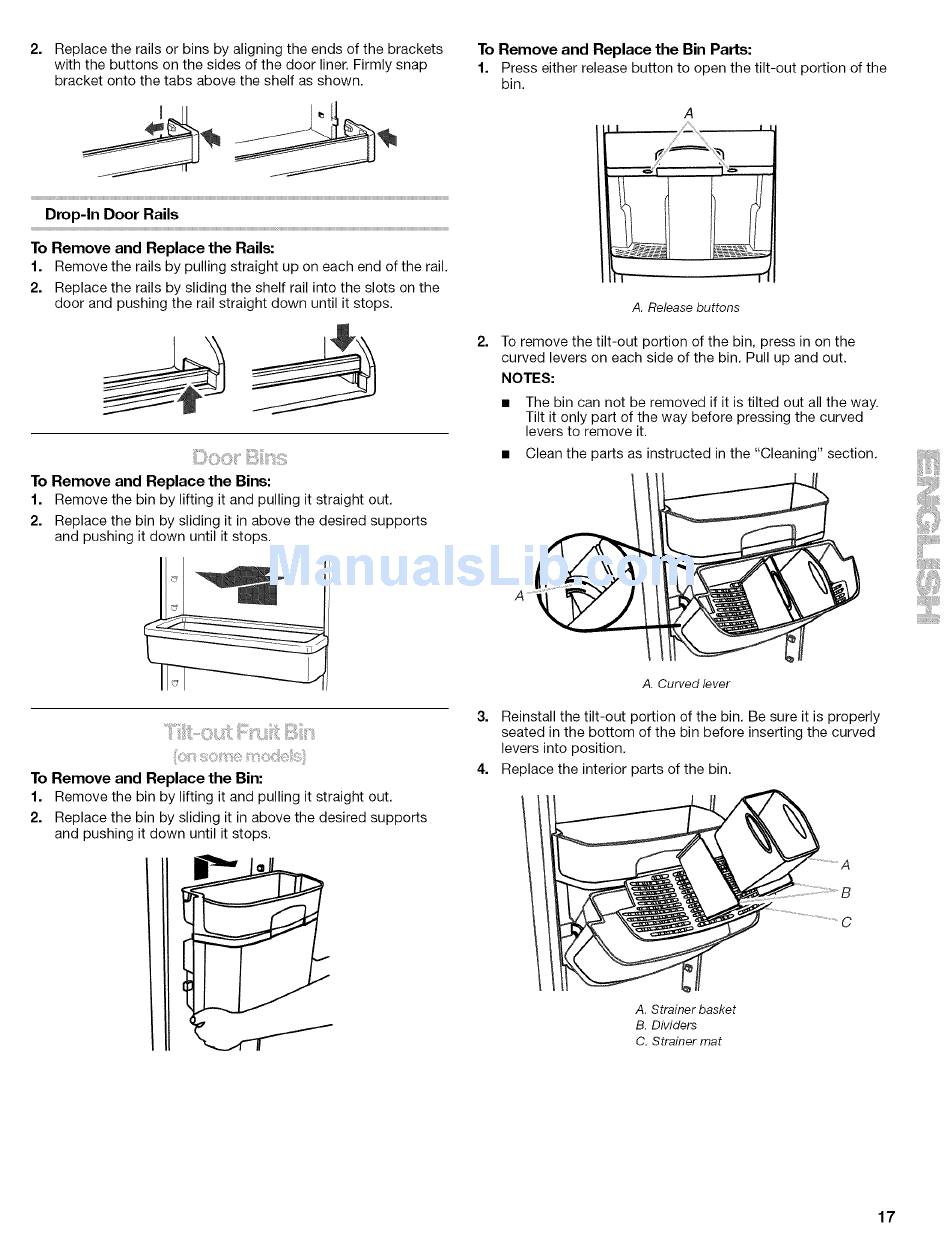

2. Replace the rails or bins by aligning the ends of the brackets
with the buttons on the sides of the door liner. Firmly snap
bracket onto the tabs above the shelf as shown.
Drop-In
Door Rails
To Remove
and Replace the Rails:
1. Remove the rails by pulling straight up on each end of the rail,
2. Replace the rails by sliding the shelf rail into the slots on the
door and pushing the rail straight down until it stops.
To Remove
and Replace the Bins:
1. Remove the bin by lifting it and pulling it straight out,
2. Replace the bin by sliding it in above the desired supports
and pushing it down until it stops,
To Remove and Replace the Bin Parts:
1. Press either release button to open the tilt-out portion of the
bin.
A
I I
rr-
,=1
A. Release buttons
To remove the tilt-out portion of the bin, press in on the
curved levers on each side of the bin. Pull up and out.
NOTES:
The bin can not be removed if it is tilted out all the way,
Tilt it only part of the way before pressing the curved
levers to remove it.
Clean the parts as instructed in the "Cleaning"
section,
To Remove
and Replace the Bin:
1. Remove the bin by lifting it and pulling it straight out.
2. Replace the bin by sliding it in above the desired supports
and pushing it down until it stops.
J
A. Curved lever
3. Reinstall the tilt-out portion of the bin. Be sure it is properly
seated in the bottom of the bin before inserting the curved
levers into position,
4. Replace the interior parts of the bin.
C
A. Strainer basket
B. Dividers
C. Strainer mat
