Connecting The Network Transient Protector - Compaq 2000 Series UPS Operation And Reference Manual

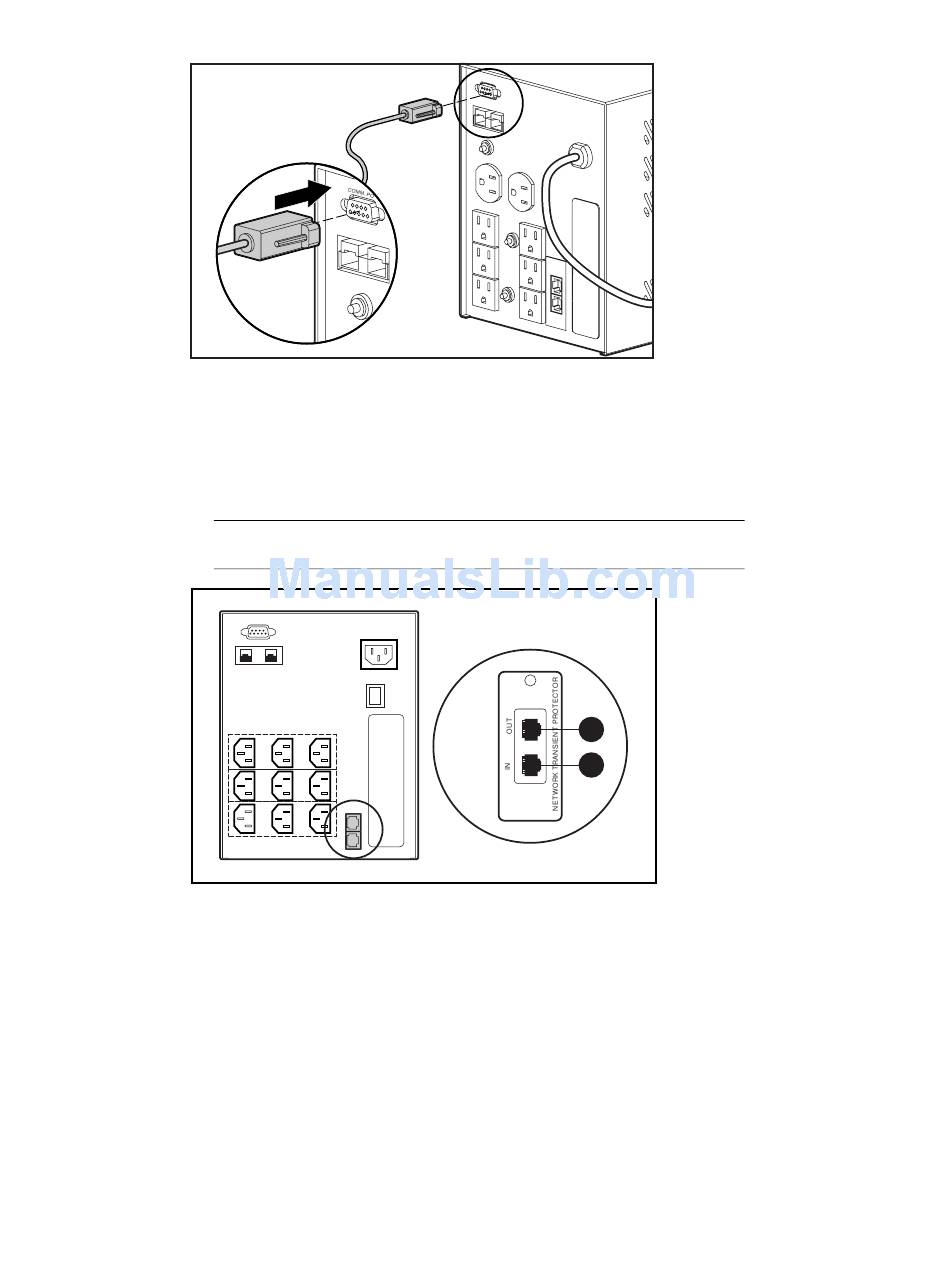

Figure 2-2. Connecting the UPS/computer interface cable

Connecting the Network Transient Protector

The 2000 Series UPS models include a Network Transient Protector to provide
surge protection for connected communications devices.
IMPORTANT: Use the Network Transient Protector with a standard telephone line only—
not with a digital PBX.
COMM PORT
Figure 2-3. Connecting the Network Transient Protector
Network cable OUT jack
C O M M
P O R T
1
0
a
m
OUT
p
IN
Network cable IN jack
Installation 2-5
