Operating Manual

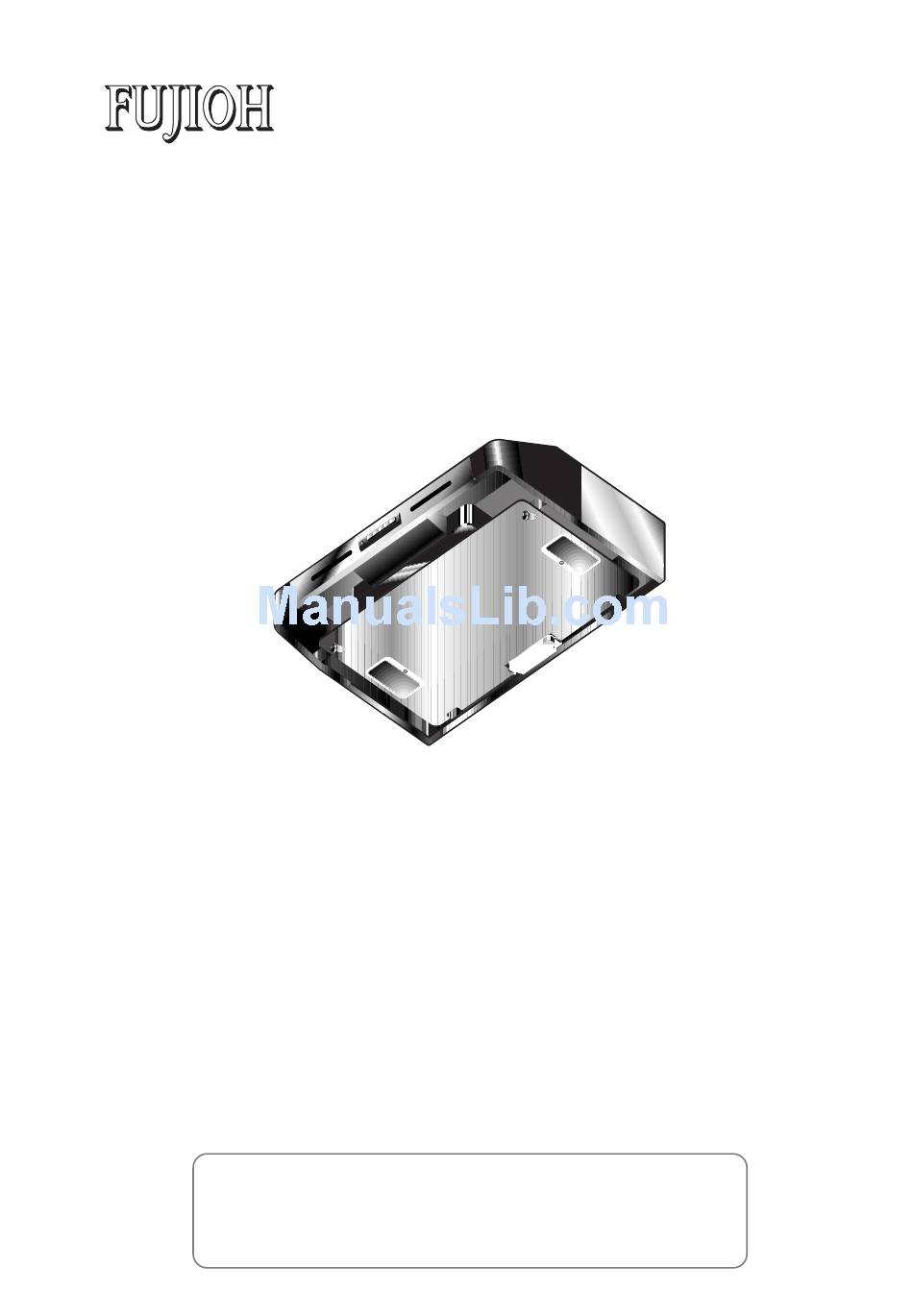

INSTALLATION MANUAL
MODEL: FSR-3000
Safety Instructions .............................................................................................. 3
Name of Parts ..................................................................................................... 5
Size & Dimensions .............................................................................................. 5
Range Hood Location ......................................................................................... 6
Installation ........................................................................................................... 7
1. Preparation ................................................................................................ 7
2. Range Hood Mounting ............................................................................. 11
3. Connecting Power Supply Wires ............................................................. 12
4. Final Assembly and Check ...................................................................... 13
Explanation to the End User ............................................................................. 14
Circuit Diagram ................................................................................................. 14
READ AND SAVE THESE INSTRUCTIONS.
Keep this manual in a convenient place for future reference.
FUJI INDUSTRIAL CO., LTD.
Range Hood
FSR-3600
FSR-4200
TABLE OF CONTENTS
1U030381
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fujioh FSR-3000
Summary of Contents for Fujioh FSR-3000
-
Page 1: Table Of Contents
Range Hood INSTALLATION MANUAL MODEL: FSR-3000 TABLE OF CONTENTS Safety Instructions ... 3 Name of Parts ... 5 Size & Dimensions ... 5 Range Hood Location ... 6 Installation ... 7 1. Preparation ... 7 2. Range Hood Mounting ... 11 3. -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Before installation and operation, read these instructions carefully and use this product only in the manner described by the manufacturer in the operation manual. The instructions shown below are used to alert you to potential personal injury and property damage hazards. - Page 3 1. For general ventilating use only. Do not use to exhaust hazardous or explosive material and vapors. 2. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls, ceilings or into attics, crawl spaces or garages. 3.
-
Page 4: Name Of Parts
Wood Screw ( 6 pcs.) SIZE & DIMENSIONS (Unit : inch) Oil Catch Tray Screw Soft Tape ( 4 pcs.) ( 1 pc.) Body Lamp Box Fan Case Cover Duct Joint (rectangular) Cover Plate ( 1 pc.) Dimensions (in inches) Model FSR-3000 FSR-3600 FSR-4200... -
Page 5: Range Hood Location
The minimum distance from the cooking surface to the bottom of the range hood must be 24”. The total weight of the FSR series range hoods are: FSR-3000 ---------- 16 kg FSR-3600 ---------- 17 kg FSR-4200 ---------- 18 kg Power requirements are: AC120 V, 60 Hz, 1.9 Amp... -
Page 6: Installation
1. PREPARATION WARNING : • If the range hood is not installed properly, it could become detached and fall off. • Ensure that the metal duct does not touch other metal housing materials, otherwise fire or electric shock could result. This range hood can discharge upward or backward. - Page 7 ; 3¼" 10" Horizontal Ducting ; 7" Round Vertical Ducting...
- Page 8 Run house wiring between service panel and hood location. Prepare the range hood. (1) Remove the 7" round duct joint on the top plate of the body by removing 2 fixing screws. Note: Keep the screws for reusing later. (2) Remove the Rectifier Baffle Panel by loosening the screws, and dislocating its temporary fixing holes from the screws.
- Page 9 ; In Case of 3-1/4" 10" Vertical Discharge Mount the supplied 3-1/4" 10" rectangular duct joint on the top plate with 4 screws (2 pieces: removed in Step 4-1, the others: supplied). Then attach the supplied soft tape around the duct joint. ;...
-
Page 10: Range Hood Mounting
2. RANGE HOOD MOUNTING Referring to “SIZE & DIMENSIONS”, insert 4 washer head wood screws into the bottom plate of the cabinet. Marking before screwing is recommended. Allow about ¼" between the bottom plate and screwheads for hanging the hood body. With inserting the duct joint into the duct end, hook the temporary fixing holes of the body on the screws, then slide the... -
Page 11: Connecting Power Supply Wires
3. CONNECTING POWER SUPPLY WIRES WARNING : • Electrical wiring should be done by a qualified person(s) in Remove the nut from the conduit connector at the end of power wiring. WARNING : Be sure to switch power OFF at service panel before wiring. -
Page 12: Final Assembly And Check
Connect the electrical wires as follows: Connect wires tightly and securely using wire connectors (not supplied). • Black to Black • White to White • Green to Green Make sure that all wires are connected properly and enclosed inside of the wiring compartment. -
Page 13: Explanation To The End User
Explanation to the End User (1) Referring to the Operation Manual, explain the operation of this range hood to end users. (2) The Installation Manual and Operation Manual should be given to the end user. Black 120V White 60Hz Green Main Coil 3 Main Coil 2 CIRCUIT DIAGRAM... - Page 14 Fuji Industrial Co., Ltd. 2-1-9 Fuchinobe, Sagamihara-shi, Kanagawa-ken 229-0006 Japan Tel. +81-42-753-1001 Fax. +81-42-753-1009 1U030381...
