Operating Manual
INSTALLATION MANUAL
MODEL: FDR-4200
Safety Instructions .............................................................................................. 2
Name of Parts ..................................................................................................... 4
Size & Dimensions .............................................................................................. 5
Range Hood Location ......................................................................................... 5
Installation ........................................................................................................... 6
1. Preparation ................................................................................................ 6
2. Range Hood Mounting ............................................................................... 9
3. Connecting Power Supply Wires ............................................................. 10
4. Attaching Duct Cover ............................................................................... 11
5. Final Assembly and Check ...................................................................... 12
Explanation to the End User ............................................................................. 13
Circuit Diagram ................................................................................................. 13
READ AND SAVE THESE INSTRUCTIONS.
Keep this manual in a convenient place for future reference.
FUJI INDUSTRIAL CO., LTD.
Range Hood
FDR-4200D
TABLE OF CONTENTS
1U030481
Advertisement
Table of Contents
Related Manuals for Fujioh FDR-4200
Summary of Contents for Fujioh FDR-4200
-
Page 1: Table Of Contents

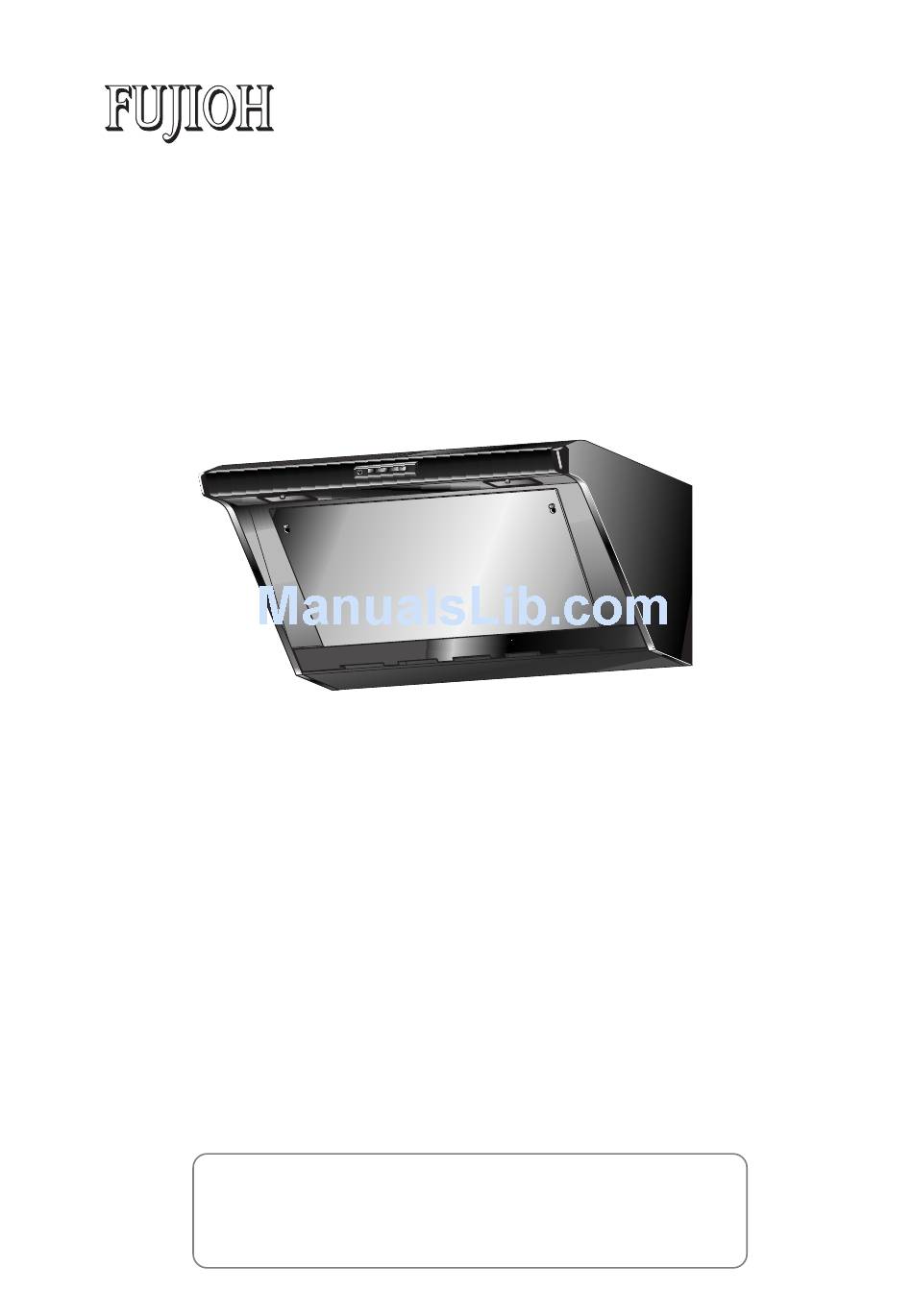

Range Hood INSTALLATION MANUAL MODEL: FDR-4200 FDR-4200D TABLE OF CONTENTS Safety Instructions ....................2 Name of Parts ..................... 4 Size & Dimensions ....................5 Range Hood Location ..................5 Installation ......................6 1. Preparation ....................6 2. Range Hood Mounting ................9 3. -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Before installation and operation, read these instructions carefully and use this product only in the manner described by the manufacturer in the operation manual. The instructions shown below are used to alert you to potential personal injury and property damage hazards. - Page 3 CAUTION 1. For general ventilating use only. Do not use to exhaust hazardous or explosive material and vapors. 2. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls, ceilings or into attics, crawl spaces or garages. 3.
-
Page 4: Name Of Parts
NAME OF PARTS Lamp Cover Spice Rack Switch (FDR-4200D only) Body Fan Case Cover Rectifier Baffle Panel Filter Oil Receiving Cover Oil Tray Accessories : : : : : Hanger : : : : : Duct cover [2 plates] [1 pc.] For mounting the hood body. -
Page 5: Size & Dimensions
The minimum distance from the cooking surface to the bottom of the range hood must be 11". The total weight of the FDR series range hoods are: FDR-4200 ---------- 28 kg FDR-4200D -------- 35 kg Power requirements are: AC120 V, 60 Hz, 1.9 Amp CAUTION : •... -
Page 6: Installation
INSTALLATION 1. PREPARATION WARNING : • If the range hood is not installed properly, it could become detached and fall off. • Ensure that the metal duct does not touch other metal housing materials, otherwise fire or electric shock could result. According to the conditions where the range hood is installed, determine whether it will discharge vertically or... - Page 7 ; 7" Round Horizontal Ducting NOTE: Provide the ducting and electrical cutouts within the shaded area (FDR-4200D only). DUCT COVER WIDTH 15" 11-13/16" BRACKET MOUNTING SCREWS (2) 13-3/4" 19-11/16" HOOD MOUNTING FRONT OF HOOD SCREWS (4) 15-3/4" Run house wiring between service panel and hood location. Prepare the range hood.
- Page 8 (3) Remove the slot filters Remove the screws fixing the slot filters, then lift them up to disengage from the catches of the body. Filter (4) Fix the hangers Four fixing screws are supplied with attaching to the top of the body. Fix the supplied hangers on the body firmly using these screws.
-
Page 9: Range Hood Mounting
2. RANGE HOOD MOUNTING CAUTION : The range hood is quite heavy (FDR-4200D: 35kg, FDR- 4200: 28kg), so be careful not to injured during mounting work. Referring to “SIZE & DIMENSIONS” on page 5, insert 2 supplied washer head wood screws into the mounting wall (for the left and right hangers). -
Page 10: Connecting Power Supply Wires
3. CONNECTING POWER SUPPLY WIRES WARNING : • Electrical wiring should be done by a qualified person(s) in accordance with all-applicable codes and standards, including fire-rated construction. An unqualified person doing the work could result in fire, electric shock or injury. •... -
Page 11: Attaching Duct Cover
4. ATTACHING DUCT COVER (FDR-4200D only) Duct Cover Remove the front panel of the supplied Front Panel duct cover by pulling out its bottom end (roller catch fastened). Note: The duct cover is supplied with its top plate assembled. Remove the top plate when it’s unnecessary. -
Page 12: Final Assembly And Check
5. FINAL ASSEMBLY AND CHECK Two 60 W light bulbs (not supplied) can be mounted to this range hood. Prior to final assembly, install light bulbs (in the base diameter 26 mm), rated 120 V - 60 W or below. Assembly (refer to “PREPARATION”) (1) The oil tray is attached with tape on the bottom inside of the body, so be sure to... -
Page 13: Explanation To The End User
Explanation to the End User (1) Referring to the Operation Manual, explain the operation of this range hood to end users. (2) The Installation Manual and Operation Manual should be given to the end user. CIRCUIT DIAGRAM Indicating Lamp Control Switch AC125V 3A Lock Lock Release... - Page 14 Fuji Industrial Co., Ltd. 2-1-9 Fuchinobe, Sagamihara-shi, Kanagawa-ken 229-0006 Japan Tel. +81-42-753-1001 Fax. +81-42-753-1009 1U030481...
