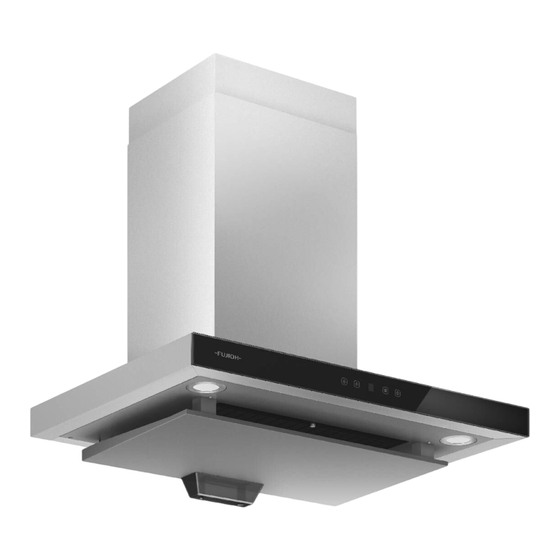

Content SAFETY INSTRCUTION..................1 INSTALLATION...................... 4 START USING YOUR COOKER HOOD............9 TROUBLESHOOTING..................10 MAINTENANCE AND CLEANING..............11 ENVIRONMENTAL PROTECTION..............13 LIST OF INCLUDED ITEMS................14 CIRCUIT DIAGRAM.................... 15 INFORMATION FOR LAMP................15 SPECIFICATION....................15 目录 安全指引........................ 16 安装........................18 开始使用吸油烟机....................23 故障排除........................ 24 维修及清洁......................
SAFETY INSTRCUTION This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. Never to do: Do not try to use the cooker hood without the grease filters or if the ...
Page 4
monoxide poisoning. After installation of a cooker hood or other cooking fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur. Always to do: Important! Always switch off the electricity supply at the mains ...
Page 5
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. INSTALLATION MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body.
Page 7
1. Before installation, turn the unit off and unplug it from the outlet. 2. The cooker hood should be placed at a distance of cooking surface for best effect. See Pic 1. Pic 1 3. After determining the installation height, drill 7φ8 holes on a suitable place and then insert the attached plastic expansion pipes into the hole.
Page 8
screws. The fixed position of the duct cover fixing bracket is the highest place of slide duct cover. See Pic 2. 4. Fix the flexible tube duct on the cooker hood. See Pic 3. 5. Put the slide duct cover into the duct cover, and be sure that the slide duct cover can be adjusted the height in it freely.
Page 9
8. Put on the magnetic ring rubber sleeve. See Pic 7. 9. Hang the oil guide plate on two U-shaped hooks. See Pic 8. 10. Install the oil tray. See Pic 9.
Page 10
HINTS FOR EXHAUST DUCT INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: Keep flexible tube duct short and straight. Do not reduce the size or restrict the flexible tube duct. When using the flexible tube duct always install the pipe pulled taut to ...
Warning For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may affect the use of range hood.
the hood will be off automatically and the lamp will extinguish. If pressing “Timer” button, the hood will go in or go out “Timer” function. TROUBLESHOOTING Fault Possible Cause Solution Fan switch turned off. Select a fan switch position. Light on, but motor Fan switch failed.
MAINTENANCE AND CLEANING Caution: Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed. External surfaces are susceptible to scratches and ...
Page 14
is deposited on the grease filters. When the oil tray is about 2/3 full the oil tray needs to be cleaned. Take away the oil tray as the diagram below shows, by slightly pulling the oil tray forwards to release it from the Cooker hood. Discard the oil before cleaning/washing the oil.
REMOVING GREASE FILTER 1. Hold he oil tray with your hands and pull it back to remove the oil tray, pour out the oil and clean the oil tray. 2. Open the rectifier panel (note that the oil tray must be removed before opening the rectifier panel, otherwise it will cause oil stains in the in the oil tray pour out), remove the screws that fix the filter and remove the filter.
LIST OF INCLUDED ITMES Items name Drawing Qty. Main unit Rectifier panel Oil tray Duct cover Slide duct cover Duct cover fixing bracket Hanging bracket Plastic expansion pipe Wood Screw(ST4x40mm) Wood Screw(ST4x30mm) Screw(ST4X8mm) V-flap Magnetic ring rubber sleeve...
CIRCUIT DIAGRAM INFORMATION FOR LAMP ILCOS D code for this lamp is: DSR-1.5/65-S-64 - LED modules - round lamp - Max wattage: 2x1.5 W - Voltage range: DC 12V - Dimensions: SPECIFICATION Frequency Power Air flow Sound Rated Speed consumption (W) (m³/h) (dB)
