OPERATION MANUAL
English
2~12
Safety Instructions ................................................................................................ 2, 3
Name of Parts .......................................................................................................... 4
Operating the Range Hood ...................................................................................... 5
How to Use ............................................................................................................... 5
Care and Maintenance ............................................................................................. 6
Disassembling ..................................................................................................... 7
Cleaning .............................................................................................................. 7
Re-assembling .................................................................................................... 8
Replacing the Light Bulb ..................................................................................... 8
Requesting Service .................................................................................................. 9
Prior to Requesting Service ................................................................................ 9
Inspection Label .................................................................................................. 9
Specifications ......................................................................................................... 10
Circuit Diagram ...................................................................................................... 10
Parts List ................................................................................................................ 11
Limited Product Warranty ....................................................................................... 12
READ AND SAVE THESE INSTRUCTIONS.
Keep this manual in a convenient place for future reference.
Range Hood
MODEL:
FSR-30/FSR-36
FES-30/FES-36
Français
13~24
TABLE OF CONTENTS
FUJI INDUSTRIAL CO., LTD.
Made in Japan
Español
25~36

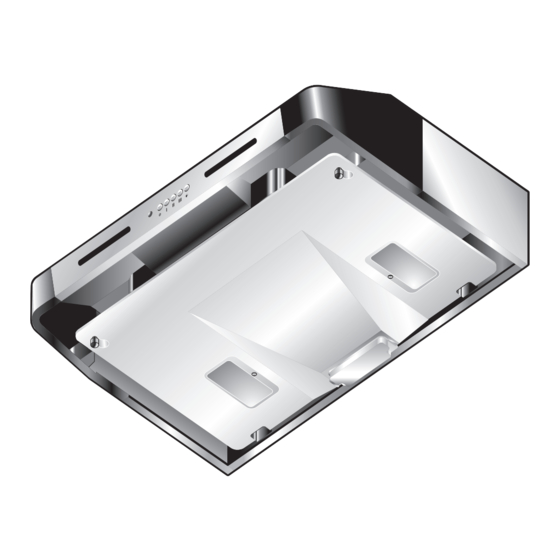

Illustration: FSR-30/FSR-36
嶄 猟
37~48
1U02 2281
*1U022281*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fujioh FSR-30
Summary of Contents for Fujioh FSR-30
-
Page 1: Table Of Contents
Français Español 嶄 猟 2~12 13~24 25~36 37~48 Illustration: FSR-30/FSR-36 TABLE OF CONTENTS Safety Instructions ....................2, 3 Name of Parts ......................4 Operating the Range Hood ..................5 How to Use ....................... 5 Care and Maintenance ..................... 6 Disassembling ..................... 7 Cleaning ...................... -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Before installation and operation, read these instructions carefully and use this product only in the manner described by the manufacturer in the operation manual. The signal words shown below are used to alert you to potential personal injury and property damage hazards. There are three hazard classifications based on potentially dangerous situations. - Page 3 CAUTION 1. For general ventilating use only. Do not use to exhaust hazardous or explosive material and vapors. 2. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls, ceilings or into attics, crawl spaces or garages. 3.
-
Page 4: Name Of Parts
Name of parts Filter FSR-30/FSR-36 Body Switch Lamp box Fan case cover Oil tray Rectifier panel Lamp cover FES-30/FES-36 < Control Switch Buttons > pilot lamp ..Lights while the FAN is in motion OFF Button ..Stop FAN operation LIGHT Button ..Turn ON/OFF lights... -
Page 5: Operating The Range Hood
Operating the Range Hood The range hood has five control switch buttons and one pilot lamp on its front panel. Push one of the switches (Low, Medium, or High) according to your cooking need. The fan will start rotating. To stop the fan, just push the OFF button. Push the LIGHT button if you want to turn the light on. -
Page 6: Care And Maintenance
Care and maintenance Clean the range hood often (especially, clean the filter/s once a month) as it becomes dirty, function may deteriorate if it’s left unclean. For a family size of 4 to 5 people and cooking twice a day, clean the filter once every two weeks to avoid grease build-up, which is difficult to clean. -
Page 7: Disassembling
Disassembling Oil tray Hold the oil tray at its both ends and slide forward. NOTE: The tray may be filled with oil, so be careful when removing it. Rectifier panel Mounting screw Loosen the mounting screws attaching the rectifier panel, pull the rectifier panel forward slightly to free the mounting screws from the mounting guide holes and the body catches. -
Page 8: Re-Assembling
Range hood body Wipe the range hood body off with a cloth immersed in a mild detergent. Then, wipe off moisture thoroughly with a dry cloth. Re-assembling Re-assembly will be done by following the disassembly procedure in reverse order described in Item “disassembling”. -
Page 9: Requesting Service
Telephone: 1-888-547-9880 After Service Division Telephone: 1-866-FUJI IND (1-866-385-4463) a. Product --------------------------- Range Hood b. Model Number ----------------- FSR-30/FSR-36/FES-30/FES-36 c. Date of purchase d. What is the problem? e. Owner's address f. Owner's telephone number g. Suggested date for service person's visit... -
Page 10: Specifications
Power Consumption Air Flow (CFM) Air Flow (CFM) Sound Level Model Speed (Hz) (0 in wg) (0.1 in wg) (Sone) FSR-30/36 FES-30/36 In case of 3-¼"×10" Vertical Discharge Voltage Frequency Power Consumption Air Flow (CFM) Air Flow (CFM) Sound Level Model... -
Page 11: Parts List
Parts list FES type Component/Part Attachment Earth Wire Unit Corner Cap(R) Corner Cap(L) Switch Unit Fan Case Strain Relief Lamp Box Lamp Receptacle Mount(R) Lamp Receptacle Mount(L) Lamp Wire Unit Fan Guide(R) Fan Guide(L) Fan Guide(B) Switch Wire Cover Connector Wire Unit Capacitor Motor Fan Case Cover...
