Dell W5300 Workgroup Laser Printer User Manual

Dell™ workgroup laser printer w5300 user's guide
Hide thumbs

Advertisement

Table of Contents
Dell™ Workgroup Laser Printer W5300 User's
Guide
Click the links to the left for information on the features, options, and operation of your printer. For
information on other documentation included with your printer, see

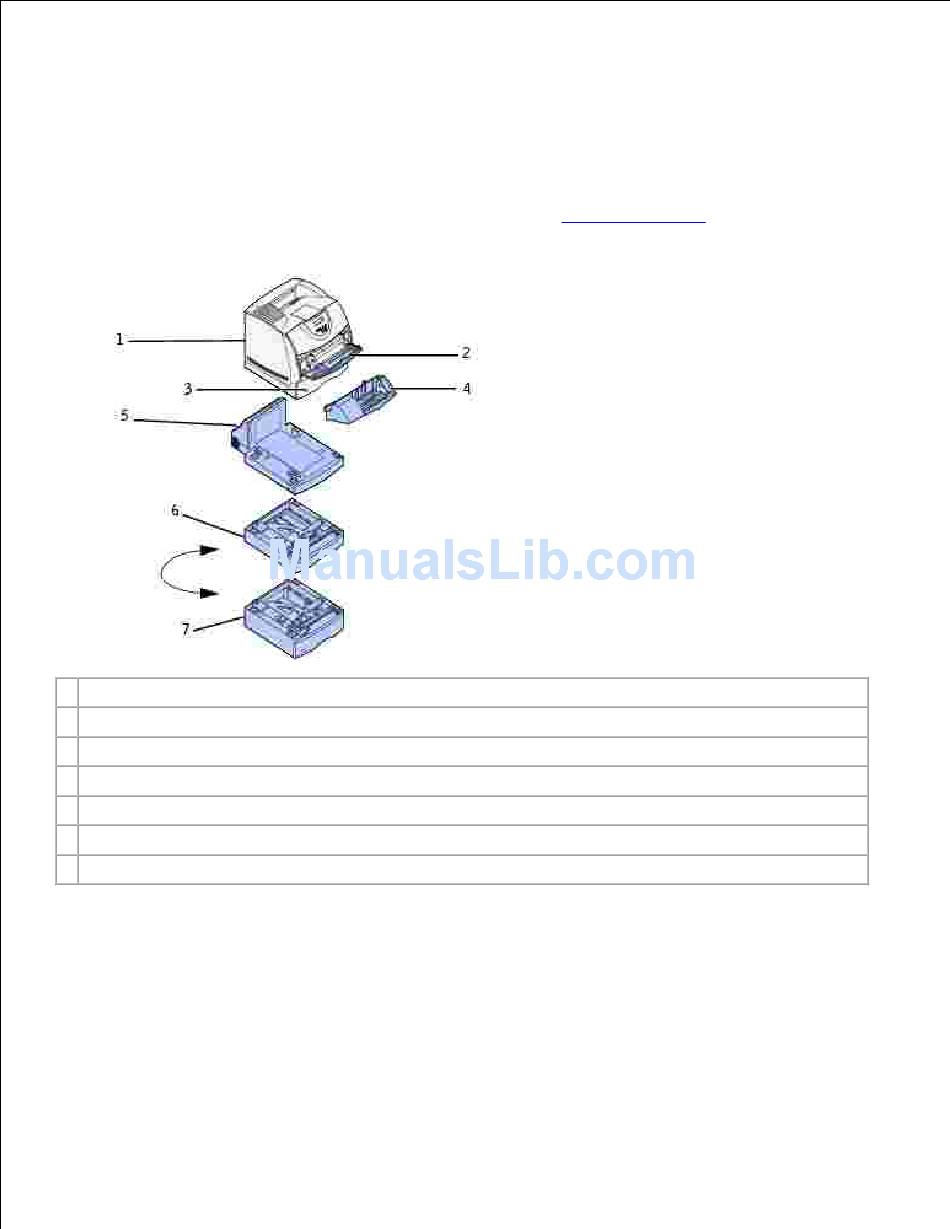

1 Printer
2 Multipurpose feeder
3 Standard 500-sheet tray
4 Optional envelope feeder
5 Optional duplex unit
6 Optional 250-sheet drawer with tray
7 Optional 500-sheet drawer with tray
To order replacement toner cartridges or supplies from Dell:
1.
Double-click the icon on your desktop.
2.
Finding
information.
