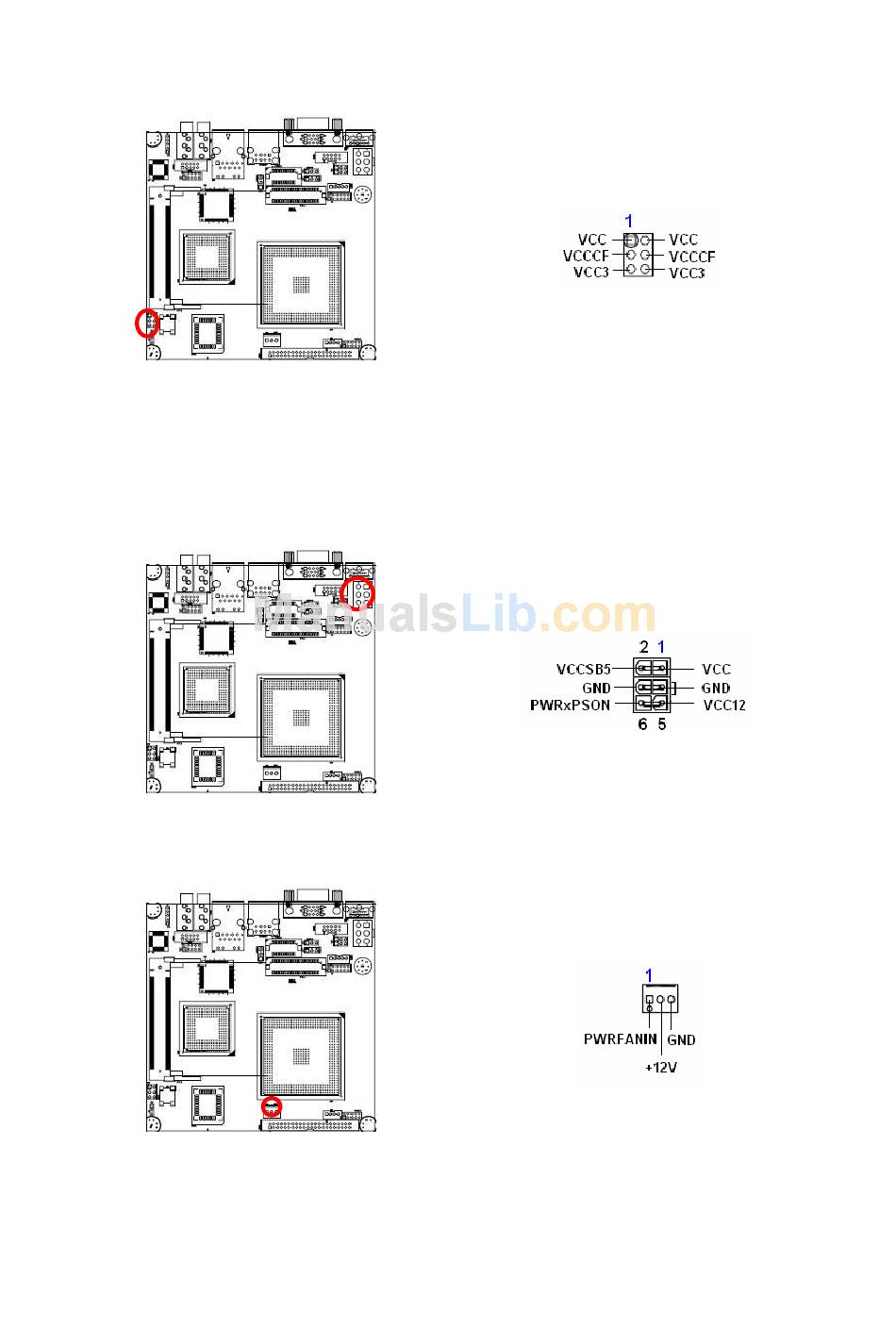

CF Power Connector (CFPJ1)

1.6.3

ATX Power Connector (CN5)

This connector is for ATX power supply plugs. The power supply plugs are designed to fit
this connector in only one orientation. Find the proper orientation and push down firmly until
the connector completely fit.
1.6.4

Power Fan Connector (CN7)
