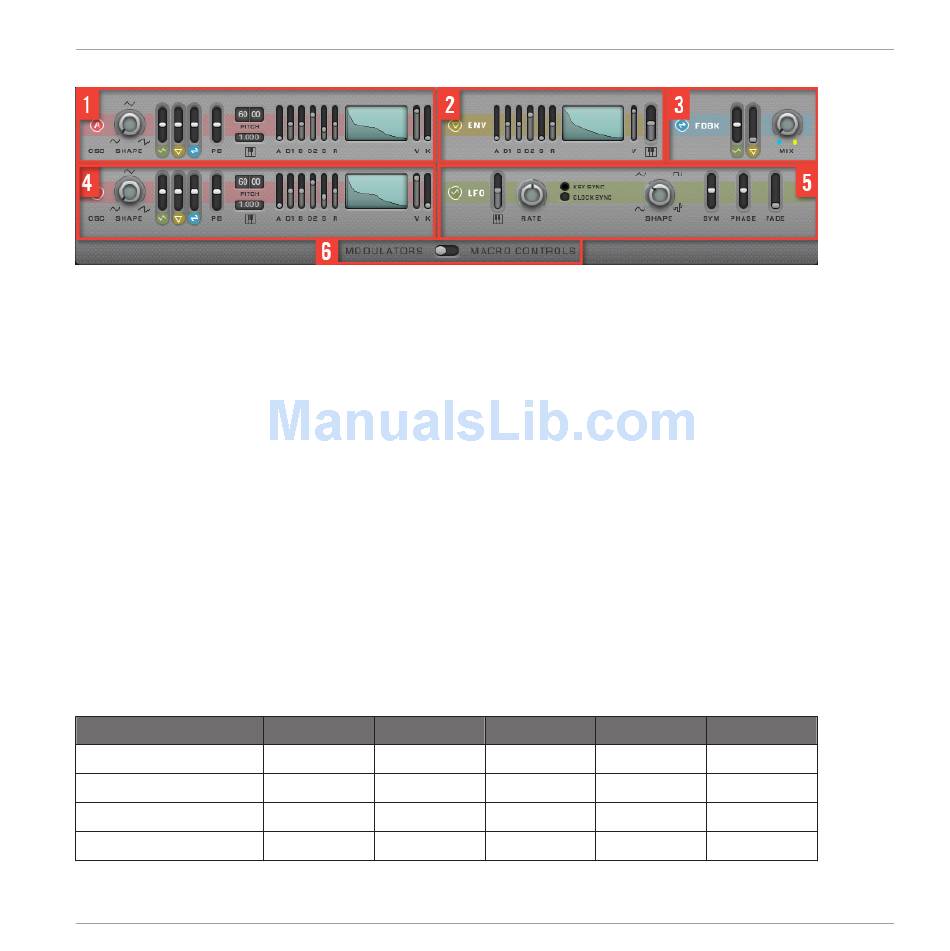

View B — Modulators section
[1] Oscillator A: One of two identical oscillators that provide modulation for the sample reader
position including an ADBDSR envelope for its amplitude.
[2] ENV: This is the third ADBDSR envelope that can be used to modulate different targets.
[3] FDBK: Contains the parameters of the Feedback section.
[4] Oscillator B: The second of the two identical oscillators that provide modulation for the sam
ple reader position including an ADBDSR envelope for its amplitude.
[5] LFO: The LFO produces Sine, Triangle, Pulse and Random waveforms which can be used to
modulate various targets.
[6] Modulator / Macro Control Switch: The lower area of the B view can be switched to show the
MODULATORS
field containing the modulation sources or the
taining elements for assigning destinations and adjusting individual control amounts for the
four Macro Controls.
Modulators Table
There are five sources for modulation: Oscillator A, Oscillator B, LFO, Envelope and Feedback.
The table below shows how each modulator can affect parameters
Modulation targets:
Sample position
Osc. Pos. Amounts
Oscillator pitches
Oscillator phases
Osc A
Osc B
X
X
-
-
-
-
-
-
MACRO CONTROLS
LFO
Env
X
X
X
-
X
X
-
-
Overview of SKANNER Ensemble
Modulators Section
field con
Feedback
X
-
-
X
SKANNER - Manual - 41
