Simrad AP26 and AP27 Autopilots
Other documentation material that is provided with your system
includes a warranty card. This must be filled out by the
authorized dealer that performed the installation and mailed in to
activate the warranty.
1.3

System components

A basic autopilot system consists of the following units (refer to
Figure 1-1):
• AP26 Control Unit or AP27 Control Unit with accessories
• Autopilot Computer
• Rate compass
• Rudder Feedback Unit with transmission link
• Drive unit
The basic system can be expanded with multiple fixed and hand
held full function control units, hand held remote and steering
lever.
10
AUTOPILOT
COMPUTER
AP26
CONTROL
UNIT
REVERSIBLE
PUMP

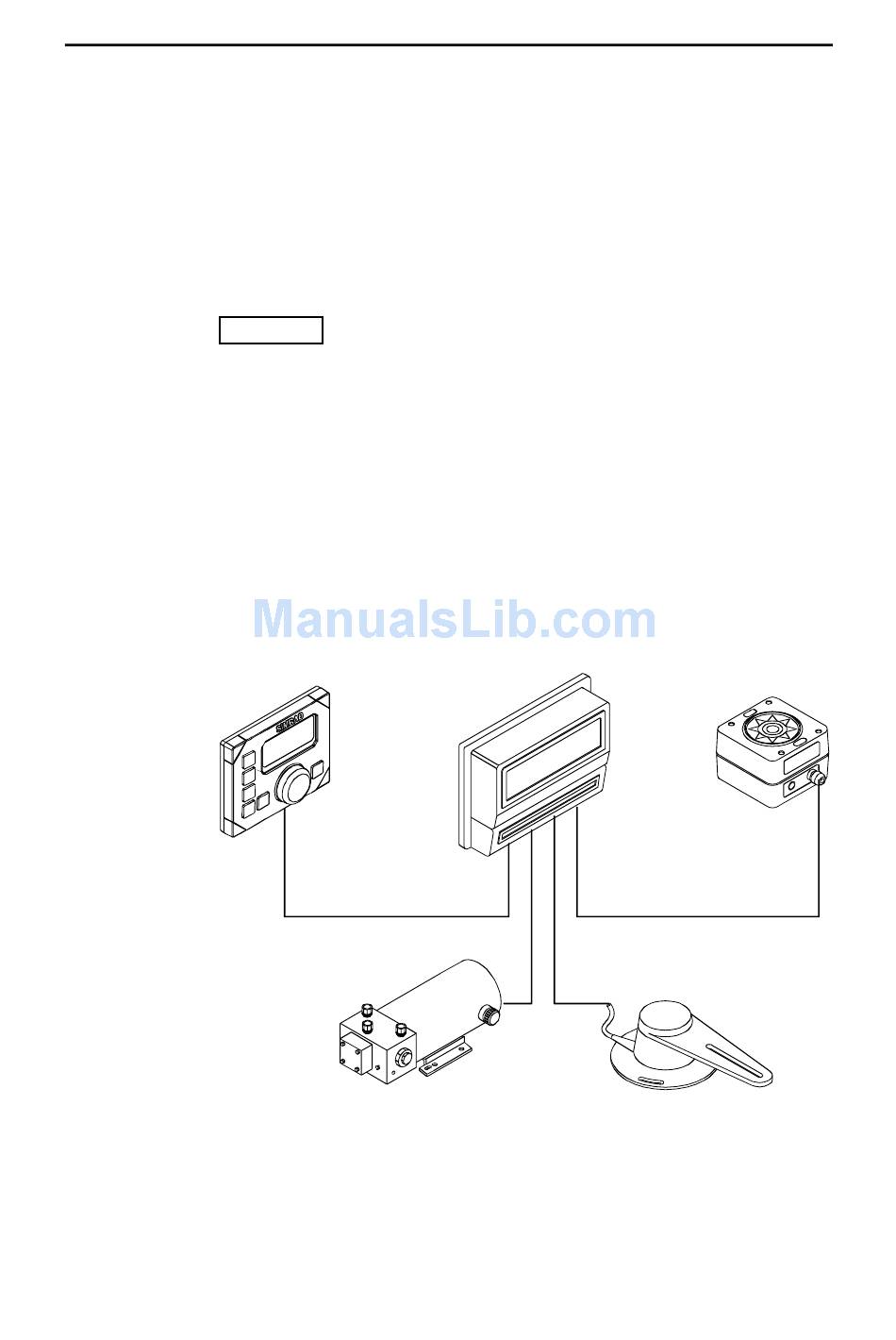

Figure 1-1 AP26 Basic system
RATE
COMPASS
RF300
RUDDER
FEDDBACK
20221586B
