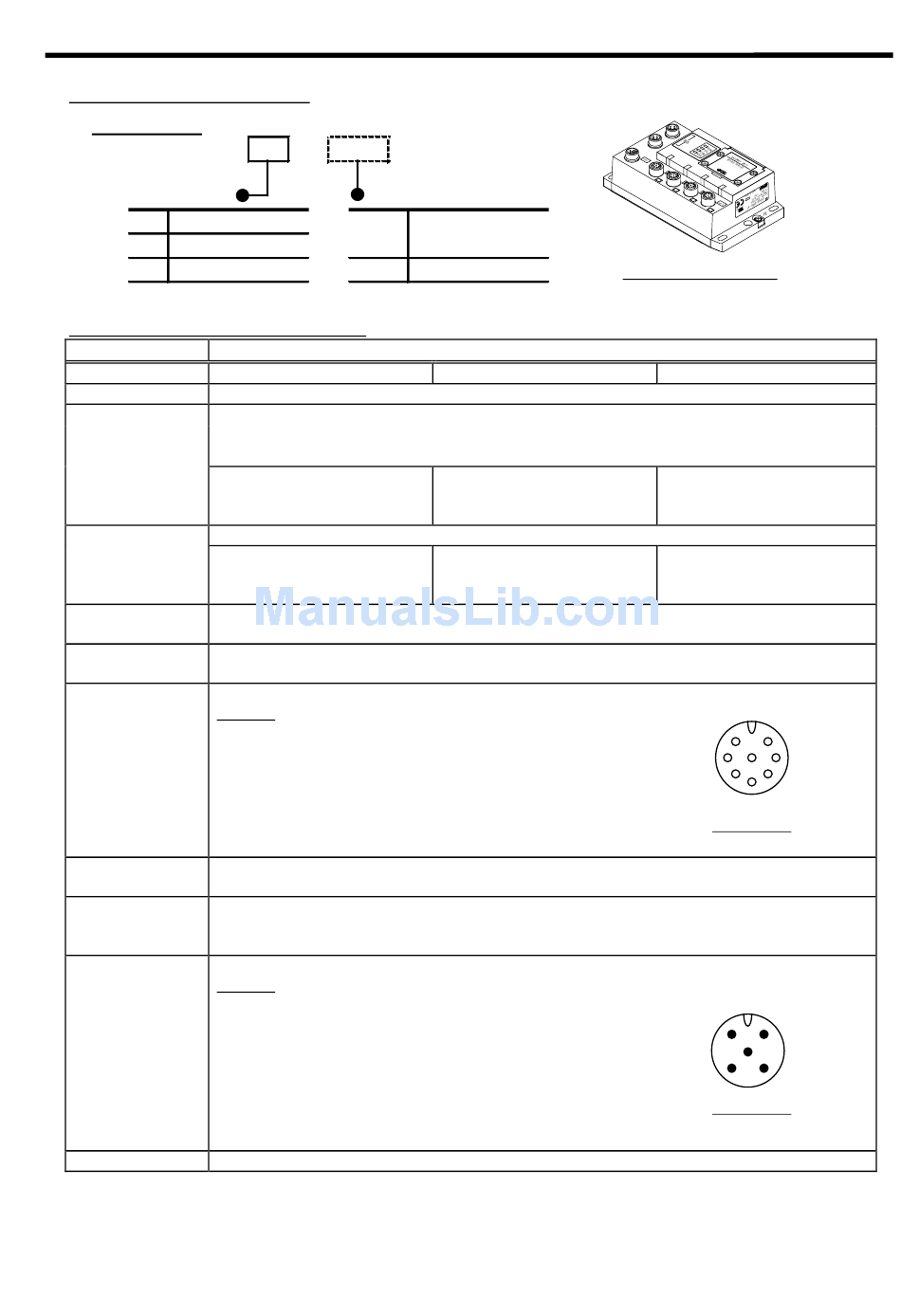

EX500 Serial System
3 -2. Gateway ( GW ) Unit
How to Order
E X 5 0 0 - G D N 1
Network communication
protocol
DN DeviceNet
PR PROFIBUS-DP
AB Remote I/O ( RIO )
Gateway ( GW ) Unit specification
Item
Models
Rated voltage
Power supply
voltage
Current
consumption
Input / Output
points
Input / Output
branches
Branch
connector
Length of branch
cable
Communication
form
Power
Supply
connector
Weight
GW Unit compatible
Nil
-X1
EX500 - GAB1 - X1
Input and control power supply : 24V DC ±10%
Solenoid valve power supply : 24V DC +10% / -5%
( Warning of voltage drop given lower than approx. 20V )
-
-
Maximum 64 inputs / Maximum 64 outputs
4 branches ( one branch 16 inputs / 16 outputs )
M12 connector ( 8 pin, socket )
Pin NO.
1. RD + 2. RD -
3. TD + 4. TD -
5. 24V DC ( for solenoid valve)
6. 0V DC ( for solenoid valve)
7. 24V DC ( for power source )
8. 0V DC ( for power source )
Less than 5m ( Less than 10m Max. Length )
Communication protocol : SMC original protocol
Communication speed : 750 k bit / sec. ( DeviceNet, PROFIBUS-DP )
M12 connector ( 5 pin, plug )
Pin NO.
1. 0V ( for solenoid valve)
2. 24V DC + 10% / - 5% 3A Max.
( for solenoid valve)
3. 0V ( for power source ( input and control ) )
4. 24V DC±10% 3A Max.
( for power source ( input and control ) )
5. PE ( Protective earth )
DeviceNet
PROFIBUS-DP
Remote I/O ( RIO )
Specification
EX500 - GDN1
24V DC
Communication power
supply for DeviceNet :
11V DC to 25V DC
200mA or less ( only GW Unit )
Communication power
supply for DeviceNet :
50mA or less
: 500 k bit / sec. ( Remote I/O (RIO))
470g
- 8 -
EX## - OME0008
Gateway ( GW ) Unit
EX500 - GPR1
-
-
1
2
8
7
6
4
5
For GW Unit
1
2
5
3
4
For GW Unit
.
3
