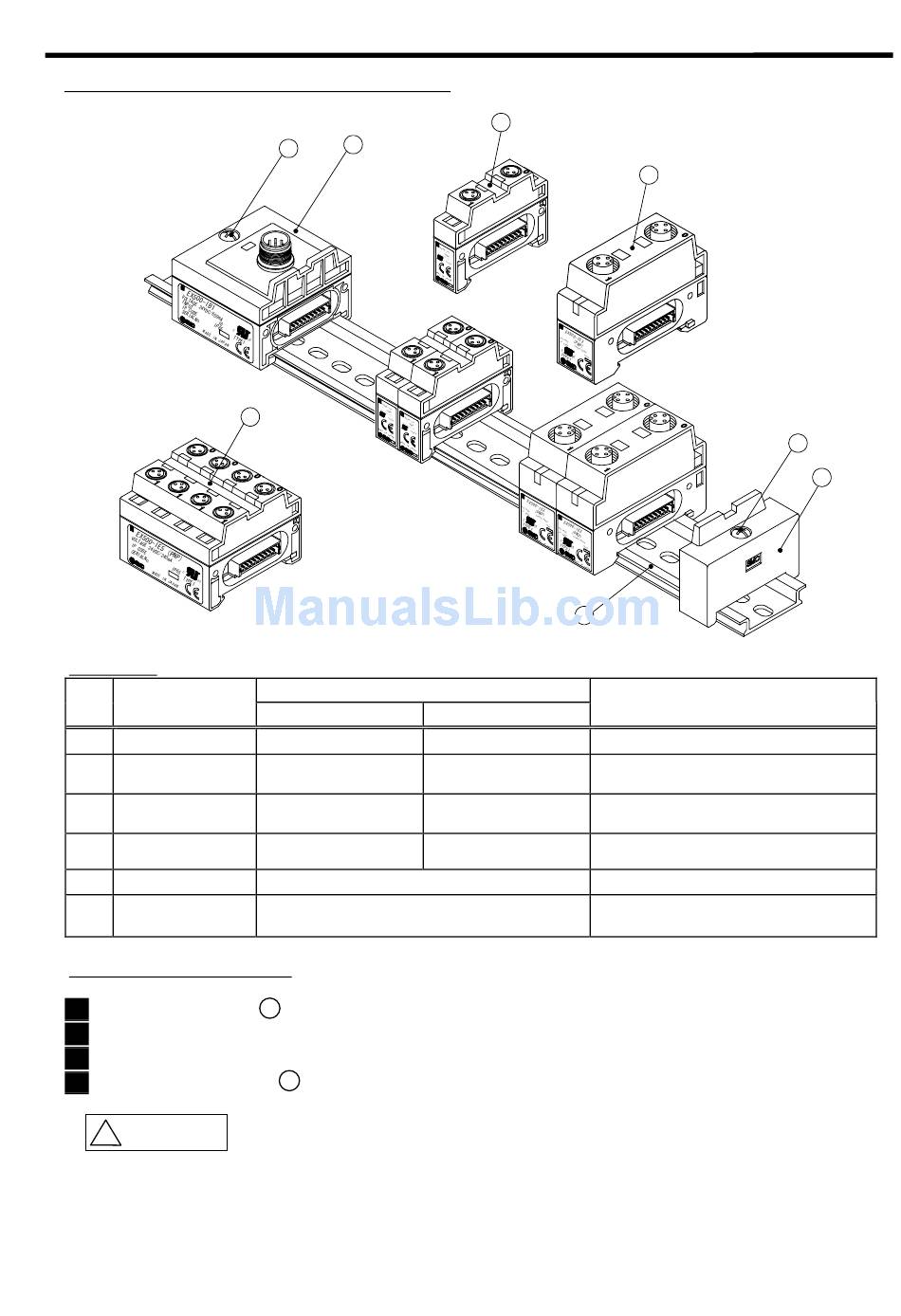

7 -3. Exploded view / Input Unit Manifold

・ ・ ・ ・ Parts list
NO. Parts name
① Input Unit
Input Block
②
( M8 connector )
Input Block
③
( M12 connector )
8 point unit Input Block
④
( M8 connector )
⑤ End Block
⑥ DIN rail
・ ・ ・ ・ Addition of the Input Block
Loose two screws a which are holding the End Block and the Input Unit until they rotate freely.
1
Add a new Input Block on a desired location on DIN rail.
2
Press the whole assembly together to make a good connection between Input Blocks.
3
Tight the two screws a to secure the assembly on DIN rail connected together.
4
！ ！ ！ ！
CAUTION
Tight the screws with specified tightening torque. ( Tightening torque : 0.6 N・m )
1
a
4
Parts number
For standard
EX500 - IB1
EX500 - IE□
EX500 - IE□
EX500 - IE□
EX500 - EB1
VZ1000 - 11 - 1 - □
2
6
For RIO
EX500 - IB1 -X1
EX500 - IE□ -X1 PNP ... □: 1, NPN ... □: 2
EX500 - IE□ -X1 PNP ... □: 3, NPN ... □: 4
EX500 - IE□ -X1 PNP ... □: 5, NPN ... □: 6
□ : Length
( Refer to the Valve Catalogues )
