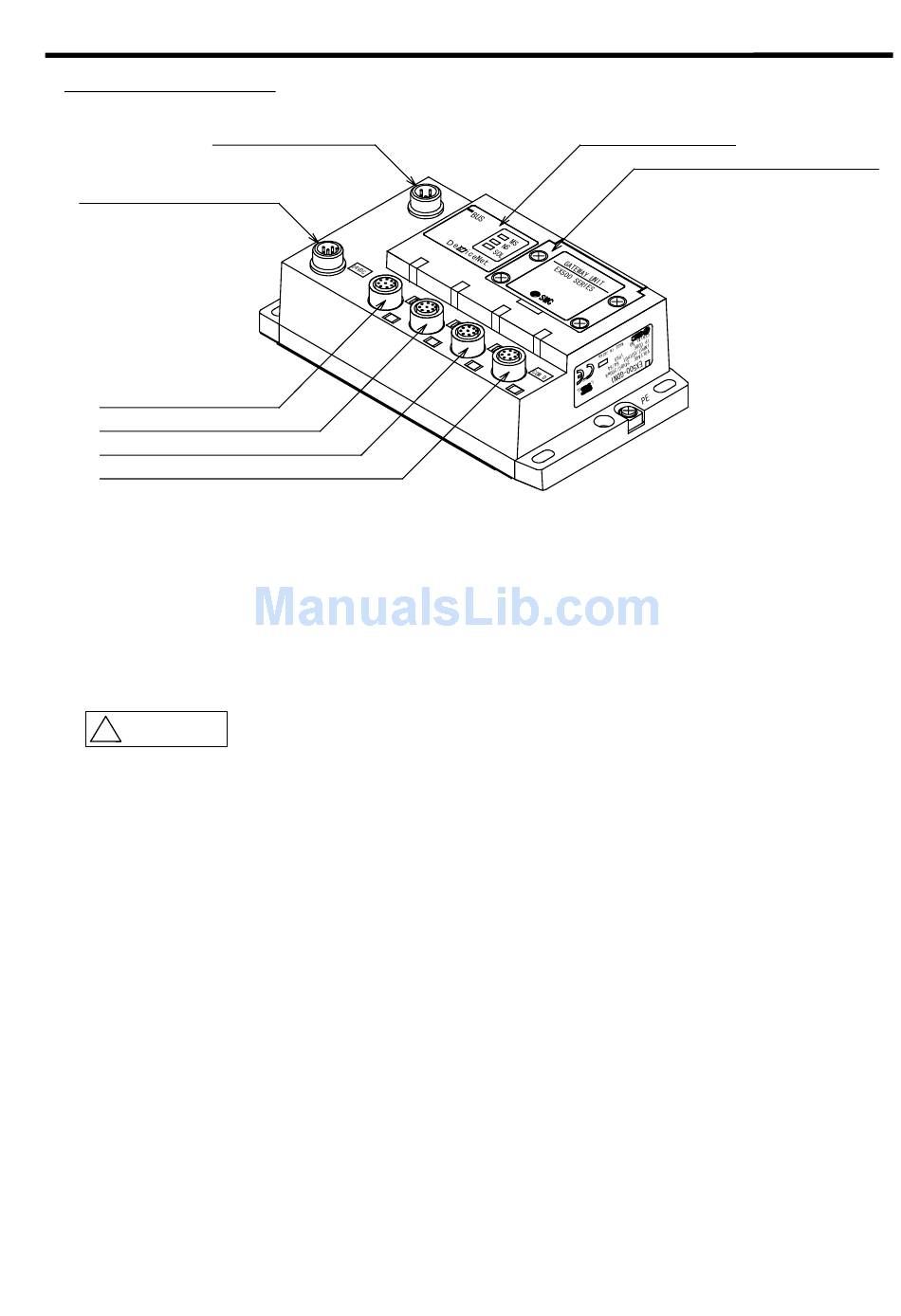

5 -2. Parts description

Power supply connector

Communication port A

Communication port B

Communication port C

Communication port D

a. Fieldbus connector

b. Power supply connector

c. Communication port

d. LED display window

e. Station switch protection cover

！！！！

CAUTION

The station switch protection cover should be tightened with specified tightening torque

after it is opened. ( Tightening torque : 0.6 N・m )

Fieldbus connector

(DeviceNet)

: Port for PLC connection.

: The power source for Input Unit, SI Unit, and control and

for the solenoid valve is connected through this port.

: Input Unit Manifold or the Manifold Valve with

the SI Unit is connected through this port.

: The status of power source supply and the PLC

communication is displayed here. ( Refer to section 5 -3 )

: Rotary switches for the operation setting are inside.

( Refer to section 5 -4 )

- 22 -

LED display window

Station switch protection cover

EX## - OME0008
