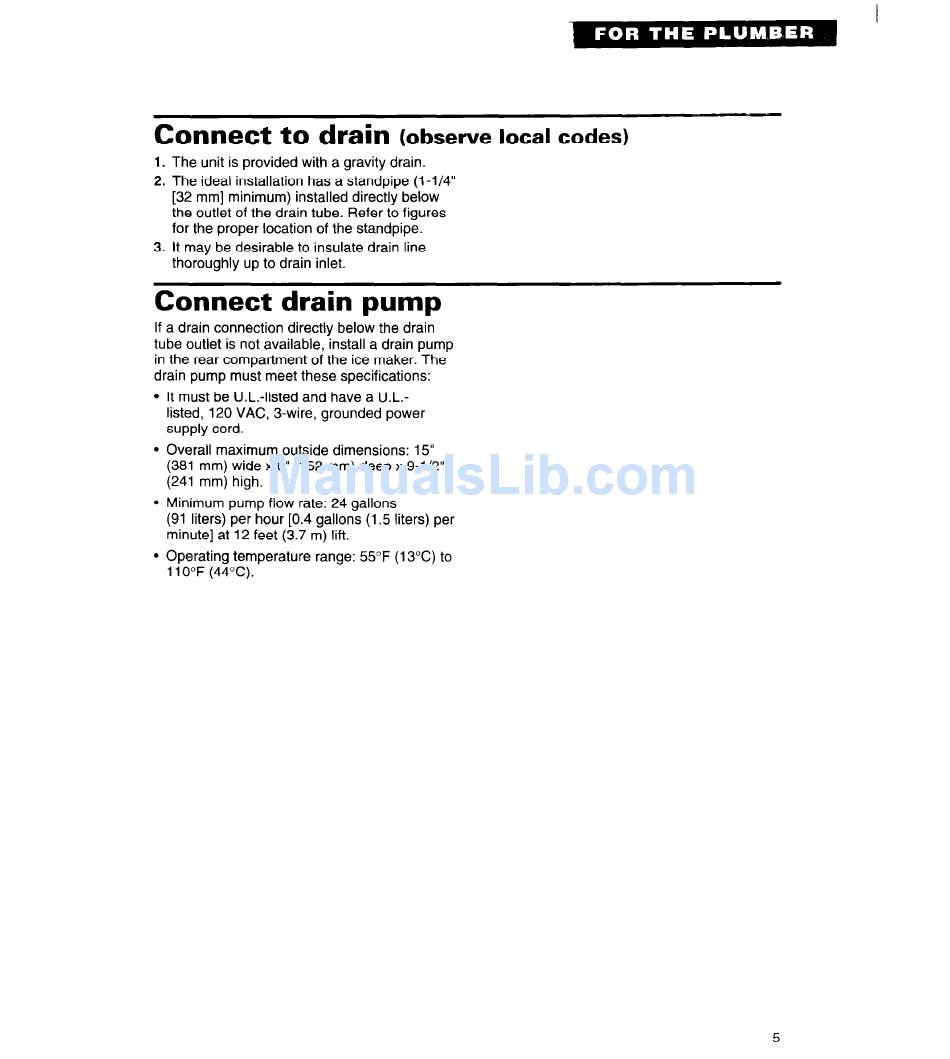

Connect
to drain
(observe
local
codes)
1. The unit is provided with a gravity drain.
2. The ideal installation has a standpipe (1 -l/4"
[32 mm] minimum) installed directly below
the outlet of the drain tube. Refer to figures
for the proper location of the standpipe.
3. It may be desirable to insulate drain line
thoroughly up to drain inlet.
Connect
drain
pump
If a drain connection directly below the drain
tube outlet is not available, install a drain pump
in the rear compartment of the ice maker. The
drain pump must meet these specifications:
l
It must be U.L.-listed and have a U.L.-
listed, 120 VAC, 3-wire, grounded power
supply cord.
l
Overall maximum outside dimensions: 15"
(381 mm) wide x 6" (152 mm) deep x 9-l/2"
(241 mm) high.
l
Minimum pump flow rate: 24 gallons
(91 liters) per hour [0.4 gallons (1.5 liters) per
minute] at 12 feet (3.7 m) lift.
l
Operating temperature range: 55°F (13°C) to
110°F (44°C).
5
