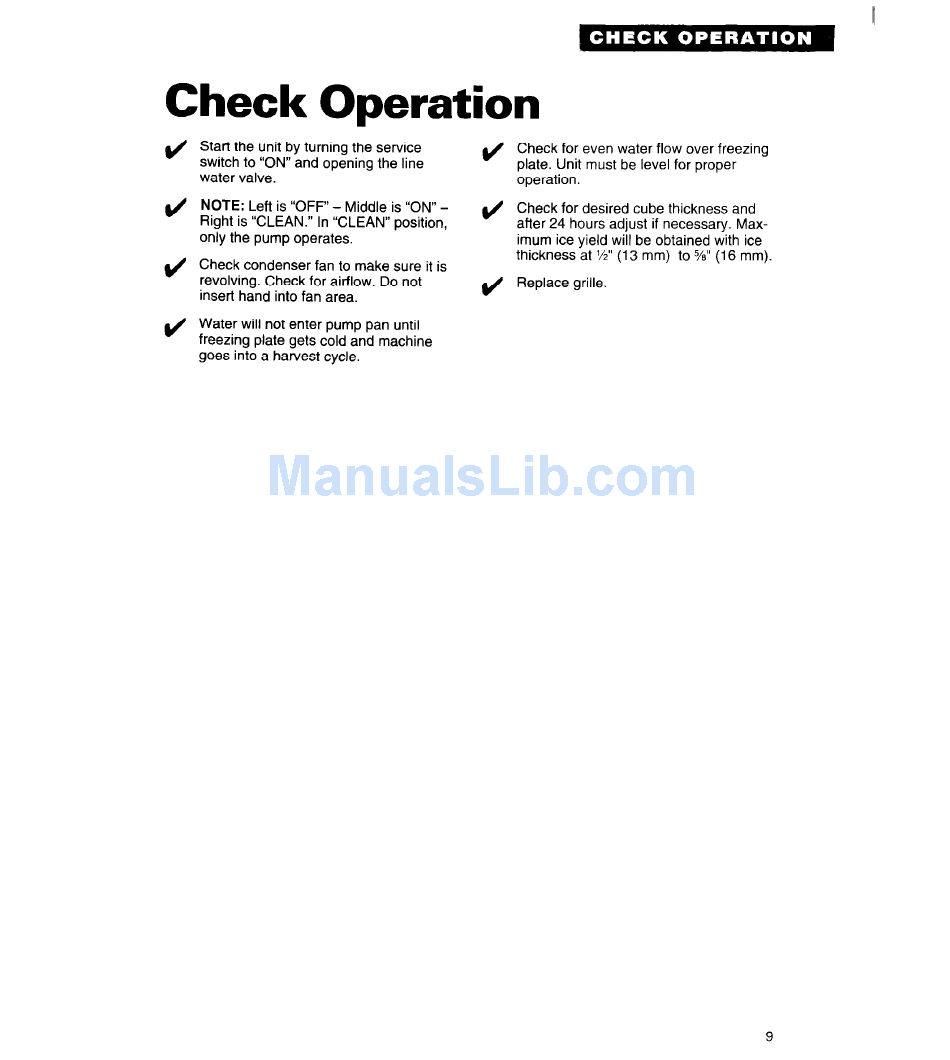

Check Operation
Start the unit by turning the service
switch to "ON" and opening the line
d
water valve.
NOTE: Left is "OFF" - Middle is "ON" -
Right is "CLEAN." In "CLEAN" position,
only the pump operates.
Check condenser fan to make sure it is
revolving. Check for airflow. Do not
insert hand into fan area.
d
Water will not enter pump pan until
freezing plate gets cold and machine
goes into a harvest cycle.
Check for even water flow over freezing
plate. Unit must be level for proper
operation.
Check for desired cube thickness and
after 24 hours adjust if necessary. Max-
imum ice yield will be obtained with ice
thickness at %" (13 mm) to %" (16 mm).
Replace grille.
9
