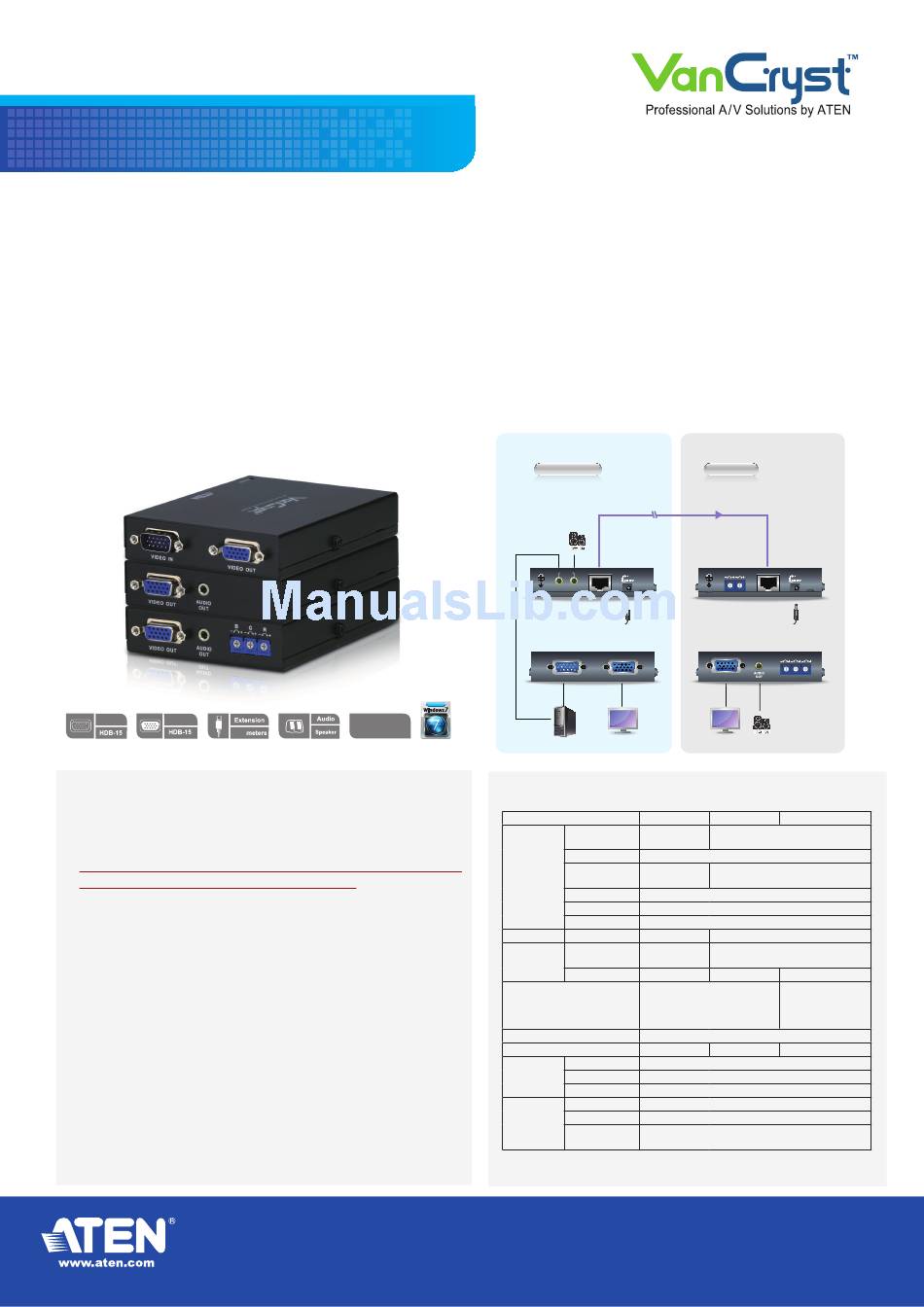

ATEN VE170 Specification

VE170
A/V Over Cat 5 Extender
The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170R or VE170RQ Receiver unit,
is a cost-effective and effi cient solution for sending and receiving high quality audio and video content. Connect the
two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the Transmitter's input
source. The VE170R and VE170RQ Receiver units can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5
Splitter as a transmitter.
The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals
and corrects color phase and timing errors that occur over large distances.
The VE170 A/V Over Cat 5 Extender is ideal for any professional A/V installation that requires multimedia content to
delivered over large distances.
Compatible Transmitter Units:
VE170T A/V Over Cat 5 Transmitter,
VS1204T A/V Over Cat 5 Transmitter,
VS1208T A/V Over Cat 5 Transmitter
Video In Video Out
300
Features
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
• Uses Cat 5e cable to connect the transmitter and receiver uints
• Supports one local and one remote display
• Long distance transmission up to 300m
• Deskew Function (VE170RQ) – allows you to synchronize the time
delay of RGB signals to compensate for distance
• Superior video quality –
VE170R: 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);
1024x768@ 60Hz (300 m)
VE170RQ: 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
• Audio enabled (mono)
• Adjustable gain/compensation control
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• Complies with VESA FDMI mount standard
Headquarters
ATEN International Co., Ltd.
3F, No.125, Sec. 2, Datung Rd. Sijhih City, Taipei 221, Taiwan
Tel: 886-2-8692-6789
© Copyright 2010 ATEN® International Co., Ltd. All brand names and trademarks are the registered property of their respective owners.
Setup
Supports Supports
Supports
ATEN
Deskew
(VE170RQ)
Fax: 886-2-8692-6767 E-mail: online@aten.com.tw
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Transmitter
Cat 5e Cable (300m)
VE170T
AUDIO LINE OUT
IN OUT
VIDEO N I VIDEO OUT
Specifi cations
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Function VE170T
1 x HDB-15
Video In
Male (Blue)
Video Out
1 x Audio Jack
Audio In
Connectors
Female (Green)
Audio Out
Unit to Unit
Power
LEDs Power N/A
Manual Gain
N/A
Control
Switch
RGB Tuner N/A
1920x1200 @ 60Hz (30 m)
Video 1600x1200 @ 60Hz (150 m)
1024x768@ 60Hz (300 m)
Cable Distance
Power Consumption DC5.3V, 0.9W DC5.3V, 1.11W
Operating Temp.
Environment Storage Temp.
Humidity
Housing
Physical Weight
Properties
Dimensions
(L x W x H)
* Product specifi cations and appearance are subject to change without notice.
Receiver
VE170RQ
LINE IN
GAIN COMP
B G R
VIDEO OUT
VE170R VE170RQ
N/A
1 x HDB-15 Female (Blue)
N/A
1 x Audio Jack Female (Green)
1 x RJ-45 Female
1 x DC Jack
1 (Green)
2 x Knob
N/A 3 x Knob
1920x1200 @ 60Hz
(150 m)
1280x1024 @ 60Hz
(300 m)
300 m
DC5.3V, 1.43W
0–50°C
-20–60°C
0–80% RH, Non-condensing
Metal
0.25 kg
11.95 x 8.56 x 2.26 cm
2010. Version 1.0
