Summary of Contents for ATEN VE1812

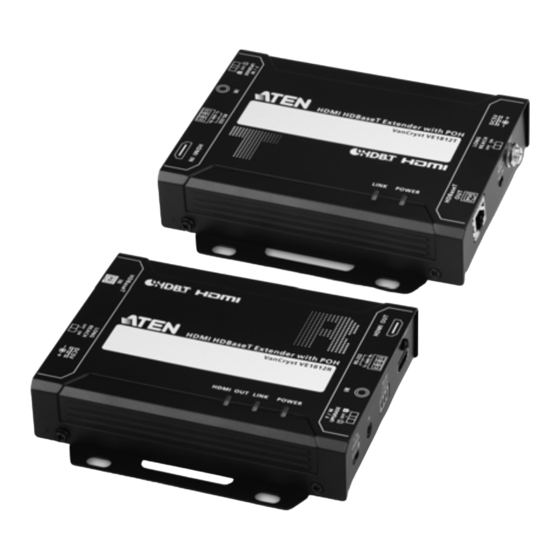

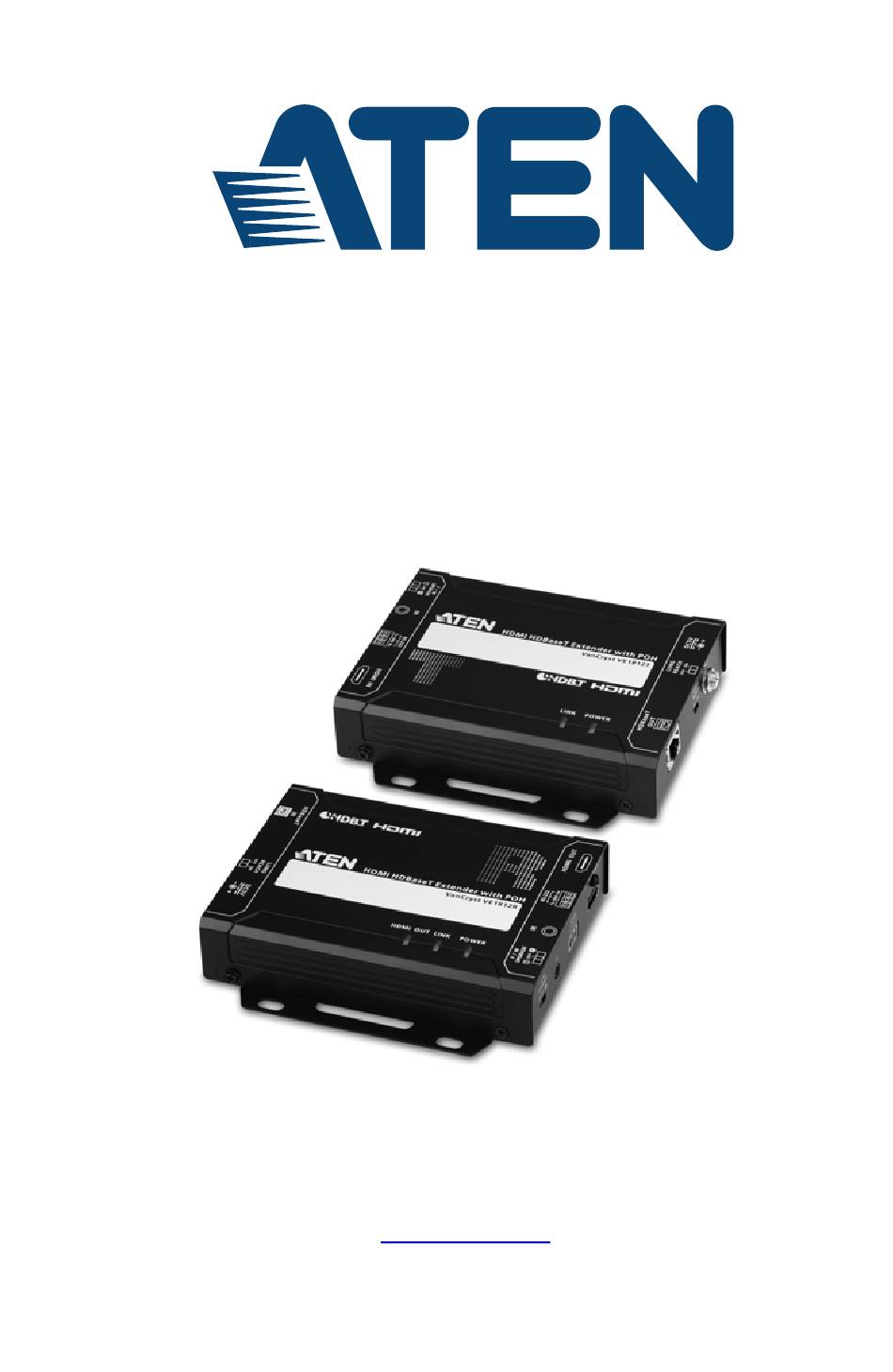

- Page 1 HDMI HDBaseT Extender with PoH VE1812 User Manual www.aten.com...
-
Page 2: Rohs
VE1812 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
VE1812 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2017 ATEN® International Co., Ltd. Manual Date: 2017-08-16 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
VE1812 User Manual Contents EMC Information..................ii RoHS ......................ii User Information..................iii Package Contents..................iv About this Manual..................vi Conventions ....................vii Product Information ................... vii 1. Introduction Overview ........... 1 Features . -
Page 6: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the VE1812 system. Its purpose, features and benefits are presented, and its front and back panel components are described. -
Page 7: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 8: Introduction
RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the VE1812 receiver while also granting access to the HDMI display device from the VE1812 transmitter unit. IR signals can also be extended in both directions. The VE1812 features Power over HDBaseT (PoH) which can send power over Cat 5e / 6 / 6a cable without an additional power supply. -
Page 9: Features
VE1812 User Manual Features HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable Long Reach Mode – extends HDMI signal up to 150m @ 1080p HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology ... -
Page 10: Requirements
A source device with an HDMI port Cables To connect the VE1812 transmitter and receiver units, we recommend using cables of Cat 5e / 6 / 6a to ensure video quality. For better video quality, we strongly suggest using ATEN 2L-2910 Low Skew Cable. -
Page 11: Components
Connect an IR Receiver to the IR port on the VE1812R. RS-232 Port You can connect RS-232 serial devices or peripherals to the VE1812, such as touchscreens and bar code scanners. HDMI Input Port Connect the HDMI Input Port on the VE1812T to the HDMI Output Port on the video source device using an HDMI cable. -
Page 12: Receiver Front And Rear View
Connect an IR Transmitter to the IR port on the VE1812T. RS-232 Port You can connect the RS-232 main controller to the VE1812, such as the PC or Control system. HDMI Output Port Connect the HDMI display to this port. HDBaseT Input Port The Cat 5e / 6 / 6a cable that connects to the Transmitter Unit plugs in here. -
Page 13: Led Display
VE1812 User Manual LED Display The VE1812 Transmitter and Receiver units have top panel LEDs to indicate their operating status, as shown in the table below: VE1812 Transmitter VE1812 Receiver No. LED Indication HDMI Out* (Orange) Light is static when HDMI display is normal with HDCP key. -
Page 14: Hardware Setup
Hardware Setup 1. Please review important safety information regarding the placement of this device in Safety Instructions, page 10. 2. Make sure not to power on the VE1812 devices until all the necessary hardware is connected. Setting Up Setting up the VE1812 USB DVI KVMP™ Switch system is simply a matter of plugging in the cables. -
Page 15: Installation Diagram
VE1812 User Manual Installation Diagram VE1812R VE1812T... -
Page 16: Rs-232 Channel Transmission
Chapter 2. Hardware Setup RS-232 Channel Transmission You can connect RS-232 serial devices/peripherals to the VE1812, such as touchscreens and bar code scanners. The RS-232 signal transmission flow is shown in the following example: From a source device, the RS-232 signal is transmitted (Tx) to the VE1812T receiving (Rx) unit;... -
Page 17: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 18 VE1812 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 19: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext. 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 20: Specifications
VE1812 User Manual Specifications Function VE1812R VE1812T Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Max. Distance 1.8 m Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. -
Page 21: Limited Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
