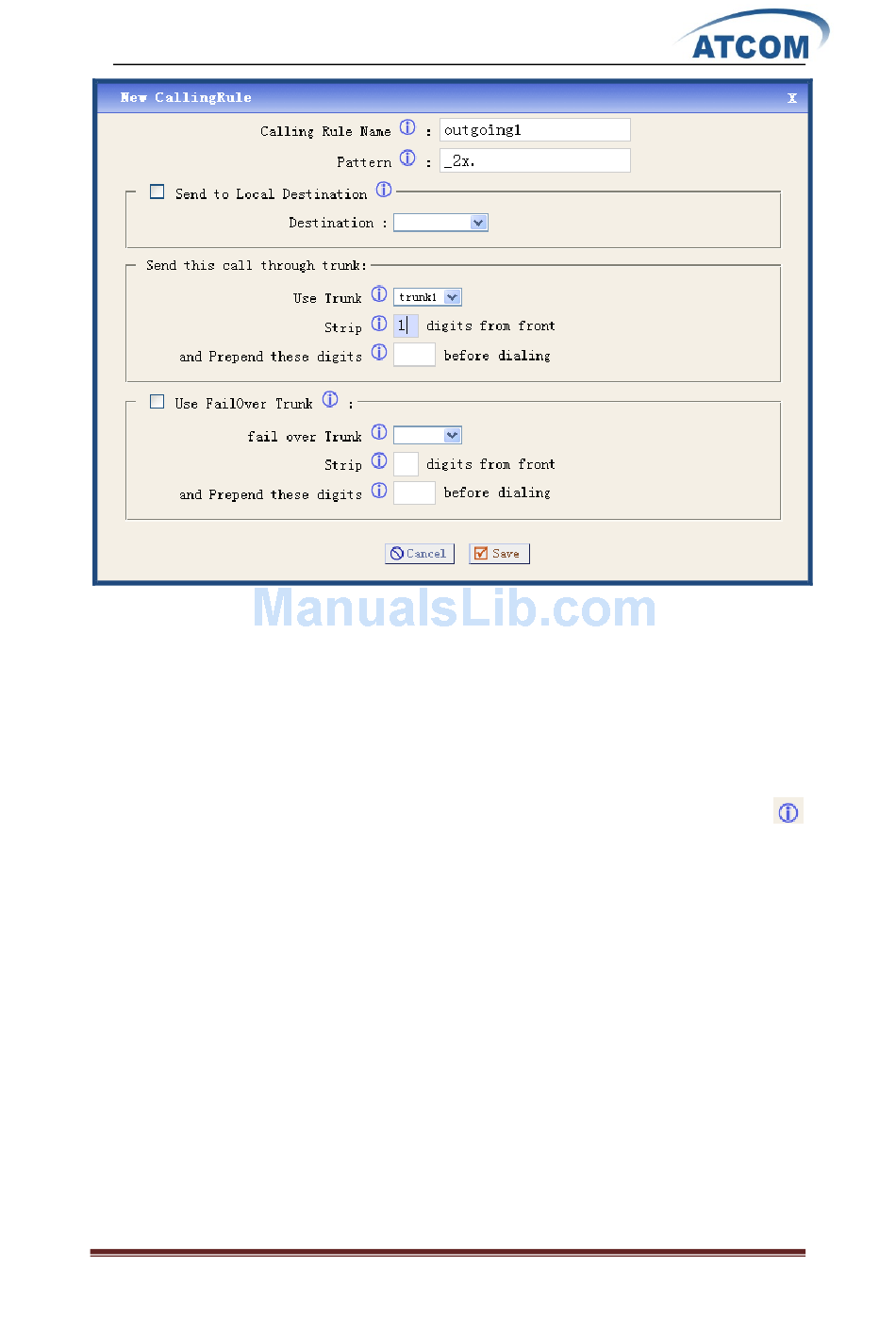

The important parameters I configured are below:

Calling Rule Name: a unique label to help you identify the outgoing calling rule when listed in

dial plans, I use outgoing1 as the calling rule name here.

Pattern: it acts like a filter for marching numbers you dialed, here I set up _2X., it means any

number you dial out with prefix 2 will use this outgoing call rule.

Use Trunk: select the trunk for outgoing calling rule, here I select the trunk1 I set up before.

Strip: I press 1 here, it will strip the first digit of the number string you dialed.

You can get the detail information about every single parameter by putting your cursor on the

label.

At last, please click on Save button, and click on Apply Changes button in up right corner of the

main page.

The way of outgoing calling rules works:

Every time you dial a number, asterisk will do the following in strict order:

• Examine the number you dialed.

• Compare the number with the pattern that you have defined in your first outgoing rule and if

matches, it will initiate the call using that trunk. If it does not match, it will compare the

number with the pattern that you have defined in the second outgoing rule and so on.

• Pass the number to the appropriate trunk to make the call.

3.5 Dial Plans

A DialPlan is a set of Calling Rules that can be assigned to one or more users. Please select the

www.atcom.cn
