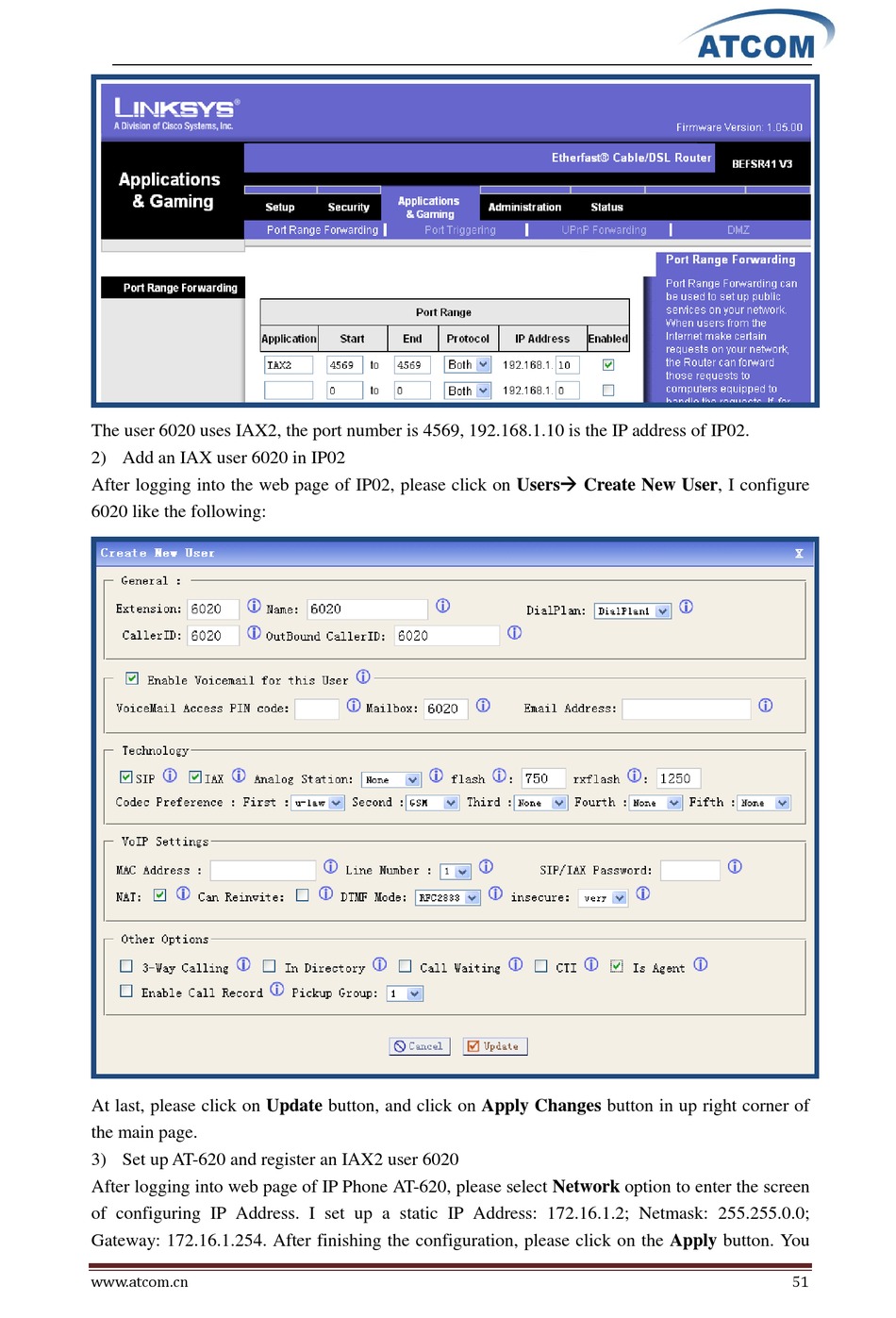

ATCOM IPPBX IP02 Product Manual page 52

The user 6020 uses IAX2, the port number is 4569, 192.168.1.10 is the IP address of IP02.
2) Add an IAX user 6020 in IP02
After logging into the web page of IP02, please click on Users Create New User, I configure
6020 like the following:
At last, please click on Update button, and click on Apply Changes button in up right corner of
the main page.
3) Set up AT-620 and register an IAX2 user 6020
After logging into web page of IP Phone AT-620, please select Network option to enter the screen
of configuring IP Address. I set up a static IP Address: 172.16.1.2; Netmask: 255.255.0.0;
Gateway: 172.16.1.254. After finishing the configuration, please click on the Apply button. You
www.atcom.cn 51
