Viewing and Changing System Status Information
Manual reset
Automatic reset
Informational warning
26

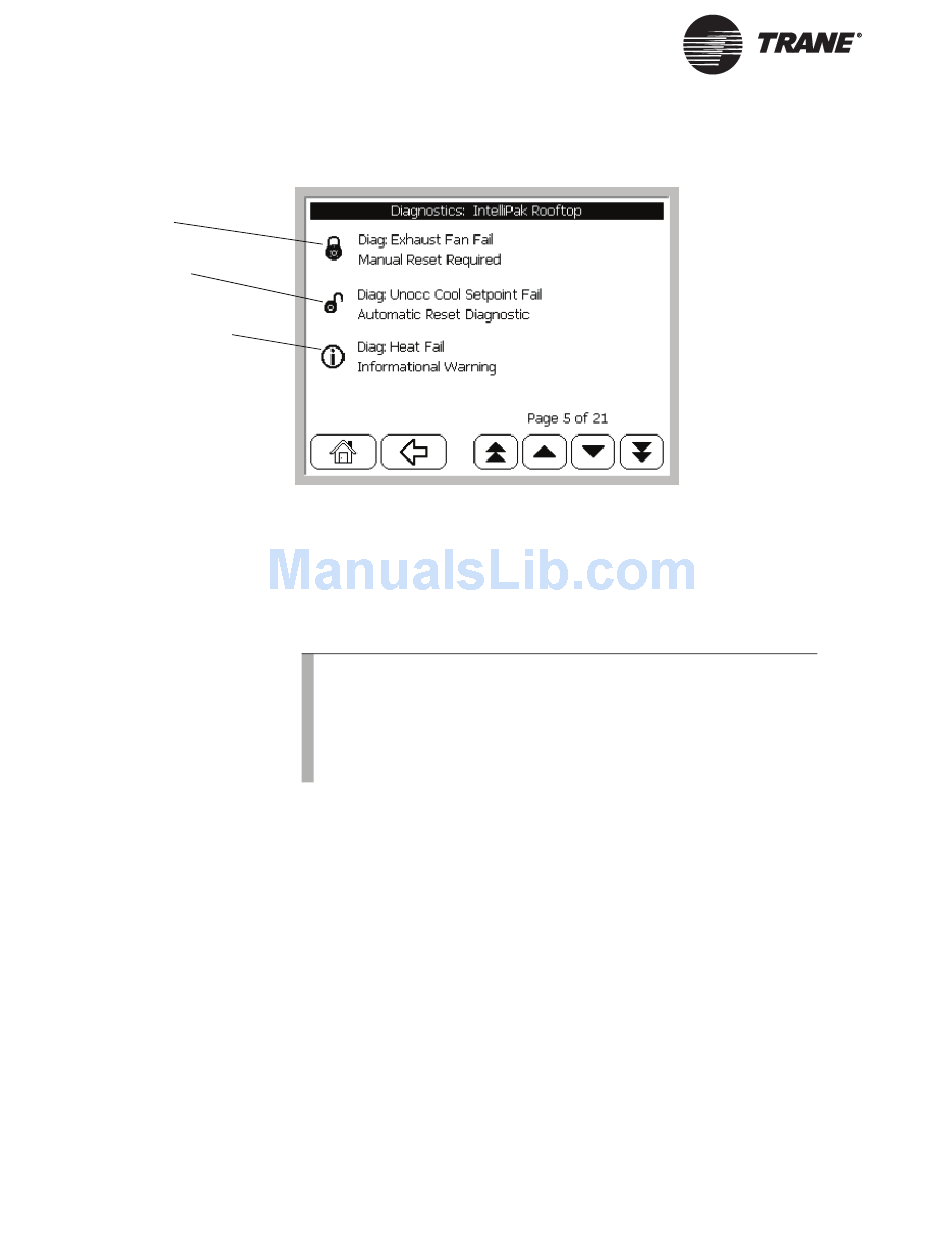

Figure 23: Types of Active Diagnostics
To view diagnostics:
1. From the home screen, press the View button.
2. Using one of the sort methods, access the UCM main screen for the
equipment you want to view.
Note:
Some equipment may not have a unit control module (UCM)
main screen, More Details screen, or Unit Summary informa-
tion associated with it.
The UCM main screen may or may not have a graphic (picture
of the equipment) associated with it.
3. Press the More Details button. The More Details screen displays (see
Figure 13 on page 18 for an example of the More Details screen).
4. Press the Diagnostics button. A list of active diagnostics displays (see
Figure 23).
