Viewing Diagnostics

The BCU operator display lists active diagnostics for most of the equip-
ment selected for viewing and editing at the display. Active diagnostics
provide information about the state or condition of the equipment that

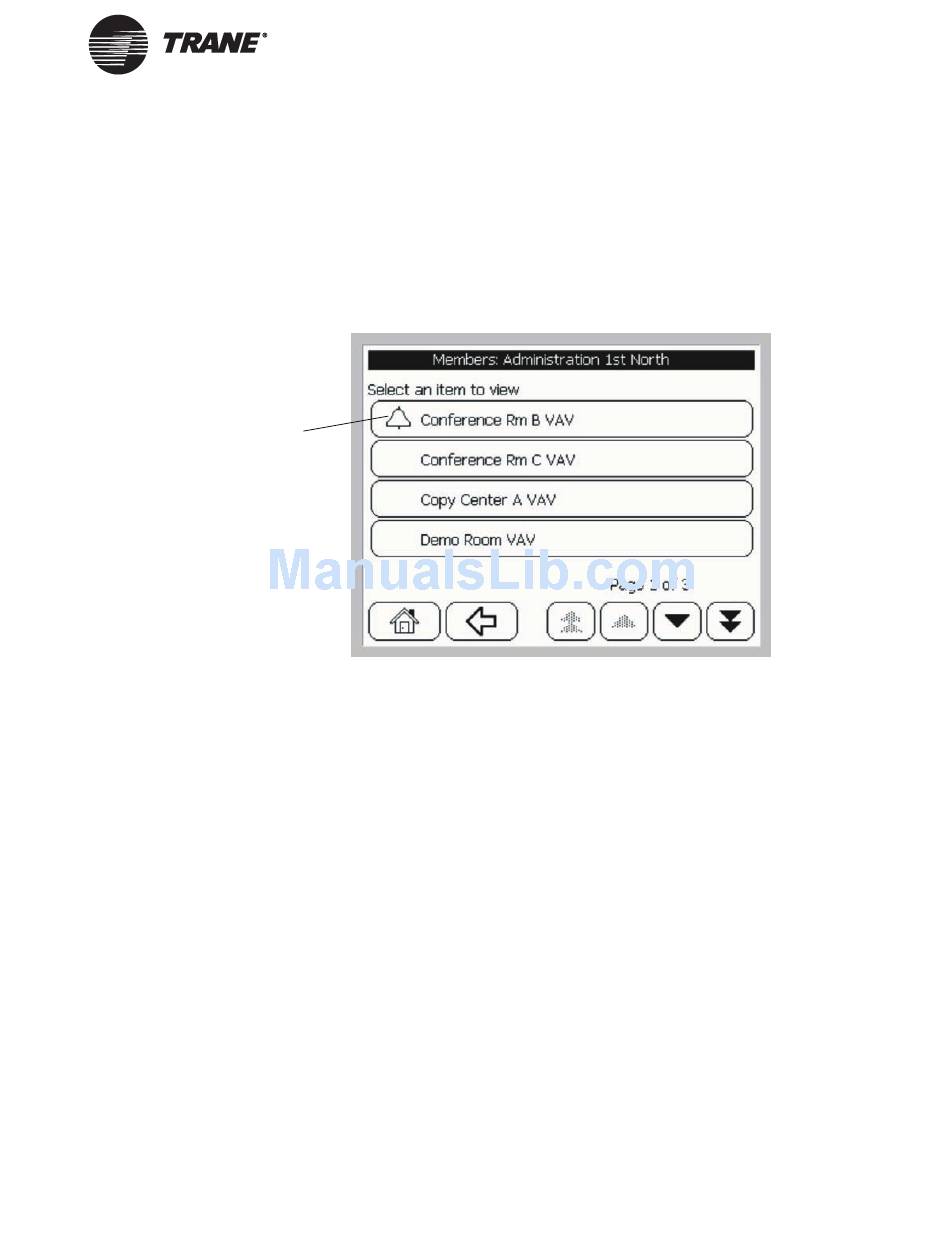

could adversely affect its operating performance. Figure 22 shows the
presence of an active diagnostic for a piece of equipment.
Figure 22: Active Diagnostic Symbol

Types of Active Diagnostics

The operator display can list three different types of active diagnostics:
Manual reset
Automatic reset
Informational warnings
For some equipment, a symbol is associated with each type of diagnostic
to aid you in identifying the types of information that are displayed on the
diagnostic screens (see Figure 23 on page 26). The diagnostics are listed
in chronological order with the most recent diagnostic listed first.
Changing System Values
25
