Moog Videolarm ACEM20CT Installation And Operation Instructions Manual

Indoor ceiling housing
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

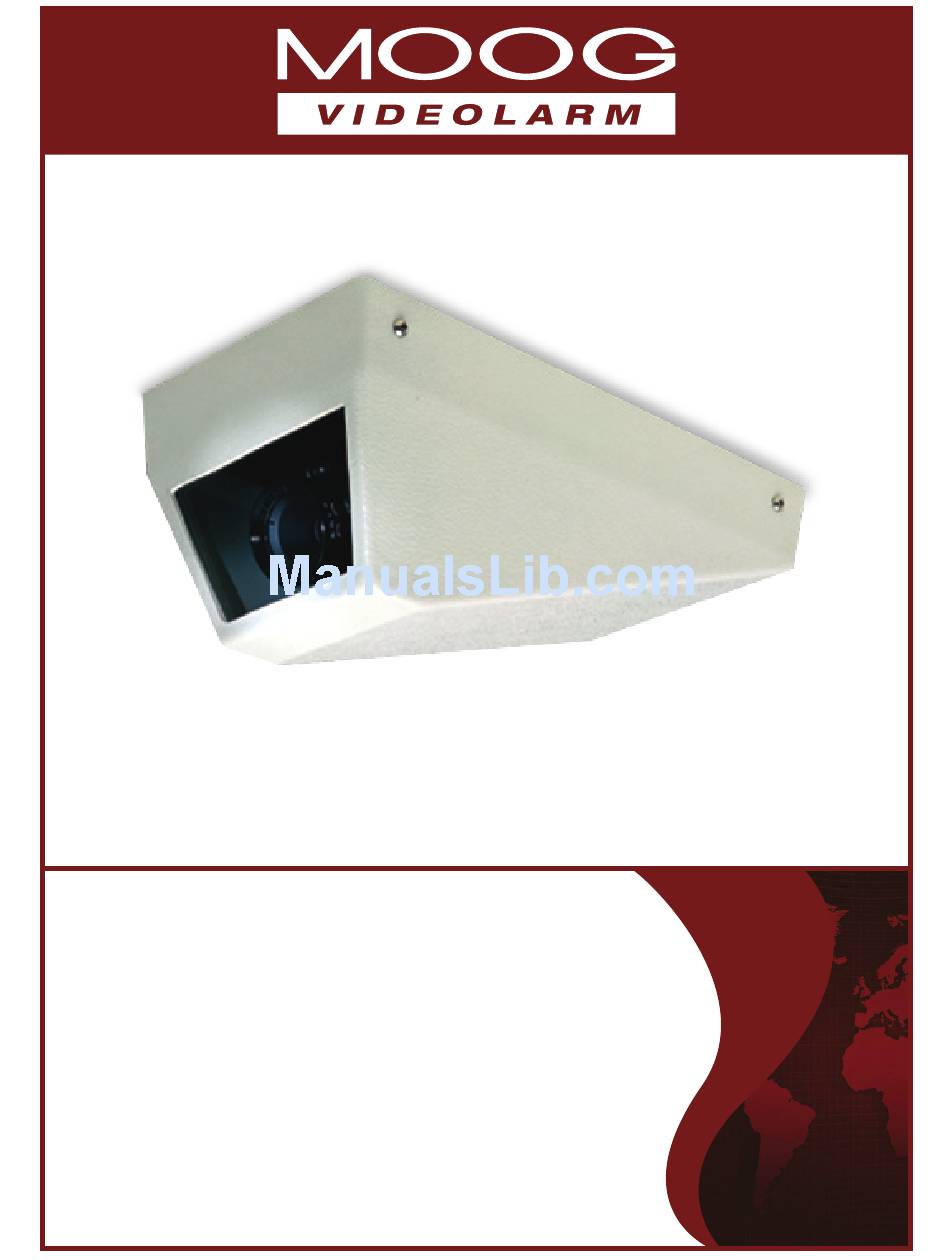

© 2011, Moog Videolarm, Inc. All Rights Reserved
A C E M 2 0 C T / H
Indoor Ceiling Housing
Installation and Operation Instructions for the following models:
ACEM20CT
Vandal-Resistant Indoor 14-gauge Steel housing, ceiling mount plus
Window Guard Paint Shield (s) - 3 clear and 2 tinted, for a fixed camera;
MCL 8" Includes mounting hardware
ACEM20CTH
ACEM20C with factory installed 24Vac heater/ thermostat
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5131
12-21-2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACEM20CT and is the answer not in the manual?

Questions and answers

Related Manuals for Moog Videolarm ACEM20CT

Summary of Contents for Moog Videolarm ACEM20CT

  • Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved A C E M 2 0 C T / H Indoor Ceiling Housing www.videolarm.com Installation and Operation Instructions for the following models: ACEM20CT Vandal-Resistant Indoor 14-gauge Steel housing, ceiling mount plus Window Guard Paint Shield (s) - 3 clear and 2 tinted, for a fixed camera; MCL 8” Includes mounting hardware ACEM20CTH ACEM20C with factory installed 24Vac heater/ thermostat 81-IN5131 12-21-2011 Before attempting to connect or operate this product, please read these instructions completely.

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).

  • Page 3: Terms And Conditions

    If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.

  • Page 4: Electrical Specifications

    Electrical Specifications Content of Box ACEM20C H Class 2 Only Tools: Philips Screwdriver 7/16 wrench Note: DO NOT EXPOSE ENCLOSURE TO RAIN OR MOISTURE English Clase 2 Solamente Herramientas: Destornillador de Philips 7/16 llave Nota: NO EXPONGA EL RECINTO A LA LLUVIA O A LA HUMEDAD Español Classe 2 Seulement Outils : Tournevis de Philips 7/16 clé...
  • Page 5 Remove the housing top by removing the Install the camera bracket using the 1/4-20 (4) #8-32 screws using a Phillips Screwdriver. bolt provided. • Instale el soporte de la cámara fotográfica usando el perno • Quite la tapa de la cubierta quitando (4) los tornillos #8-32 1/4-20 proporcionado.
  • Page 6 Attach camera and complete wiring. Adjust the camera angle, and tighten the camera bracket. • Termine el cableado de la cámara fotográfica. Ajuste el ángulo de cámara fotográfica, y apriete el soporte de la cámara fotográfica. • Accomplissez le câblage d'appareil-photo. Ajustez l'angle d'appareil-photo, et serrez la parenthèse d'appareil- photo.

  • Page 7: Replacement Parts List

    Replacement Parts List CEM20 QT Y. P ART N UMBER DESCRIPTION RP50VL1576 ACEM20 HOUSING TOP RP30VL1310 CE20 MOUNTING PLATE RWCEM20 REPLACEMENT WINDOW 90-BTSR04 8-32X1/2 RD PHILLIPS HD SS 90-BTHH11 1/4-20 X 1/2 HEX HD ZINC 92-WSFL01 1/4 SAE FLAT WASHER 18-8 SS 92-WSSL01 1/4 SPLIT LOCKWASHER 18-8 SS RPCEM03...

  • Page 8: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...

This manual is also suitable for:

Acem20chAcem20ch
