Aluminum outdoor environmental camera housings

Advertisement

Quick Links

© 2011, Moog Videolarm, Inc. All Rights Reserved

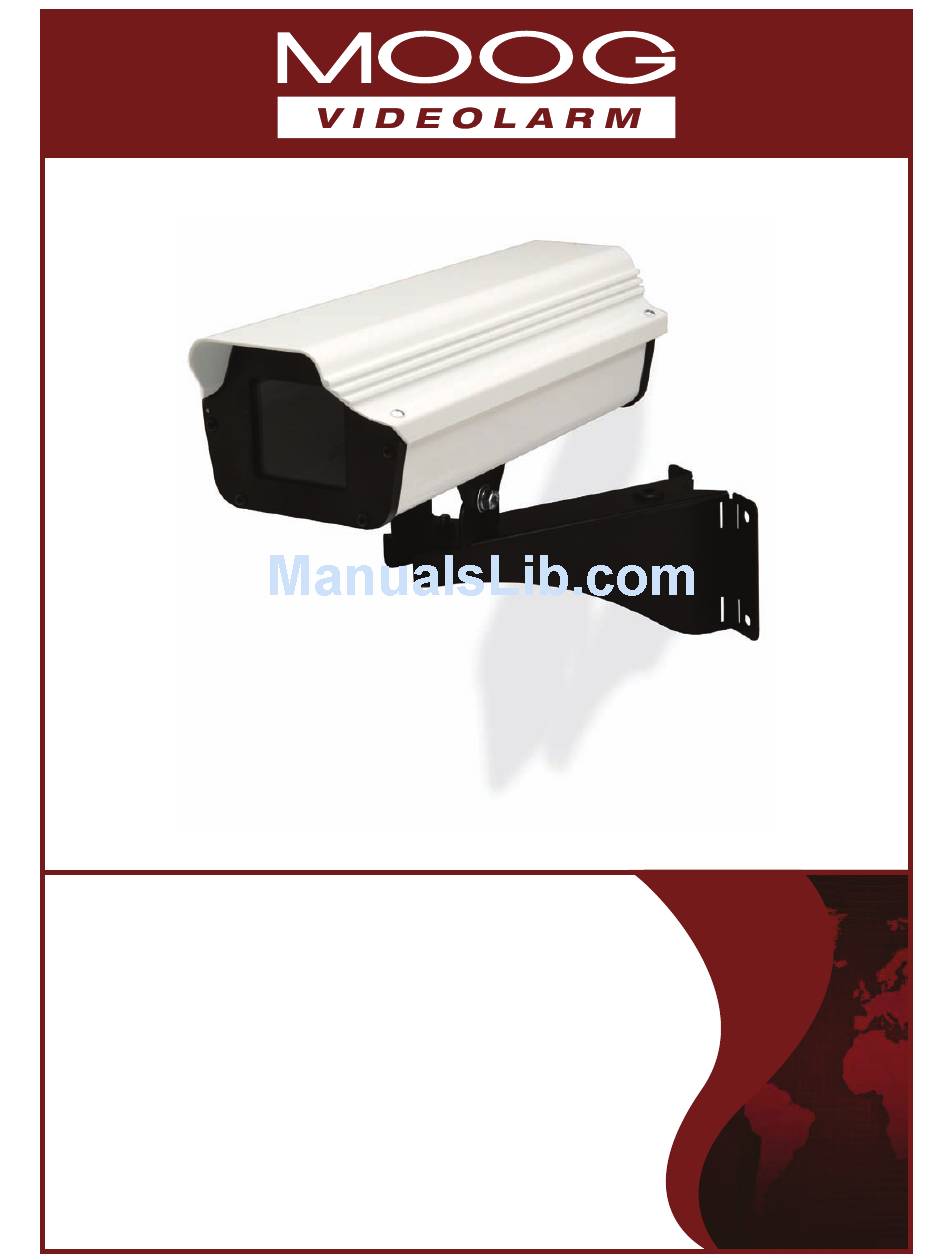

A C H 1 3
Aluminum Outdoor Environmental Camera Housings
Installation and Operation Instructions for the following models:
ACH13WM
Outdoor Environmental housing with standard aluminum body, clear window,
featuring hinged, flip-top opening plus metal wall mount
ACH13HBWM
Outdoor Environmental housing with standard aluminum body, clear window,
featuring hinged, flip-top opening plus metal wall mount, and 24Vac
heater/blower/thermostat
ACH13HBN
IP Network Ready Outdoor Environmental housing with metal wall/pole mount, with
24Vac input, 12 or 24 output for camera, thermostatically controlled heater/blower,
for an IP Network camera, 40vA transformer, MCL 10.5"
ACH13HB12N
IP Network Ready Outdoor Environmental housing with metal wall pole mount,
12Vdc input (ideal for solar and battery powered applications),
thermostatically controlled heater/blower, for an IP Network camera,
MCL 10.5"
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5335
02-01-2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACH13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moog Videolarm ACH13

  • Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved A C H 1 3 Aluminum Outdoor Environmental Camera Housings www.videolarm.com Installation and Operation Instructions for the following models: ACH13WM Outdoor Environmental housing with standard aluminum body, clear window, featuring hinged, flip-top opening plus metal wall mount...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
  • Page 3: Terms And Conditions

    If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
  • Page 4: Electrical Specifications

    Electrical Specifications Electrical Specifications ACH13WM ACH13HB12N ACH13HBN ACH13HBWM Input Power: 24 VAC Input Power: 12 VDC Power Output: 27 Watts Heater/Blower Power Output: 22 Watts Heater/Blower Camera: Not Supplied Camera: Not Supplied Tools Required: Phillips Screwdriver Tools Required: Phillips Screwdriver English English 7/16 Wrench or Socket...
  • Page 5: Unpacking The Product

    Unpacking the Product ACH13HBN ONLY Remove the tilt mechanism from the bracket. Quite el mecanismo de la inclinación del • soporte. Enlevez le mécanisme d'inclinaison de la • parenthèse. Entfernen Sie die Neigungeinheit vom • Haltewinkel. Remova o mecanismo da inclinação do suporte. •...
  • Page 6 Remove the (2) screws on top of the Install the (2) cable strain relief plugs on the bottom housing and lift it open. of the housing and tighten with the locknuts. • Quite (2) los tornillos encima de la cubierta y levántelos •...
  • Page 7 INPUT 24Vac The beam angle may be adjusted on the These are recommended maximum distances Run 24VAC power through a conduit plug, and place the stripped power wire ends into the 24AC power board. for 24VAC with a 10% voltage drop. bottom of the unit.
  • Page 8 Model: YELLOW ACH13HBN PURPLE 12VDC 24 VAC (IN)  BLOWER (Black)  HEATER BLOWER - (Red) ACH13PCB THERM 1 THERM 2  Connection for wiring 24VAC network unit. Power consumption for heater, blower camera (max) 40VA. Power output for camera 12VDC Maximum 1Amp (12 watts). •...
  • Page 9: Replacement Parts List

    ACH13 Pcboard For 24V Models (Heater Only) RPACHPC220 ACH13 Pcboard For 220V Models RPACH110 ACH13 Rear Endcap Assembly WM800 Medium Duty W all Mount Bracket For ACH13 RPACH130 ACH13 Vent Hole Plugs N/S ACHHB 24V Heater/blower Upgrade N/S RPNET03 20VAC to 12VDC Board...
  • Page 10: Product Registration/Warranty

    Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators.

This manual is also suitable for:

Ach13wmAch13hbwmAch13hbnAch13hb12n
