Moog Videolarm QMRT2-50NA Product Instructions

81-IN5258-07064
QMR Ceiling Mount Dome
QMR(T/C)X-XXXX
REVISION DATE: July 6, 2004
TABLE OF CONTENTS
Cable and Power Guidelines
Electrical Specifications
Housing Installation
Wiring
Camera Adjustment
Camera Focusing
Camera Settings
Black/White
Color
Completion of Installation
NVT Instructions
Exploded View
Warranty Information
Service and Safeguard Information
Troubleshooting
CABLE AND POWER GUIDELINES (Detailed info on Page 11)
This chart shows the proper current needed for power supplies for
Q-View™ cameras. Use Class 2 Power only. Input voltage must
be 24 VAC/VDC.
CAMERAS VOLTAGE
1 24 VAC/VDC
2 24 VAC/VDC
3 24 VAC/VDC
4 24 VAC/VDC
Use the formula below to select the correct power supply for
cameras connected in parallel (positive to positive, negative to
negative):
Total current for a 24 VAC system:
TOTAL CURRENT = (202mA x total number of cameras)
Note: 202mA is camera plus power supply
HOUSING INSTALLATION
1. Carefully remove all equipment from the box.
2. Place the 11 1/8" template provided with the unit at the desired
location on the ceiling. Trace around the template, then cut a hole
in the ceiling following the trace lines.
3. Remove the desired conduit knock-out from the top of the QMR
housing.
1, 11
1
1
2
2
2
2
3
3
3
5
6
7
8
CURRENT POWER
102mA 2.5W
210mA 5W
331mA 7.9W
487mA 10.9W
PRODUCT INSTRUCTIONS
4. Remove the trim ring/dome assembly by pulling on the outside
of the trim ring. The ring and dome are connected by three flat
springs, which press against the side of the housing and lock into
(3) cutouts.
5. Run electrical cable and video leads into the housing through the
conduit knock-out.

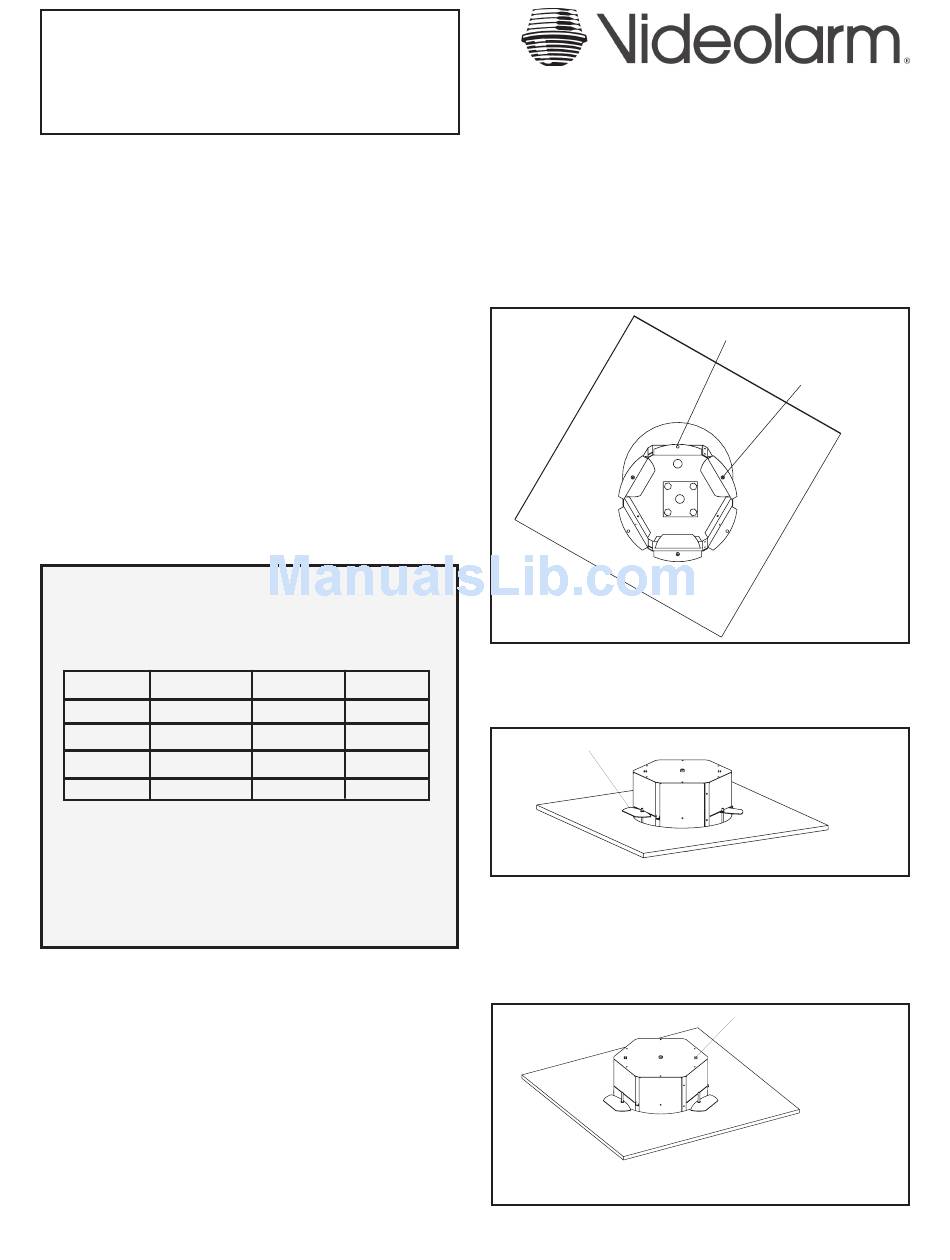

6. With the (3) support arms rotated to the inside, slide the housing
into the pre-cut hole (Figure 1).
Figure 1
7. With the bottom flange pressed up against the ceiling, rotate the
support arms to the outside, the arms will fall to the back side of
the ceiling. Tighten the (3) support arm screws (Figure 2).
Support Arms Rotate Out
Figure 2
8. If the housing is going into a ceiling where the support arms will
not work, secure the housing by running bolts into the solid ceiling
through the mounting holes in the bottom flange (Figure 1).
9. For added support, run support wires from a secure structure to
the two slots provided on the top of the housing (Figure 3).
Figure 3
Mounting Holes
Support Arm Holes
Support Wires
