Summary of Contents for Speco ONSIP O2D3

  • Page 1 ONSIP O2D3...
  • Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing ONSIP O2D3. Keep the device out of reach from children. Do not disassemble ONSIP O2D3. No After Service is assumed when disassembled. Use only the power adapter provided with ONSIP O2D3.

  • Page 3: Revision History

    ’ ’ Caution Any changes or modifications in construction of this device which are not explicitly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Revision History Date Revision Details 2011-11-01 First manual revision creation. Rev.1.0 (Nov., 2011)

  • Page 4: Table Of Contents

    ’ Contents Contents ......................4 Introduction....................5 1.1. Overview ........................5 1.2. Specification ....................... 6 1.3. Applications of ONSIP O2D3 ..................8 2. Product Description ..................9 2.1. Contents ........................9 2.2. Product Preview ....................... 10 2.3. Physical description....................11 2.4.

  • Page 5: Introduction

    It enables real time transmission of synchronized video of up to 2 M pixels and audio data. Remote clients can connect to ONSIP O2D3 for real time video/audio data through various client solutions running on PC, PDA or mobile phones. Real time 2-way communication is available through bidirectional audio communication feature.

  • Page 6: Specification

    Wall, Ceiling, Embedded Motion Detection 3 zones Arbitrary shape with independent sensitivity Upgrade Firmware upgrade over IP network Remote administration over IP network Administration Web Viewer Simple viewing over internet explorer Client & Viewer Speco-NVR Standard CMS software Rev.1.0 (Nov., 2011)
  • Page 7 ’ ’ Dynamic IP support DDNS support Supported Video/Audio stream encryption ID and Password protection Security IP filtering for restricting administrative access for audio and bi-audio Sync to PC Synchronize to PC Time management Manual Manual time setting Internet Time Server Synchronize to Time Server Active-X SDK support...

  • Page 8: Applications Of Onsip O2D3

    ’ ’ 1.3. Applications of ONSIP O2D3  Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.) Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting Weather and environmental observation ...

  • Page 9: Product Description

    2. Product Description 2.1. Contents The product package contains followings: Contents Description Remarks ONSIP O2D3 IP camera ONSIP O2D3 main unit Default built in standard PoE module 12VDC Adaptor Power Adaptor (IEEE802.3af) (Optional item) Basic tools and hardware Screws, Rubber rings, Mount cap,...

  • Page 10: Product Preview

    ’ ’ 2.2. Product Preview CMS Software ONSIP O2D3 IP-Installer (NVR) PC software to view and record the A/V streaming data transmitted Vandal Proof (Megapixel) PC software to allocate an IP from IP camera. Mini Dome IP Camera address to the IP Camera...

  • Page 11: Physical Description

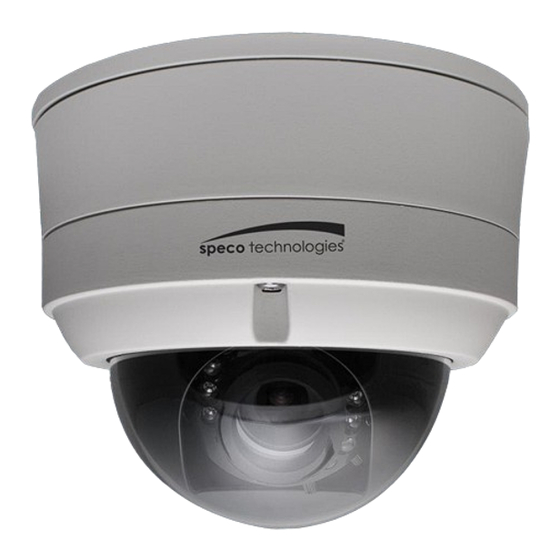

    ’ ’ 2.3. Physical description 2.3.1. External View Front Rear Figure 2-1. External view of ONSIP O2D3 Rev.1.0 (Nov., 2011)
  • Page 12 ’ ’ 2.3.2. Internal Structure Figure 2-2. Internal structure of ONSIP O2D3 Figure 2-3. Terminal Block, LAN, and DC power connector Rev.1.0 (Nov., 2011)
  • Page 13 ’ ’ Figure 2-4. Factory Default switch and Video output connector Figure 2-5. RS-232 connector Rev.1.0 (Nov., 2011)
  • Page 14 ’ ’ Figure 2-6. Adjustment knobs for the Camera Figure 2-7. 3 axis based camera position control (Manual adjustment of Pan, Tilt and Video rotation.) Rev.1.0 (Nov., 2011)

  • Page 15: Functional Description

    2.4. Functional Description  DC 12V, 2A: Power input for supplying 12V DC power.  Caution: If ONSIP O2D3 is powered by PoE, do not plug in DC Jack with active DC power into DC power connector.  MIC/LINE IN Connect external audio source or microphone.
  • Page 16 For debugging & factory use only. Ground of RS-232C  Alarm In/Out and Audio In/Out Used for connecting alarm sensor, alarm annunciation device, microphone and speaker to ONSIP O2D3. Description LINE OUT (+) 1 V p-p audio signal output for amplified speaker.
  • Page 17 ’ ’ “SNS In”. The sensor type (NC/NO) can be set in admin page. 10 mA can be sunk into sensor device. Multiple sensor devices can be connected in parallel. Photo Coupler NO/NCType Open CollectorType Sensor1+ Sen sor Sensor Device Device Sensor1- +12V...

  • Page 18: Accessories For Installation

    ’ 2.5. Accessories for installation Figure 2-11. Accessories for installation of ONSIP O2D3. Silica gel at the right is packaged in a vacuum sealed PVC bag. It is recommended to use the Cable gland for achieving water tight cabling. Refer to the below.
  • Page 19 ’ ’ LAN Cable Figure 2-13. Cable gland for water tight cabling Rev.1.0 (Nov., 2011)

  • Page 20: On Site Installation

    ’ ’ 3. On Site Installation Use Cables and conduits that are suitable for the installation and that are compliant to IP-66. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life time of the product.

  • Page 21: Wall Mount (Option)

    ’ ’ 3.2. Wall mount (option) 1. Assemble the wall mount bracket assembly. 2. Run the cable through the bracket and attach the mount onto the wall. 3. Fix the Dome Base into the bracket. The rubber gasket should be placed properly to ensure water tightness after placing the Dome Cover.

  • Page 22: Ceiling Mount (Option)

    ’ ’ 3.3. Ceiling mount (option) Fix the mount bracket onto the ceiling 2. Run the cable through the bracket. 3. Fix the Dome Base into the bracket. The rubber gasket should be placed properly to ensure water tightness after placing the Dome Cover. 4.

  • Page 23: Embedded Ceiling Mount (Option)

    ’ ’ 3.4. Embedded Ceiling Mount (Option)  Components              Installation 1. Prepare the connecting wires and pipes for the wires. 2. Prepare a round hole (173.6 +/- 5mm in diameter) for the installation of the product on the ceiling panel.
  • Page 24 ’ ’ 5. Sit “Dome Base” in “In Ceiling Housing” 6. Connect the wires and finish pipe works. 7. Adjust the manual Pan/Tilt/Video rotation for desired viewing of the site. 8. Adjust the focus and zoom. 9. Place the Dome Cover 10.

  • Page 25: Installation Environment

    Starting operation in low temperature If ONSIP O2D3 is powered up under low temperature environment, the internal heater will warm up the product until the temperature inside the product reach at proper operational temperature. The table below shows time required for the heater to warm up the product.

  • Page 26: Getting Started

    Brief information for first time operation of ONSIP O2D3 is provided in this chapter. 4.1. PC Requirement Audio/Video streaming data received from ONSIP O2D3 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below:...

  • Page 27: Quick Installation Guide

    1) Prepare a PC to run programs for the installation and video connection (PC is needed to assign IP address to ONSIP O2D3) 2) In the case of using PoE, connect the PC and ONSIP O2D3 to the network using one of the following ways.
  • Page 28 ’ ’ 2. Install Speco-NVR Speco-NVR is a multi-channel CMS program for IP cameras or Video servers. Insert the CD provided with product into the PC and install Speco-NVR. Admin Page Button IP installer Figure 4-2. Speco-NVR Follow the sequence below for setting the IP parameter Run IP installer ①...
  • Page 29 ’ ’ Click on the field in ③ for sorting and rearranging the list. Select network mode that best suits from the drop down list in ⑤ . You can choose either Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in ⑥ is deactivated.
  • Page 30 3. Remote video connection to ONSIP O2D3 1) Connection through Web Viewer Web Viewer offers simplest way of video connection to ONSIP O2D3 . For video connection, enter the IP address of ONSIP O2D3 in the URL window of Internet Explorer as: omitted [e.g.] Port 80...
  • Page 31 SAVE button. You can see the live video when you click the live view button as below. When you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for the Speco-NVR can be found in [Speco-NVR User’s Guide].
  • Page 32 ’ ’ 4. Additional settings through connection to the Admin Page All the parameters of new IP camera follows factory default values. For more sophisticated target application it is needed to change parameters. The admin page can be connected through ”http://IP_address:HTTP_port_number ”/admin.htm It is needed to enter ID and password of the administrator.

  • Page 33: Trouble Shooting

    ’ ’ 5. Trouble Shooting 5.1. No power is applied  In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2.

  • Page 34: Cannot Connect To The Video

    ’ ’ 5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC : Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~”...

  • Page 35: Windows Vista Or Windows 7

    5.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 36 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” Rev.1.0 (Nov., 2011)
  • Page 37 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.0 (Nov., 2011)

  • Page 38: Technical Assistance

    ’ ’ 5.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5.
