- Page 1 Quick Start Guide O2DB1 Device Use the mobile APP to scan the Use your phone to scan the QR QR code to quickly add the camera code to download the mobile APP...
-
Page 2: Electrical Safety
This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1. - Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.

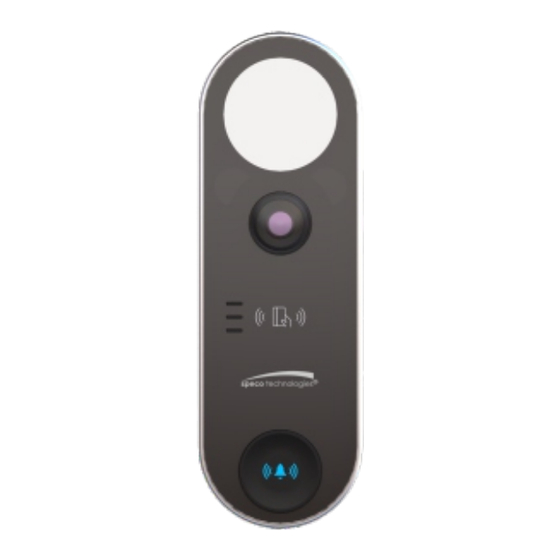

- Page 4 Drill Template Cables Bracket Plastic screw Weather- resistant cap anchors Overview Left Front Back 31.3mm 50mm 29.8mm White Fill Light Infrared Light Camera Loudspeaker Card Reading Area Indicator Button Microphone Anti-Tamper Button RESET Terminals Reset TFCard Slot Indicator Description Red: starting Flashing blue: the doorbell button pressed Flashing red: network disconnected Green: in standby mode at night...
-
Page 5: Cable Connection
CableConnection POWER GND BLACK Power Input POWER12V RED RS 485- YELLOW RS 485 RS 485+ ORANGE LOCKNC GRAY LOCKCOM WHITE Lock LOCKNO PURPLE ALARM IN BLUE Alarm Input BUTTONWHITE Exit Button SENSOR YELLOW Door GND BLACK Contact GND BLACK GND BLACK WIEGAND-D0 GREEN Wiegand Interface... - Page 6 +12V RS 485- RS485 Anode Card Reader RS 485+ Magnetic Lock Power Cathode Lock Alarm Input Device Exit Door Button Contact Wiegand Card Reader Note: * The wiegand terminal here is a wiegand input terminal. If you want to connect to an access controller, you shall set the Wiegand direction to “Output”.
-
Page 7: Installation
Installation Installation Ø6 Drill Template Stick the drill template onto the wall and Secure the mounting plate onto the wall with then drill two holes according to the holes 2 screws. of the drill template marked with “ ”. Lock screw Cover Route and connect the cables. - Page 8 Mounting with Adapter Bracket There are two ways to install the adapter Ø6 bracket as shown below. Drill Template 15° 15° Target Target Attach the mounting plate to the adapter bracket Stick the drill template onto the wall and with two screws. Refer to the above right figures to then drill two holes according to the holes install the adapter bracket as needed.
-
Page 9: Network Connection & Login
Height Requirement HumanHeight Range Height Distance 140cm~168cm 0.3m 1.45m 0.5m 127cm~183cm 88cm~222cm 0.3m 0.5m The recommended installation height (H) is 1.45m. It can be adjusted according to the actual scene. Network Connection & Login ● Wireless Network Connection ① Enable Wi-Fi network of your phone. Then scan the QR Code of the APP to download and install the APP in your phone. - Page 10 ● Wired Network Connection ① Make sure that the device and the PC are connected to the same local network. The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. Or download from https://www.specotech.com/ip-scanner/ ③...
