Summary of Contents for Speco ONSIP 02S1

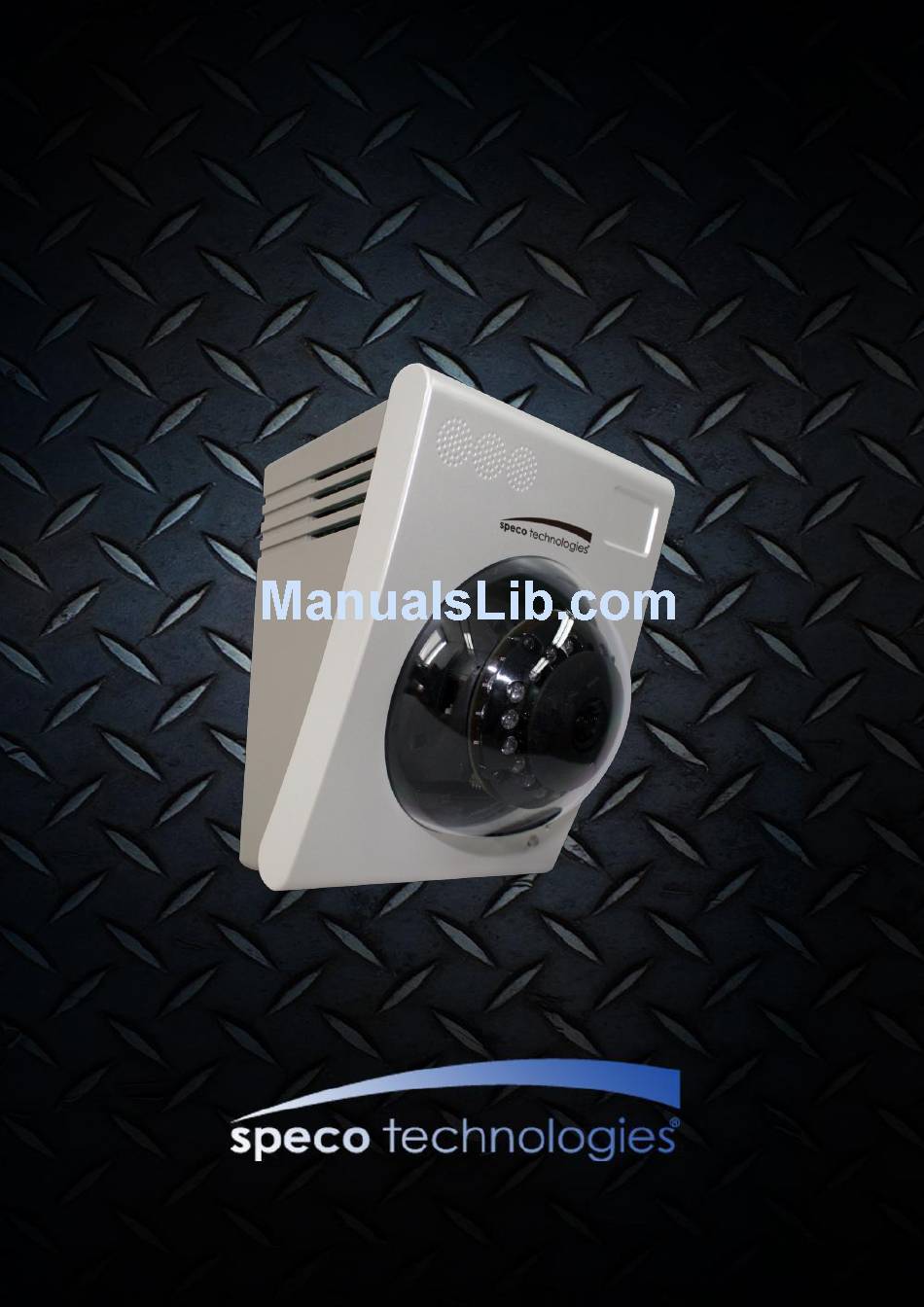

  • Page 1 ONSIP 02S1...
  • Page 2 ’ ’ Note This equipment has been tested and found to comply with the limits for a Class a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3: Revision History

    ’ ’ Caution Any changes or modifications to this device could void the warranty. Directions ▪ Be careful not to cause any physical damage by dropping or throwing ONSIP O2S1. ▪ Especially keep the device out of reach from children. ▪...
  • Page 4: Table Of Contents

    ’ ’ Contents Contents ......................4 1. Introduction ....................6 1.1. Overview ......................... 6 1.2. Specification ......................7 1.3. Applications of ONSIP O2S1................8 2. Product Description .................. 9 2.1. Contents ........................9 2.2. Product Preview ....................10 2.3. Physical description..................... 11 2.4.
  • Page 5 ’ ’ 4.2. The image is dull and I see green, pink dots..........25 4.3. Mosaic phenomenon................... 25 4.4. Cannot connect to the Video ................25 4.5. Windows Vista or Windows 7 ................26 4.6. Technical Assistance ................... 29 Rev.1.0 (Nov., 2011)
  • Page 6: Introduction

    Based on Speco Technology’s Embedded Software Solution (Embedded Web Server, Embedded Streaming Server & Network Protocol), the ONSIP O2S1 delivers unprecedented performance and stability. Weather your application is basic, or scaling to the enterprise, Speco Technology Network Video Recording Applications (NVR PRO) offer highly reliable methods of managing your security video.
  • Page 7: Specification

    Upgrade Firmware upgrade over IP network Remote administration over IP network Administration Web Viewer Simple viewing over Internet Explorer Client & Viewer Speco-NVR Standard CMS software Dynamic IP support DDNS support Supported ID and Password protection Security IP filtering for restricting administrative access for audio and bi-audio...
  • Page 8: Applications Of Onsip O2S1

    ’ ’ 1.3. Applications of ONSIP O2S1  Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.) Teleconference (Bi-directional audio conference). Real time Internet broadcasting Distance (Remote) Learning/Education ...
  • Page 9: Product Description

    ’ ’ 2. Product Description 2.1. Contents The product package contains followings: Contents Description Shape Remarks ONSIP O2S1 IP Camera Main Body Adaptor Box Back Box for housing adaptors Power adaptor with proprietary Power Adaptor PoE. Installed inside the Back box for AC connector PBA connecting AC power to the power supply.
  • Page 10: Product Preview

    CD & Documents Software & User’s Guide 2.2. Product Preview CMS Software ONSIP O2S1 IP-Installer (Speco-NVR) PC software to view and record the A/V streaming data transmitted PC software to allocate an IP Mega pixel IP Camera from IP camera.
  • Page 11: Physical Description

    ’ ’ 2.3. Physical description 2.3.1. Exterior View Figure 2-1. Exterior view of ONSIP O2S1  Status LED: Integrated microphone Status LED: Green color indicates that the camera is in normal operation mode, while RED color indicates that the camera is in abnormal condition. ...
  • Page 12 ’ ’  Factory Default Reset: Used for returning the network camera to the factory default state. One must open the cover in order to access the switch. To reset: Power down the camera, next while powering up the camera, hold down the reset switch for three seconds. 2.3.2.
  • Page 13: Functional Description

    ’ ’ 2.4. Functional Description  100Base-T 100Mbps Ethernet connector (RJ-45) with proprietary PoE. 2 LEDs on the Ethernet connector shows the status of ONSIP O2S1 as the followings: Status LED (Dual Color): It will be lit in green or red depending on the status. ...
  • Page 14 ’ ’ sensors, magnetic contacts, etc. (NC/NO selectable on the admin page.)  Relay Output: It is used for connecting external alarm generators such as sirens, flashing light, etc. When activated, relay output configures a closed circuit. Rev.1.0 (Nov., 2011)
  • Page 15: Sensor-In And Relay-Out

    ’ ’ Sensor-In and Relay-Out cable is used to connect various sensing and alerting devices. Examples of se nsing devices are infrared sensors, motion sensors, heat/smoke sensors, magnetic sensor, etc. Relay-Ou t t is used for connecting alerting device such as loud speaker, flashing light, etc. 1.
  • Page 16 ’ ’ 2. Relay-OUT A Relay output is provided for connecting alarm devices or for remote on/off devices such as light control. Relay circuits are normal open and circuits are closed upon alarm output or remote on. The relay is capable of switching AC/DC 30V, 1A electrical signal. Figure 2-6.
  • Page 17 ’ ’ Connection of Relay Relay Switch Power Supply Alarm 1V~ 30VDC/ AC,1A Devic e Po wer Sup p ly( Op tio nal Relay Switc h Relay1 Alarm Devic e Relay1 Po wer Sup p ly 1~30 Relay VDC/AC,1A You can a maximum load of 30V use the supported relay output to directly drive AC/DC at 1A.
  • Page 18: Getting Started

    ’ ’ 3. Getting Started Brief information for first time operation of ONSIP O2S1 is provided in this chapter. 3.1. PC Requirement Audio/Video streaming data received from ONSIP O2S1 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below: Recommended Remark Dual Core 3G...
  • Page 19: Quick Installation Guide

    ’ ’ 3.2. Quick Installation Guide Install the battery in the battery compartment and place the battery cover lid. Assemble the power adaptor box as required for your installation condition. Connect ONSIP O2S1 to LAN by using one of the following methods If you have PoE power adaptor, connect the network camera and PC as illustrated in Figure 2.3.
  • Page 20 ’ ’ Install Speco-NVR Speco-NVR is a multi-channel CMS program for to IP camera or Video server. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection. Insert the CD provided with product into the PC and install the Speco-NVR.
  • Page 21 ’ ’ Click on the field in ③ for sorting and rearranging the list. Select network mode that best suits from the drop down list in ⑤ . You can choose either Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in ⑥ is deactivated.
  • Page 22 Note: Active-X module should be installed on your PC before actual connection. If your PC is not connected to the internet, you cannot download Active-X module. Most convenient way of installing the Active-X module is installing Speco-NVR which is available from the CD or our web site.
  • Page 23 ’ 2) Connection through Speco-NVR Speco-NVR is a multi-channel CMS program for to IP camera or Video server. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection. Details for the Speco-NVR can be found in [Speco-NVR User’s Guide].
  • Page 24 ’ ’ Additional settings through connection to the Admin Page All the parameters of new IP camera follows factory default values. For more sophisticated target application it is needed to change parameters. The admin page can be connected through ”http://IP_address:HTTP_port _number”/admin.htm It is needed to enter ID and password of the administrator.
  • Page 25: Trouble Shooting

    ’ ’ 4. Trouble Shooting In Basic Setup of Admin Mode, lower the “Quality”. High quality means more data. You can also set the “Max. Bandwidth” to higher value. But this value must be lower than the maximum upload speed of your network.
  • Page 26: Windows Vista Or Windows 7

    4.5. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 27 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “Properties” 3) Check “Privilege Level” in “Compatibility” tab <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting”...
  • Page 28 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.0 (Nov., 2011)
  • Page 29: Technical Assistance

    ’ ’ 4.6. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5.
