Speco ONSIP O2IR56B1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
'
'
O
2
I
R
5
6
B
1
U
s
e
r
s
G
u
i
d
e
O
2
I
R
5
6
B
1
U
s
e
r
s
G
u
i
d
e

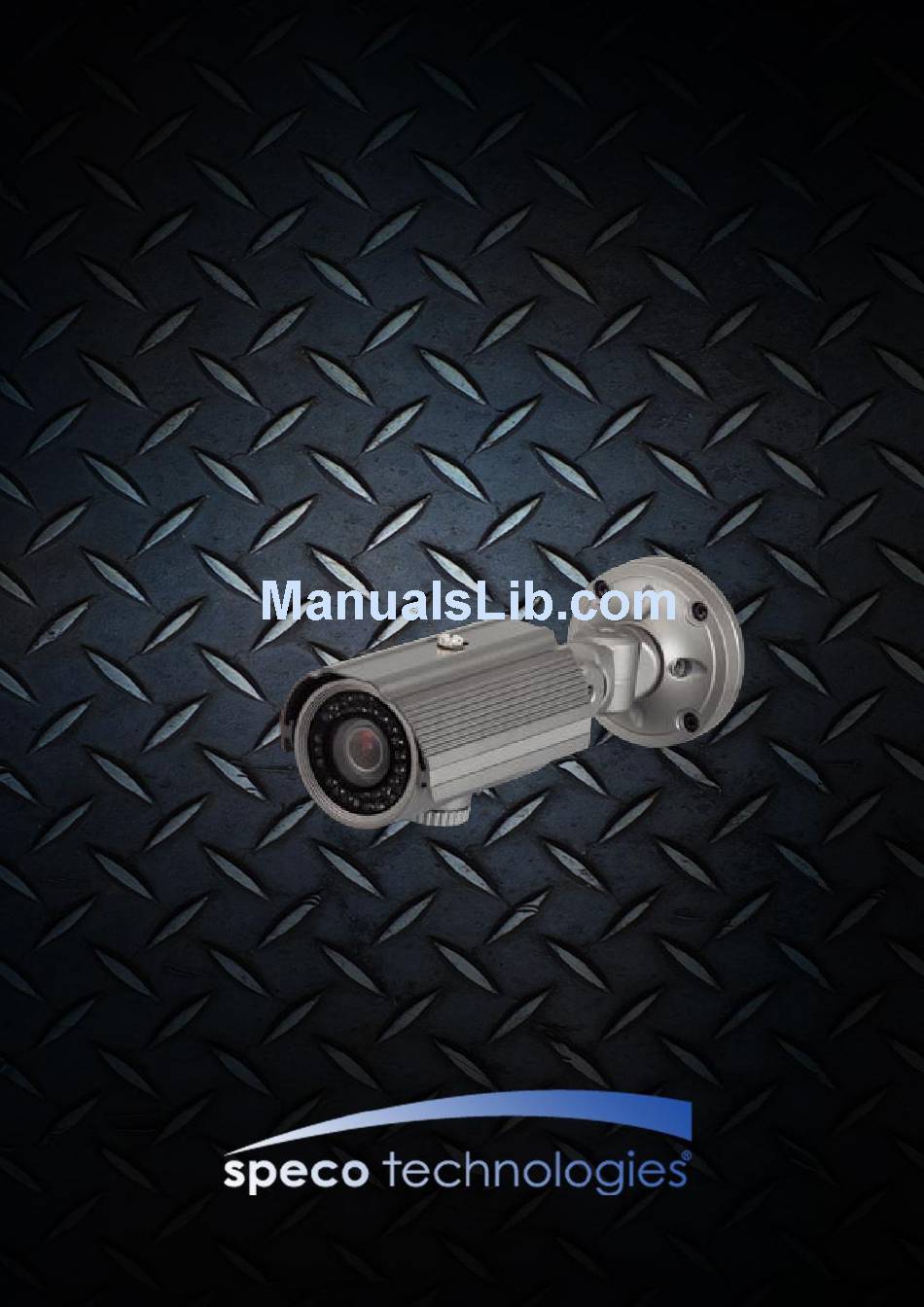

ONSIP
O2IR56B1
Rev.1.3 (June, 2013)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONSIP O2IR56B1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco ONSIP O2IR56B1

Summary of Contents for Speco ONSIP O2IR56B1

  • Page 1 ’ ’ ONSIP O2IR56B1 Rev.1.3 (June, 2013)
  • Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing O2IR56B1. Especially keep the device out of reach from children. Do not disassemble O2IR56B1. No after service is assumed when disassembled. Use only the power adapter provided with O2IR56B1. Be careful to prevent moisture or water penetration into the unit.

  • Page 3: Revision History

    ’ ’ Caution Any changes or modifications in construction of this device which are not explicitly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Revision History Date Revision Details 2013-04-01 First manual revision creation. 2013-05-23 Text revision 2013-05-24...

  • Page 4: Table Of Contents

    ’ ’ Contents Contents ..................4 1. Introduction ................5 1.1. Overview ....................5 1.2. Specification ....................6 1.3. Applications of O2IR56B1 ................7 2. Product Description..............8 2.1. Contents ....................8 2.2. Product Preview ..................9 2.3. Physical description ................... 10 2.4.

  • Page 5: Introduction

    ’ ’ 1. Introduction 1.1. Overview The O2IR56B1 is a dual-codec (H.264, MJPEG) IP/network camera built with embedded software and hardware technology. It enables real time transmission of synchronized video of up to 1080p and audio data. Remote clients can connect to O2IR56B1 for the real time video/audio data through various client solutions running on PC or smart device.

  • Page 6: Specification

    Upgrade Firmware upgrade over IP network Administration Remote administration over IP network Web Viewer Simple viewing over internet explorer Client & Viewer SPECO NVR Standard VMS software 3rd Party VMS Ask provider for details Dynamic IP support DDNS support Supported...

  • Page 7: Applications Of O2Ir56B1

    ’ ’ Sync to PC Synchronize to PC Time management Manual Manual time setting Internet Time Server Synchronize to Time Server Active-X SDK support HTTP 1.3. Applications of O2IR56B1  Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) ...

  • Page 8: Product Description

    ’ ’ 2. Product Description 2.1. Contents The product package contains the following: Contents Description Remarks O2IR56B1 O2IR56B1 main unit Bracket included L-Wrench 2EA, Video Cable 1EA, Tools and Mounting Screws Screw(5x10 4EA / 8x25 4EA), Round Base Bracket Adaptor 1EA Software &...

  • Page 9: Product Preview

    ’ ’ 2.2. Product Preview VMS Software O2IR56B1 IP Installer (Speco NVR) PC software to view and record the A/V streaming data transmitted Weatherproof PC software to allocate an IP from IP camera. Bullet IP Camera address to the IP Camera...

  • Page 10: Physical Description

    ’ ’ 2.3. Physical description 2.3.1. External View Rear Figure 2-1. External view of O2IR56B1 2.3.2. Connector information Audio-Out Power Sensor Audio-In Figure 2-2. Connector information Rev.1.3 (June, 2013)

  • Page 11: Functional Description

    ’ ’ SD card Focus control Factory default Figure 2-3. Factory Default switch and Video output connector 2.4. Functional Description  DC 12V: Power input for supplying 12V DC power.  MIC/LINE IN Connect external audio source or microphone.  Line Out Connect speakers with built in amplifier.
  • Page 12 ’ ’ The sensor type (NC/NO) can be set in the admin page. Multiple sensor devices can be connected in parallel. Photo Coupler NO/NCType Open CollectorType Sensor1+ Sensor Sensor Device Device Sensor1- +12V Sensor Sensor Power Power Supply Supply Figure 2-4. SENSOR input and connection of the sensor ...

  • Page 13: Accessories For Installation

    ’ ’ 2.5. Accessories for installation Figure 2-6. Accessories for installation of O2IR56B1. Rev.1.3 (June, 2013)

  • Page 14: On Site Installation

    ’ ’ 3. On Site Installation Use Cables and conduits that are suitable for the installation and that are compliant to IP-67. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the lifetime of the product. Products of which the internal parts are exposed to moisture because of improper installation are not covered by warranty.

  • Page 15: Getting Started

    ’ ’ 4. Getting Started Brief information for the initial operation of O2IR56B1 is provided in this chapter. 4.1. PC Requirement Audio/Video streaming data received from O2IR56B1 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below: Minimum Requirement Recommended Specification Intel Core i3 3Ghz...

  • Page 16: Quick Installation Guide

    Figure 4-1. Power and network connection 2. Install Speco-NVR Speco-NVR is a multi-channel VMS program for the IP camera or Video server. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection.
  • Page 17 ’ ’ Click on the field in (3) for sorting and rearranging the list. Select network mode that best suits from the drop down list in ⑤. You can choose either Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in ⑥ are deactivated.
  • Page 18 Note: Active-X module should be installed on your PC before actual connection. If your PC is not connected to the internet, you cannot download Active-X module. Most convenient way of installing the Active-X module is installing Speco-NVR which is available from the CD or our web site.
  • Page 19 Camera Assignment Example Save Figure 4-4. Speco-NVR 4. Additional settings through connection to the Admin Page All parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through ”http://IP_address:HTTP_port_number”/admin.htm...

  • Page 20: Troubleshooting

    ’ ’ 5. Troubleshooting 5.1. No power is applied  In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2.

  • Page 21: Windows Vista Or Windows 7

    5.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video captures in Speco NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 22 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties”...
  • Page 23 ’ ’ Rev.1.3 (June, 2013)

  • Page 24: Technical Assistance

    ’ ’ 5.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5.

  • Page 25: Appendix - Osd Menu Control

    ’ ’ 6. Appendix – OSD Menu Control 6.1. MENU Set Up 1. Press the SET key to access the menu mode. 2. Select the desired feature by using the UP/DOWN direction (/\ \/) of the SET key. If an ENTER arrow is displayed next to the feature, press the SET key to access the feature's menu.

  • Page 26: Backlight

    ’ ’ BRIGHTNESS [0 ~20] : This function is used to adjust the brightness of the camera picture. SHUTTER [1/25, 1/30, 1/60, 1/50, 1/120, 1/240, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000, 1/30000, 1/60000] : You can select one of 14 options from 1/25 to 1/60000K for the fixed high speed electronic shutter, which is mostly used for imaging a fast moving object.

  • Page 27: Day / Night

    ’ ’ BLC (Back Light Compensation): This function is used to counterbalance the screen image by increasing the brightness so that a subject which appears dark due to a strong backlight can be displayed in more detail. If you select BLC, a submenu appears where you can make finer adjustments.
  • Page 28 ’ ’ COLOR: The camera is always in color mode regardless of the ambient conditions. B/W: The camera is always in Black & White mode regardless of the ambient conditions. EXTERN: Here you can activate the EXTERN function to activate the external Day & Night connector on the rear panel of the camera.

  • Page 29: White Balance

    ’ ’ 6.6. White Balance The camera needs to find a reference color temperature, which is a way of measuring the color of a light source, for calculating all the other colors. The unit for measuring this ratio is in degree Kelvin (K). You can select one of the White Balance Control modes according to the installation condition.

  • Page 30: Image

    ’ ’ 6.8. Image When selecting ↵, the following submenu will appear. Here you can optimise the image quality by adjusting different options. SHARPNESS [1 ~ 10] : Adjusts the image sharpness. If the level goes up excessively, it may affect the video image and generate a noise.

  • Page 31: Motion

    ’ ’ SHADING [ON, OFF] : Compensates the shading effects of lenses when the lens is set to a very wide angle. This function will reduce the brightness difference between the centre and the edges. If you select ON, a submenu appears where you can make finer adjustments.

  • Page 32: System

    ’ ’ SENSITIVITY [1 ~ 20] : Set the sensitivity of the motion detection. DET H-PS [0 ~ 60] : Define the horizontal start position of the monitoring area. DET V-PS [0 ~ 40] : Define the vertical start position of the monitoring area. DET H-SIZE [0 ~ 60] : Define the horizontal size of the monitoring area.

  • Page 33: Exit

    ’ ’ FRAME RATE [25 FPS, 30 FPS] : Choose a frame rate. CVBS [PAL, NTSC] : Select the video format that matches the present TV system RESET [ON↓] : All settings will be restored to factory default. Press the Set button in the exit menu to save the current settings and exit the Set Up menu. 6.11.
