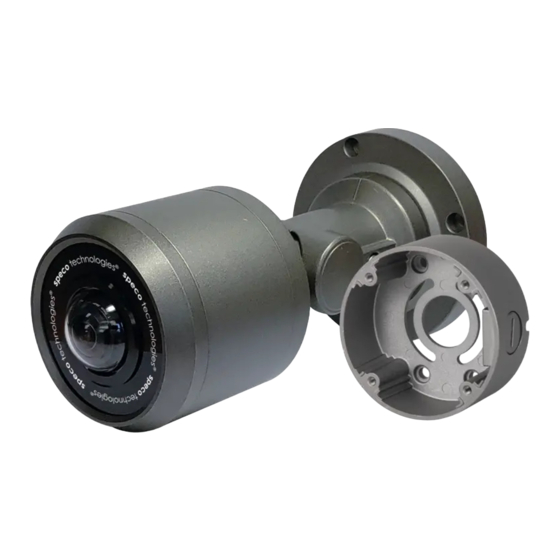

Speco H4FB1 Instruction Manual

4mp flexible intensifier technology tvi 180degree camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION
MANUAL
4MP Flexible Intensifier Technology
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco(180 Degree).indd 1
TVI 180Degree Camera
(Bullet Camera)
H4FB1
Rev. 01/01/2021
2021-01-08 오후 2:43:11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H4FB1 and is the answer not in the manual?

Questions and answers

Related Manuals for Speco H4FB1

Summary of Contents for Speco H4FB1

  • Page 1 4MP Flexible Intensifier Technology TVI 180Degree Camera H4FB1 (Bullet Camera) Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 01/01/2021 Speco(180 Degree).indd 1 2021-01-08 오후 2:43:11...

  • Page 2: Table Of Contents

    ◑ Camera Installation ........7-8 ◑ Specifications ..........9 ◑ Camera Dimension ........10 ◑ Features ............11 ◑ OSD Menu Details ........12- 25 ◑ Trouble Shooting ......... 26 ◑ - 2 - Speco(180 Degree).indd 2 2021-01-08 오후 2:43:11...

  • Page 3: Precautions

    * If the camera is exposed to spotlight or object reflecting strong light, smear or blooming may occur. * please check that the power satisfies the normal specification before connecting the camera. - 3 - Speco(180 Degree).indd 3 2021-01-08 오후 2:43:13...
  • Page 4 CAUTION : To prevent electric shock and risk of fire hazards: Do NOT use power sources other than those specified. - 4 - Speco(180 Degree).indd 4 2021-01-08 오후 2:43:16...

  • Page 5: Safety Instructions

    ◑ Please insure that your installation area can support the weight of the camera Please handle this camera carefully : ◑ Do not use a strong or abrasive detergent when cleaning the camera ◑ Do not install near cooling or heating device - 5 - Speco(180 Degree).indd 5 2021-01-08 오후 2:43:16...

  • Page 6: Package Contents

    Package Contents Please make sure that the following items are included in the Package: 1) H4FB1 Included Junction Box • 1 Power Jack • 1 Mount Base Sticker • 1 Wrench • Set Screw - 4 Tapping Screws 4x25 - 4 Hexagon Socket Screws M4x14...

  • Page 7: Camera Installation

    R E D (+) A C 24V L B A C K :(-) P owe r S upply 3. CONNECT VIDEO CABLE CONNECT BLACK COLOR BNC CABLE TO THE BNC JACK. - 7 - Speco(180 Degree).indd 7 2021-01-08 오후 2:43:16...
  • Page 8 Camera Installation Compatibility 1) H4FB1 INTCM - 8 - Speco(180 Degree).indd 8 2021-01-08 오후 2:43:17...

  • Page 9: Specifications

    Dual Voltage : DC12V 250mA / AC24V 120mA ±10%(MAX) Operating Temperature -10 ~ +50 Deg C. RH 95% Max. Storage Temperature -20 ~ +60 Deg C. RH 95% Max. Dimensions 3.12"(Dia)*7.46"(H) Weight 1.5 Ibs - 9 - Speco(180 Degree).indd 9 2021-01-08 오후 2:43:19...

  • Page 10: Camera Dimension

    Camera Dimension 1) H4FB1 7.46” 3.36” 2.33” - 10 - Speco(180 Degree).indd 10 2021-01-08 오후 2:43:19...

  • Page 11: Features

    TV system is switchable 'NTSC' or 'PAL' with built-in OSD. Intelligent Function ● An extraordinary technology that enables Speco Technologies TVI to become the ultimate solution by providing intelligent features based on motion detection. It also strengthens crime prevention and detection.

  • Page 12: Osd Menu Details

    How to Set Up the camera menu ● Setup Menu MENU SPECO PRESET MODE default INDOOR OUTDOOR LOWLIGHT HALLWAY LOBBY ELEVATOR DC LENS : INDOOR DC LENS : OUTDOOR DC LENS : INDOOR DC LENS : INDOOR DC LENS : INDOOR...
  • Page 13 ZONE DISP ON/OFF POS0-X default : 80 POS0-Y default : 5 POLYGON POS1-X default : 88 POS1-Y default : 5 POS2-X default : 88 POS2-Y default : 13 POS3-X default : 80 - 13 - Speco(180 Degree).indd 13 2021-01-08 오후 2:43:20...
  • Page 14 FULL IMAGE RANGE COMP 8.SYSTEM USER OFFSET 0~32 default : 10 RETURN LANGUAGE ENG, CHN, CHN(S), JPN, KOR RIGHT UP CAM TITLE LEFT DOWN RESET ON-PUSHING RETURN (SAVE/CANCEL) 9.EXIT SAVE/CANCEL 3.EXIT - 14 - Speco(180 Degree).indd 14 2021-01-08 오후 2:43:20...
  • Page 15 2. EXPOSURE 3. BACKLIGHT 4. DAY&NIGHT AUTO 5. WHITE BAL AUTO 6. SPECO DNR MIDDLE 7. IMAGE 8. SYSTEM 9. EXIT 3. Change menu settings using the Left or Right button. * Available values or Status are displayed by pressing the Left or Right buttons.
  • Page 16 2. EXPOSURE 3. BACKLIGHT 4. DAY&NIGHT AUTO 5. WHITE BAL AUTO 6. SPECO DNR MIDDLE 7. IMAGE 8. SYSTEM 9. EXIT ◆ ALC[ON/OFF] : Automatic Lens Control (ALC) is easily adjusted fixed lens field of view angle adjustment. 2. EXPOSURE 1.
  • Page 17 On this menu, backlight image can be compensated by users selecting one of modes. (HLC, BLC, WDR) 1. Move the triangular indicator to BACKLIGHT on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the left or Right button. - 17 - Speco(180 Degree).indd 17 2021-01-08 오후 2:43:21...
  • Page 18 2. EXPOSURE 3. BACKLIGHT 4. DAY&NIGHT AUTO 5. WHITE BAL AUTO 6. SPECO DNR MIDDLE 7. IMAGE 8. SYSTEM 9. EXIT ◆ Off : Deactivated status. ◆ HLC : This function is used to surpress or strong light source (for example, headlights of cars during nighttime) so that other subjects can be seen in more detail.
  • Page 19 You can change the color mode of color or black / white by setting up the mode. 1. Select Day&Night using the Up or Down button on the Set Up menu screen. 2. Select the desired mode using the Left or Right buttons. - 19 - Speco(180 Degree).indd 19 2021-01-08 오후 2:43:22...
  • Page 20 2. EXPOSURE 3. BACKLIGHT 4. DAY&NIGHT AUTO 5. WHITE BAL AUTO 6. SPECO DNR MIDDLE 7. IMAGE 8. SYSTEM 9. EXIT ◆ INTENSIFIER : The bright screen can be displayed by sensing the degree of the darkness automatically under the circumstance of low light condition or at night.
  • Page 21 2. EXPOSURE 3. BACKLIGHT 4. DAY&NIGHT AUTO 5. WHITE BAL AUTO 6. SPECO DNR MIDDLE 7. IMAGE 8. SYSTEM 9. EXIT ◆ AUT0 : Use this mode when the color temperature is from 3,000k to 8,000k. ◆ AWB : The function to search for the color which is matched well with the ambient environment.
  • Page 22 You can set different levels here. 1. Move the triangular indicator to SPECO DNR by useing the Up and Down button. 2. Select the mode to use by pressing the left or Right button and OFF/LOW/MIDDLE/HIGH level selectable.
  • Page 23 15 area. The size of a designated area can be adjusted. The color of a privacy area can be selected various colors. When you select the return, the setting values in this function menu are saved, then get out of this menu. - 23 - Speco(180 Degree).indd 23 2021-01-08 오후 2:43:23...
  • Page 24 This can be used when you want to select the additional function control. 1.When the SETUP menu is displayed, select SYSTEM using the Up and Down button. 2. Select one of the mode using the Up and Down button. - 24 - Speco(180 Degree).indd 24 2021-01-08 오후 2:43:23...
  • Page 25 MENU 1. ALC 2. EXPOSURE 3. BACKLIGHT 4. DAY&NIGHT AUTO 5. WHITE BAL AUTO 6. SPECO DNR MIDDLE 7. IMAGE 8. SYSTEM 9. EXIT 8.SYSTEM VIDEO OUTPUT IMAGE RANGE FULL LANGUAGE CAM TITLE RESET RETURN ◆ VIDEO OUTPUT - OUTPUT : TVI.

  • Page 26: Trouble Shooting

    In case the focusing does not work, please do the following to correct this problem. Menu -> 1. 2MOTOR -> 3. ONEPUSHAF -> Push the “ON” button for 1 second. -> The Auto Focusing will begin upon changing to “PUSHING”. - 26 - Speco(180 Degree).indd 26 2021-01-08 오후 2:43:23...
  • Page 27 - 27 - Speco(180 Degree).indd 27 2021-01-08 오후 2:43:24...
  • Page 28 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com Speco(180 Degree).indd 28 2021-01-08 오후 2:43:25...
