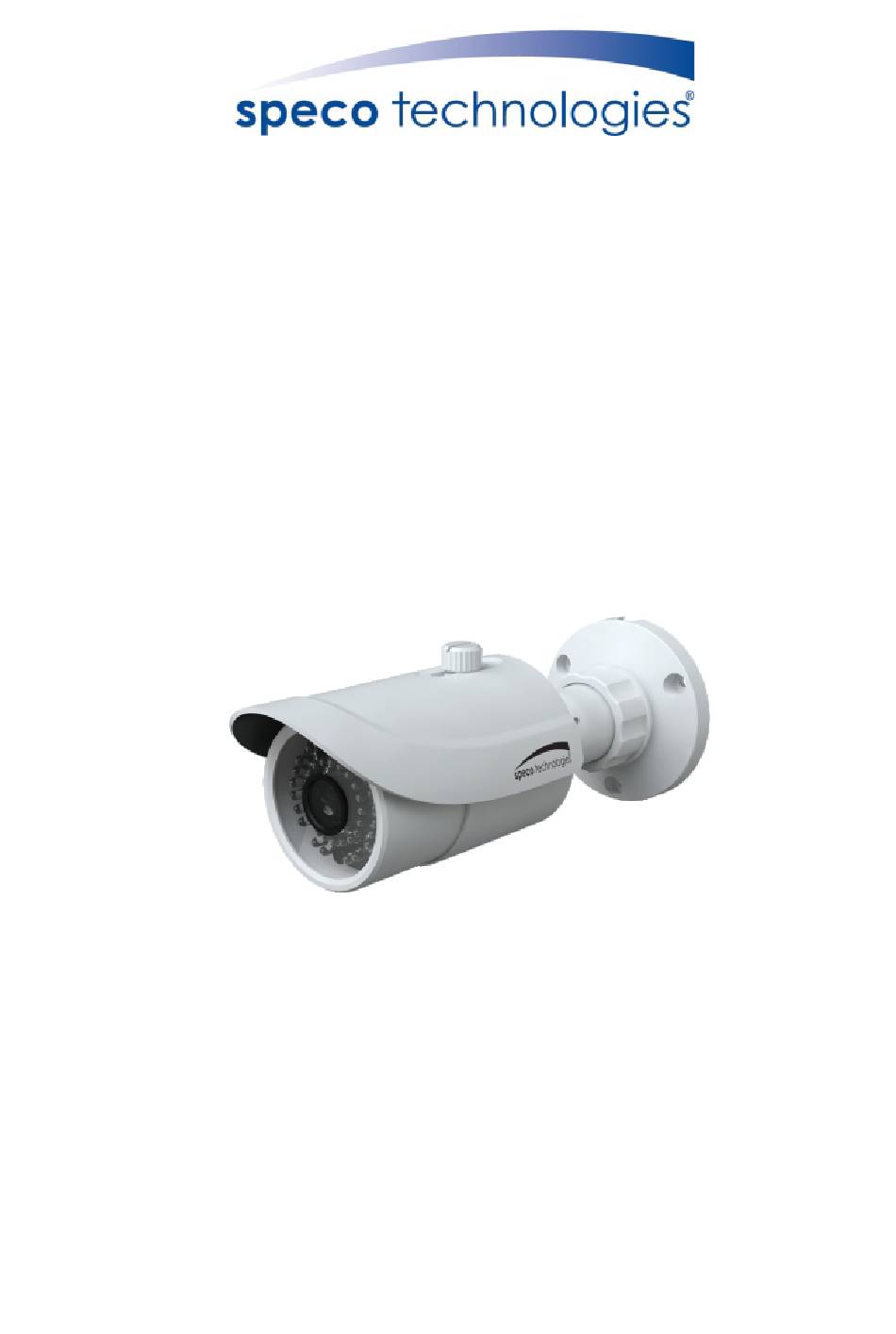

- Page 1 Quick Start Guide O2VLB6...
- Page 2 Warning and Caution ■ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Any unauthorized changes or modifications could void the warranty. ■ Do not allow water or liquid intrusion into the camera. ■...
- Page 3 3 tapping screws PA 4×25 Quick start guide Camera 1 machine screw PWM3×5 × 3 Water proof cap Plastic plug Rubber plug Drill template Adapter Plate Overview Overview Sun-shield Network Cable Fixed Ring MIC IN Cable Mounting Base Power Cable...
- Page 4 DC12V * 1 It is recommended to install the water-proof cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ① Loosen the nut from the main element. ②...
- Page 5 Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Install junction box onto the wall by using the screws provided. ② Mount the rubber plug to the gap of the mounting base and fasten the camera onto the adapter plate.
- Page 6 ③ Connect the cables and then install the camera onto the junction box as shown below. Water-proof Ring Adapter Plate ④ Bracket Adjustment-Loosen the fixed ring to adjust the view angle of the camera. After you get the optimum angle of view, tighten the fixed ring to complete the installation.
- Page 7 Web Operation IP Scanner can search for the device on the local network. ● Operation ① Make sure that the camera and the PC are connected to the same local network. The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. ③...
- Page 8 The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins. 450043000617 A0...
