Speco ONSIP O2PTZ22D5W Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
O
O
N
N
S
S
I
I
P
P
O
O
2
2
P
P
T
T
Z
Z
2
2
2
2
D
D
5
5
W
W
,
,
1.
O2PTZ22D5W
O2PTZ34D5W
(
OUTDOOR
'
'
O
O
2
2
P
P
T
T
Z
Z
3
3
4
4
D
D
5
5
W
W
U
U
s
s
e
e
r
r
s
s
G
G
u
u
ONSIP
/
INDOOR
i
i
d
d
e
e
1080
Rev.1.6 (June. 2013)
)
P
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONSIP O2PTZ22D5W and is the answer not in the manual?

Questions and answers

Related Manuals for Speco ONSIP O2PTZ22D5W

Summary of Contents for Speco ONSIP O2PTZ22D5W

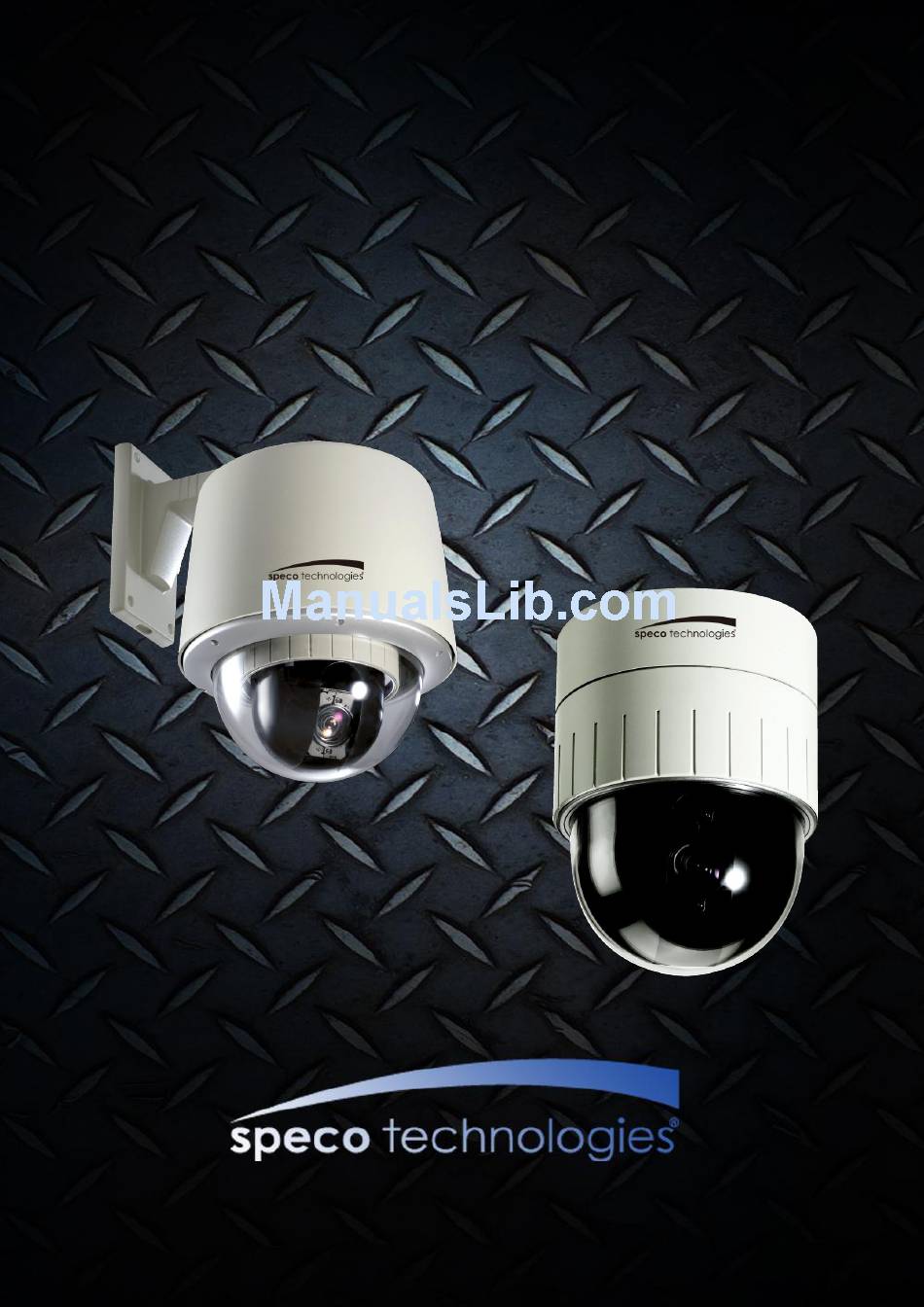

  • Page 1 ’ ’ ONSIP O2PTZ22D5W O2PTZ34D5W 1080 OUTDOOR INDOOR Rev.1.6 (June. 2013)

  • Page 2: Revision History

    ’ ’ Revision History Date Rev No. Description Sept,1 , 2012 First manual revision creation. Nov,5 , 2012 Updated Specification Mar.3 ,2013 Updated picture May 24 , 2013 Text revisions June, 19 , 2013 Updated package contents, drawings Rev.1.6 (June. 2013)
  • Page 3 ’ ’ Warning & Cautions If you fail to read this information and handle the product incorrectly, faulty or malfunction as well as death or serious injury may occur. This Unit should be installed by train ed personnel. Immediately stop using when the product emits smoke or abnormal heat.
  • Page 4 ’ ’ Indications: Warning: Death or Serious Injury will occur without following Warning. Caution : Operational Problem(Faulty & Malfunction) will occur without complying with Caution Reference : Technical Information for Users Rev.1.6 (June. 2013)

  • Page 5: Table Of Contents

    ’ ’ Table of Contents Table of Contents ................5 1. Introduction ................7 1.1. Overview of O2PTZ22D5W, O2PTZ34D5W ..........7 1.2. Specification ................... 8 1.2.1. Basic Specification ........................8 1.3. Application of O2PTZ22D5W, O2PTZ34D5W ..........9 2. Production Description ............... 10 2.1.

  • Page 6: Troubleshooting

    ’ ’ 4.2. Quick Installation Guide ............... 28 5. Troubleshooting ................. 34 5.1. No Video on Viewer ................34 5.2. Windows vista and Windows 7 User for Record & Capture Problem ..35 5.3 Technical Inquiry ................... 38 6. Appendix ................... 39 6.1.

  • Page 7: Introduction

    ’ ’ 1. Introduction O2PTZ22D5W(Outdoor), O2PTZ34D5W(Indoor), is a state-of-the-art Speed Dome Network Camera based on integrated Embedded Software technologies such as H.264 & MJPEG, G.726 & PCM Video & Audio Compression, Embedded Web Server, Embedded Streaming Server, various Network Protocols, transmits synchronized video and audio data in real time through IP Network as well as supports bi-directional audio communication by allowing transmission of audio from Client PC to the camera...

  • Page 8: Specification

    Simple Access via Internet explorer Client/Viewer Speco-NVR VMS Software Dynamic IP DDNS support Free DDNS support through Speco Technologies 802.1x authentication, User ID & Password Protection, IP Security Management Filtering, Audio per user and Bi-directional audio communication configuration control Sync to PC...

  • Page 9: Application Of O2Ptz22D5W, O2Ptz34D5W

    ’ ’ Security Surveillance (Building, Stores, Manufacturing Device, Parking Lot, Bank, Public Office & Military etc) Remote Monitoring (Hospital, Kindergarten, Traffic Status, Public Area) Video Conference, Remote Lecture, Internet Broadcasting Climate & Environment Surveillance Rev.1.6 (June. 2013)

  • Page 10: Production Description

    ’ ’ 2. Production Description Open the package and check if the followings are included; Contents Description Remark Bracket & Housing Outdoor Housing, Wall Mount Bracket Manual Housing Installation Manual IP Camera Camera body L-Wrench 1EA, Cable Tie 5EA, Tools & Accessories Terminal Block (2Pin, 5Pin, 6Pin : 1EA), Screw(Ø...

  • Page 11: O2Ptz22D5W(Outdoor)

    ’ ’ O2PTZ22D5W(Outdoor) VMS Software IP-Installer O2PTZ34D5W(Indoor) (Speco-NVR) PC based Client for monitoring/storing Video/Audio Speed Dome Network Camera IP Assignment Program transmitted form Product (Max. 64CH supported@D1) Rev.1.6 (June. 2013)

  • Page 12: Physical Description

    ’ ’ Fig 2-1. External View of O2PTZ22D5W, O2PTZ34D5W & & 12VDC Fig 2-2-1. Terminal Block, LAN & Power Connector Rev.1.6 (June. 2013)

  • Page 13: External & Internal View

    ’ ’ Fig 2-2-2. Terminal Block, LAN & Power Connector & & Fig 2-3-1. Connector Part Rev.1.6 (June. 2013)
  • Page 14 ’ ’ Fig 2-3-2. Connector Part Fig 2-4. Outdoor Housing Rev.1.6 (June. 2013)

  • Page 15: Functional Description

    Connect 12 Volt DC adapter to this terminal for supplying power to the network camera. AC adapter which is compliant to the specification for the camera should be used. Misuse of power supply can cause damage to the unit. Speco assumes no responsibility for misuse of the power supply.
  • Page 16 ’ ’  HEATER/FAN Used for connecting power cable of heater and fan. Power cable of heater and fan is in the bracket.  Alarm In/Out (ALARM/AUX) Used for connecting alarm sensor, alarm annunciation device. Class Description Alarm IN Sensor In (+). NC/NO Selectable in Admin Mode Alarm IN GND Ground for Sensor In Aux OUT...
  • Page 17 ’ ’ Photo Coupler NO/NCType Open CollectorType Sensor1+ Sensor Sensor Device Device Sensor1- +12V Sensor Sensor Power Power Supply Supply Fig 2-6. Sensor Input Connection Diagram Rev.1.6 (June. 2013)

  • Page 18: Bracket Installation

    ’ ’ 3. Bracket Installation 3.1. O2PTZ22D5W(OUTDOOR) & & 1. Open the Dome Cover by unscrewing with wrench. Rev.1.6 (June. 2013)
  • Page 19 ’ ’ 2. Configure the DIP Switch by referring Appendix. When using system controller for the control of the dome, always set the RS-485 communication channel to be: 2400 bps, 8 bit, 1 stop bit, no parity. 3. Place the Dome Cover and screw. Rev.1.6 (June.

  • Page 20: Installation Using Walling Mount Type

    ’ ’ The wall should be strong enough to hold 4 times of the weight of the camera (5.3 KG). This means that the wall should withstand weight of 21.2 KGs in the minimum. 1. Pass the combined cable through the inside Cable Gland. CABLE GLAND COMBINED CABLE 2.
  • Page 21 ’ ’ Hidden Cable Exposed Cable 3. Connect Sun-Visor with Wall Mounting Bracket. (1) 4. After connecting Product and Cable, install the product by inserting Product into internal fixing hole of housing and turning in clockwise. (2) 5. Assemble the Bubble. (3) Rev.1.6 (June.

  • Page 22: O2Ptz34D5W(Indoor)

    ’ ’ 3.2 O2PTZ34D5W(INDOOR) 1. Open the Dome Cover by unscrewing with wrench. 2. Configure the DIP Switch by referring Appendix. When using system controller for the control of the dome, always set the RS-485 communication channel to be: 2400 bps, 8 bit, 1 stop bit, no parity. Rev.1.6 (June.

  • Page 23: Installation Using Ceiling Mount Type

    ’ ’ 3. Place the Dome Cover and screw. Ceiling board should be strong enough to hold the weight of approx.. 2Kg. Rev.1.6 (June. 2013)

  • Page 24: Installation Using Embedded Mount Type

    ’ ’ 1. Prepare 190mm Diameter Hole on the ceiling. 2. Place Safety Wire between suspension and Safety Ire Hole to prevent falling-off. 3. Fold the Lock Lever and insert the bracket into the ceiling hole. 4. Fix the bracket to the ceiling with screws. Rev.1.6 (June.
  • Page 25 ’ ’ Prepare 190mm Diameter Hole on the Place Safety Wire between suspension Ceiling. and Safety Wire Hole to prevent falling- off. Fold the Lock Lever and insert the Bracket into the Ceiling Hole. Fix the Bracket to the Ceiling with Screws. 5.
  • Page 26 ’ ’ Rev.1.6 (June. 2013)

  • Page 27: Installation

    ’ ’ 4. Installation Required Specification of PC for Camera Configuration & Control. Class Recommendation Remark Pentium-4 3Ghz Graphic Card Higher than ATI Chip-Set based 64MB 1920x1080 resolution LAN Card Higher than 100Mbps Windows XP Web Browser Higher than Internet Explorer 6.0 * Operating Systems supported: Windows 2000 Professional, Windows XP / Vista / 7 Rev.1.6 (June.

  • Page 28: Quick Installation Guide

    Connect PC with Product as in Fig 4-1. 3. Install Speco-NVR Speco-NVR is a multi-channel VMS program for to IP camera or Video server. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection.
  • Page 29 ’ ’ Admin Page Button IP installer Figure 4-2. Speco-NVR Follow the sequence below for setting the IP parameter Run IP installer Click (1) in ONSIP installer window.> Double click on (2) > Fill in (4) > make a selection in (5) > Fill the...
  • Page 30 ’ ’ Click on the field in (3) for sorting and rearranging the list. Select network mode that best suits from the drop down list in (5). You can choose either Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in (6) are deactivated.
  • Page 31 For the use of Web Viewer, Active-X module should be installed. If internet access is available, you can download it by accessing Camera or if you install Speco-NVR, Active-X module will be installed together. Connection to Admin Page Basic Control Buttons Video Crop Control Fig 4-3.
  • Page 32 SAVE button. You can see the live video when you click the live view button as below. When you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for the Speco-NVR can be found in [Speco-NVR User’s Guide].
  • Page 33 ’ ’ 4. Initial Configuration by connecting Admin Mode All Parameters of O2PTZ22D5W are initially set as factory default. So you must change them with appropriate value to your network configuration by accessing via Admin Tool. Admin Tool Access Method is as below. Http://[IP Address]:[HTTP Port No.]/ admin.htm Admin Tool Access ID / Password: admin /...

  • Page 34: Troubleshooting

    ’ ’ 5. Troubleshooting  Network Connection Status Check(Ping Test) You can check the Network Connection Status by doing Ping Test. - Start > Run > cmd > Ping IP Address (EX>ping 172.16.42.51). - If you get the response such as “Reply from~”, Network Configuration & Connection Status is good. Please re-try to access or refer to other trouble shooting category.

  • Page 35: Windows Vista And Windows 7 User For Record & Capture Problem

    & & For the use of Video Recording & Capture function on Speco-NVR and Web Viewer, Windows Vista and Windows 7 Users are required to configure “User Account Configuration” and “Program Execution Entitlement Configuration”. If not configure, Recorded File won’t be generated or Captured Image on Web Viewer won’t be saved.
  • Page 36 ’ ’ Windows 7 Configuration 1. User Account Configuration 1) Select “User Account” on Control Panel 2) Select “Change User Account Control Setting” 3) Set the Alarm Level at the lowest “Never Notify” Rev.1.6 (June. 2013)
  • Page 37 ’ ’ 2. Program Execution Entitlement Configuration 1) Select “NVR” icon on the wallpaper 2) Select “Properties” menu popped up by clicking right button on Mouse 3) Select Check Box of “Run this program as an administrator” from the compatibility Tap. Rev.1.6 (June.

  • Page 38: Technical Inquiry

    ’ ’ Please contact to your supplier if you still have problem even taking all trouble shootings. For the quickest solution, please prepare all information below; 1. Product Model Name 2. Serial No. & Mac Address 3. Date of Purchase 4.

  • Page 39: Appendix

    ’ ’ 6. Appendix 6.1. FAN & Heater FAN & Heater are inside the housing of the Outdoor Speed Dome (O2PTZ22D5W). Cabling for the Fan & Heater is completed by the manufacturer FAN & Heater operate by connecting power cable of FAN & Heater to HEATER/FAN connector at bottom of product.

  • Page 40: Dip Switch Setting

    ’ ’ 6.2. DIP Switch Setting A. ID Configuration * Factory Default: Camera ID = 1 (1-ON, 0-OFF) DIP SW ID VALUE DIP SW ID VALUE DIP SW ID VALUE 10000000 00010100 11110010 01000000 10010100 00001010 11000000 01010100 10001010 00100000 11010100 01001010 10100000...
  • Page 41 ’ ’ 01101000 10111100 00100110 11101000 01111100 10100110 00011000 11111100 01100110 10011000 00000010 11100110 01011000 10000010 00010110 11011000 01000010 10010110 00111000 11000010 01010110 10111000 00100010 11010110 01111000 10100010 00110110 11111000 01100010 10110110 00000100 11100010 01110110 10000100 00010010 11110110 01000100 10010010 00001110 11000100 01010010...
  • Page 42 ’ ’ 11100001 10101101 11000111 00010001 01101101 00100111 10010001 11101101 10100111 01010001 00011101 01100111 11010001 10011101 11100111 00110001 01011101 00010111 10110001 11011101 10010111 01110001 00111101 01010111 11110001 10111101 11010111 00001001 01111101 00110111 10001001 11111101 10110111 01001001 00000011 01110111 11001001 10000011 11110111 00101001 01000011...
  • Page 43 ’ ’ B. PROTOCOL Set by 3 Switch of DIP Switch 2. Factory Default: Pelco-D & Pelco-P (Auto) DIP SW2 - 3 OFF / OFF Pelco-D or Pelco-P ON / ON Maxpro protocol C. BAUD RATE SETTING Set by 7 Switch of DIP Switch 2.
