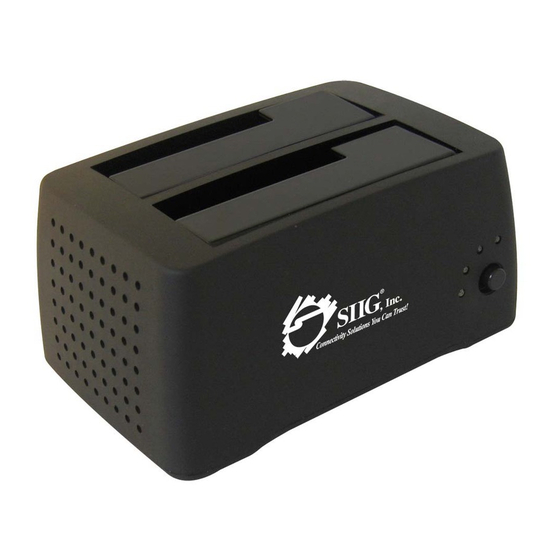

Introducing the Cool SATA to USB 2.0
The Cool Dual SATA to USB 2.0 Docking is designed to
support USB equipped computers.
provides large capacity mobile storage using 2.5" or 3.5"
SATA hard disk drives through high-speed, hot-
swapping USB 2.0 interface.
Features and Benefits
•
Compliant with USB 1.1 and 2.0 specifications
•
Supports data transfer rate up to 480 Mb/s
•
Built-in silent cooling fan effectively extends hard
disk drive life
•
Dual-bay design works with 2.5- and 3.5-inch (or
mix) SATA hard disk drives
•
Supports SATA 1.5/3 Gb/s hard disk drive capacity
up to 750 GB (2.5-inch) and 2 TB (3.5-inch)
•
Plug and Play, no additional drivers needed
•
Supports USB hot-swap and hot-plug
System Requirements
•
PC or Mac
(USB 2.0 recommended)
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) /
2000
•
Mac OS
04-0523B
Cool Dual SATA to
USB 2.0 Docking
Quick Installation Guide
computer with an available USB port
®
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
X v10.4.8 or higher
®
This adapter
1
Advertisement
Table of Contents
Related Manuals for SIIG Cool Dual SATA to USB 2.0 Docking
Summary of Contents for SIIG Cool Dual SATA to USB 2.0 Docking
-
Page 1: Quick Installation Guide
Cool Dual SATA to USB 2.0 Docking Quick Installation Guide Introducing the Cool SATA to USB 2.0 The Cool Dual SATA to USB 2.0 Docking is designed to support USB equipped computers. This adapter provides large capacity mobile storage using 2.5" or 3.5"... -
Page 2: Package Contents
Package Contents • Cool Dual SATA to USB 2.0 Docking • Switching power adapter • USB 2.0 cable (type A to type B) & rubber pads • Quick installation guide Layout SATA Drive Slot LED (Two LED's stay on while the unit is on) On/Off Switch HDD LED (One LED per HDD;... -
Page 3: Hardware Installation
Use the included USB 2.0 cable to plug the Cool Dual SATA to USB 2.0 Docking into the computer. Switch on the Cool Dual SATA to USB 2.0 Docking, make sure that the 3 Power LEDs are lit. Note: Do not insert or remove a hard disk drive when the Cool Dual SATA to USB 2.0 Docking is... - Page 4 Disconnecting From The Computer Important: Do not insert or remove a hard disk drive from the Cool Dual SATA to USB 2.0 Docking while powered on, doing so will damage the hard disk drive. Before unplugging the Cool Dual SATA to USB 2.0 Docking from the computer, it must first be stopped, by using Windows Safely Remove Hardware feature.
- Page 5 Windows Vista Verify that the HDD LED(s) are OFF before proceeding. Double click the Unplug or Eject Hardware icon located in the system tray. Highlight USB Mass Storage Device, click Stop. Click OK, click OK again, then Close. You can now unplug or turn off the Cool Dual SATA to USB 2.0 Docking.
- Page 6 Disconnecting From The Computer Before unplugging the Cool Dual SATA to USB 2.0 Docking from the computer, drag the drive icon(s) into the Trashcan and wait for the confirmation box. The same rule applies when turning off the Cool Dual SATA to USB 2.0 Docking.
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 Cool Dual SATA to USB 2.0 Docking is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Mac and Mac OS are registered trademarks of Apple, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
