Introduction

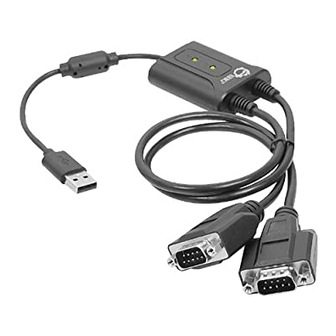

The 2-Port USB to RS-232 Serial Adapter adds two
9-pin serial ports to your USB-equipped system.
Key Features and Benefits
•
Supports data transfer rate up to 230Kb/s
•
USB plug-n-play and bus-powered
•
Connectors: USB type-A (male); 2x 9-pin
RS-232 serial (male)
Serial Number Sticker
For future product return or exchange, this serial
number is required. Please keep it for your
reference.
04-0725A
2-Port USB to RS-232
Serial Adapter
Quick Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2-Port USB to RS-232 Serial Adapter and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG 2-Port USB to RS-232 Serial Adapter

Summary of Contents for SIIG 2-Port USB to RS-232 Serial Adapter

  • Page 1 2-Port USB to RS-232 Serial Adapter Quick Installation Guide Introduction The 2-Port USB to RS-232 Serial Adapter adds two 9-pin serial ports to your USB-equipped system. Key Features and Benefits • Supports data transfer rate up to 230Kb/s • USB plug-n-play and bus-powered •...

  • Page 2: System Requirements

    System Requirements • USB equipped computer with an available USB port • Windows 7 (32-/64-bit) / Vista (32-/64- ® bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000 Package Contents • 2-Port USB to RS-232 Serial Adapter •...

  • Page 3: Installation

    Installation Make sure the driver is installed before plugging the Serial Adapter into the computer. Windows 7 (32-/64-bit) At the Windows desktop insert the driver At the AutoPlay box: Click Run autorun.exe. If AutoPlay doesn't start: Click Start, in the Search programs and files box, type D:\autorun.exe, then press Enter.

  • Page 4: Windows Vista (32-/64-Bit)

    Windows Vista (32-/64-bit) At the Windows desktop insert the driver At the AutoPlay box: Click Run autorun.exe. If AutoPlay doesn't start: Click Start, in the Search programs and files box, type D:\autorun.exe, then press Enter. (Change D: to match your CD-ROM drive letter) At USB to Serial Adapter screen, click Install Driver, then click USB 2/4/8-Port Serial.
  • Page 5 Windows XP (32-/64-bit) / Server 2003 (32-/ 64-bit) / 2000 At the Windows desktop insert the driver Note: Most systems will start installing the driver once the driver CD is inserted. If so, skip step #2 and go directly to step #3. If AutoPlay doesn't start, click Start, Run, type D:\autorun.exe, then click OK.
  • Page 6 Windows Server 2008 (32-/64-bit) / 2008 R2 At the Windows desktop insert the driver At the AutoPlay box: Click Run autorun.exe. If AutoPlay doesn't start: Click Start, in the Search programs and files box, type D:\autorun.exe, then press Enter. (Change D: to match your CD-ROM drive letter) At USB to Serial Adapter screen, click Install Driver, then click USB 2/4/8-Port Serial.

  • Page 7: Device Manager

    To Verify Installation Check Device Manager verify installation. For Windows 7: Right click Computer, click Manage. For Windows Vista: Right click Computer, click Manage, click Continue. For Server 2008 / 2008 R2: Right click Computer, click Manage, double click Diagnostics. For XP / Server 2003 / 2000: Right click My Computer, click Manage.
  • Page 8 Changing COM Port Number Some serial devices need a specific COM port in order to work. If your serial device works properly, do not change this setting. From Device Manager double click Ports (COM & LPT), then double click the High-Speed USB Serial Port port you want to change.
  • Page 9 Blank Page...
  • Page 10 Blank Page...

  • Page 11: Technical Support And Warranty

    (5) years from the date of purchase of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
  • Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 2-Port USB to RS-232 Serial Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
