Introducing the CyberParallel PCIe

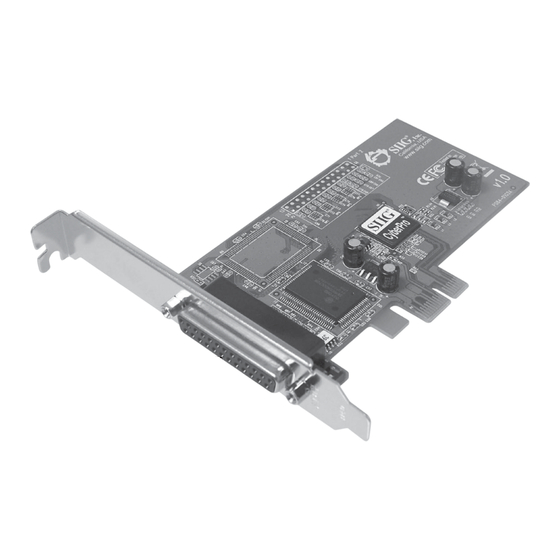

The CyberParallel PCIe high-speed parallel adapter
provides one additional parallel port to your PCI Express
enabled system.
Features and Benefits
•
Compliant with PCI Express Base Specification
Revision 1.0a
•
PCI Express 1-lane (x1) parallel adapter works with
PCI Express slots with different lane width
•
Full support for Windows-based software
•
Supports EPP/ECP and SPP (standard) parallel
port modes
System Requirements
•
PCI Express enabled system with an available PCI
Express slot
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
Package Contents
•
CyberParallel PCIe adapter
•
Spare enhanced low-profile bracket
•
Driver CD
•
Quick installation guide
04-0422C
CyberParallel PCIe
Quick Installation Guide
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG CyberParallel PCIe
Summary of Contents for SIIG CyberParallel PCIe
-
Page 1: Quick Installation Guide
CyberParallel PCIe Quick Installation Guide Introducing the CyberParallel PCIe The CyberParallel PCIe high-speed parallel adapter provides one additional parallel port to your PCI Express enabled system. Features and Benefits • Compliant with PCI Express Base Specification Revision 1.0a • PCI Express 1-lane (x1) parallel adapter works with PCI Express slots with different lane width •... -
Page 2: Hardware Installation
Layout Parallel Port Figure 1. Layout Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer s reference ’ manual for further information, if needed. Static Electricity Discharge may permanently damage your system. -
Page 3: Driver Installation
Replace the computer cover and reconnect the power cord. Driver Installation This section provides information on how to install the CyberParallel PCIe drivers. Windows 7 (32-/64-bit) Install the board and boot up Windows. Note: Windows 7 will automatically search preconfigured driver folders for the proper driver, this process may take several minutes to complete. - Page 4 At the Found New Hardware window, insert the driver CD, click Locate and install driver software (recommended), then click Continue. Click Don't search online. Click Next. Click Close to complete the installation. Windows XP (32-bit ) / Server 2003 (32-bit) Install the board and boot up Windows.
- Page 5 At the Found New Hardware window, click Locate and install driver software (recommended). Insert the driver CD. Click Don't search online. Click I don't have the disc. Show me other options. Click Browse my computer for driver software (advanced). Type D:, then click Next. (Change D: to match your CD/DVD-ROM drive letter) Click Close to complete the installation.
- Page 6 Manage, double click Diagnostics, then click Device Manager. Click on the + (plus sign) in front of Ports (COM & LPT), and a SIIG CyberPro Parallel port ... should be displayed. Changing Parallel Port Number Some parallel port devices need a specific LPT in order to function properly.
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 CyberParallel PCIe is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
