Summary of Contents for SIIG CB-TC0611-S1

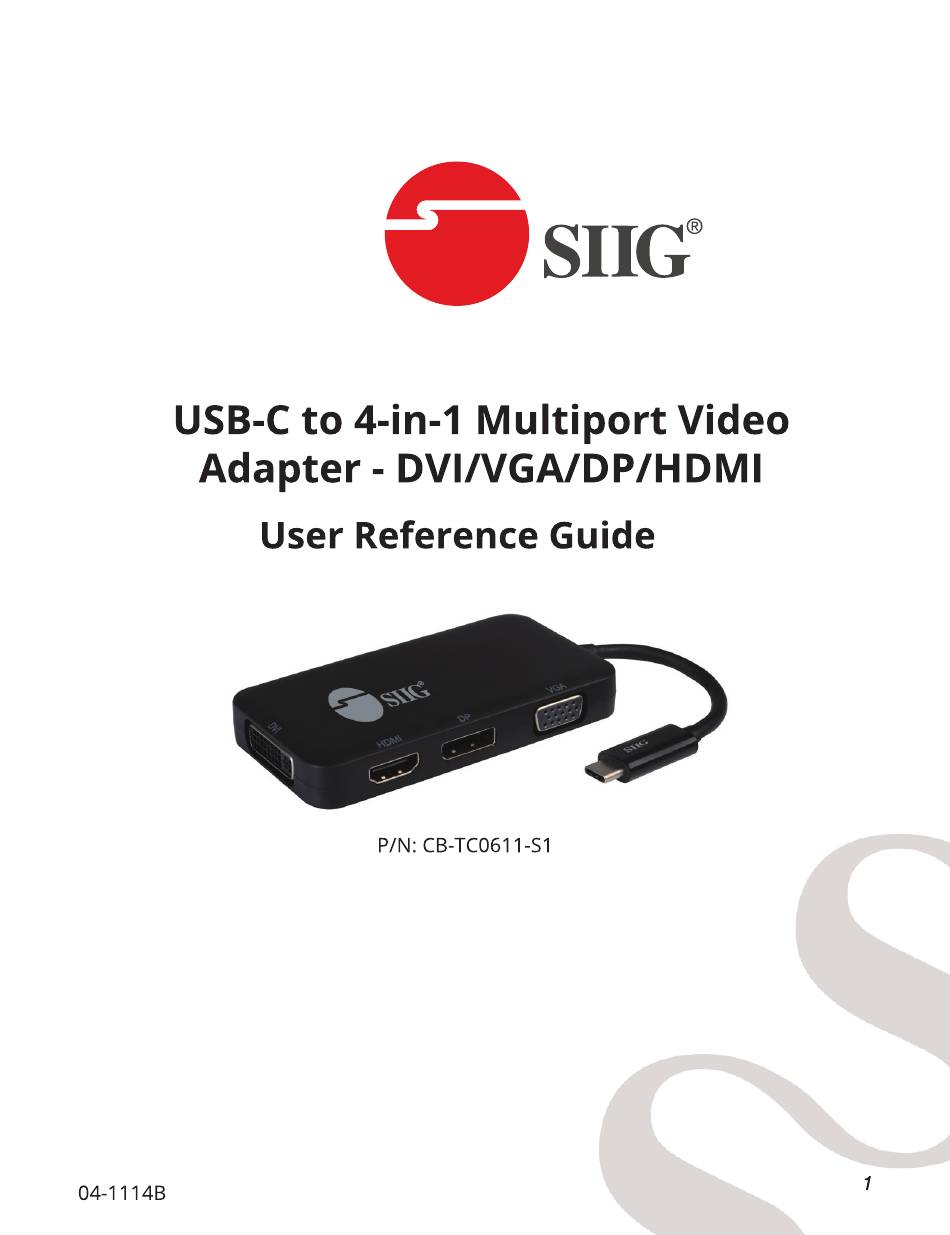

- Page 2 Introduction The USB-C to 4-in-1 Multiport Video Adapter - DVI/VGA/DP/HDMI connects your USB-C computer (DP Alt Mode) to a DVI, VGA, DP or HDMI display. Key Features and Benefits S u p p o r t s h i g h r e s o l u t i o n s u p t o •...
- Page 3 Specifications Chipset VL100 / PS8338B / PS8348B / IT6561 / IT6516 Input: 24-pin, USB-C, Male Output: Connectors 25-pin, DVI-D, Female 15-pin, D-sub VGA, Female 20-pin, Display, Female 19-pin, HDMI Type-A, Female DVI: Up to 1920x1080 VGA: Up to 1920x1080 Resolution Display: Up to 3840x2160@60Hz HDMI: Up to 3840x2160@30Hz Housing Material...

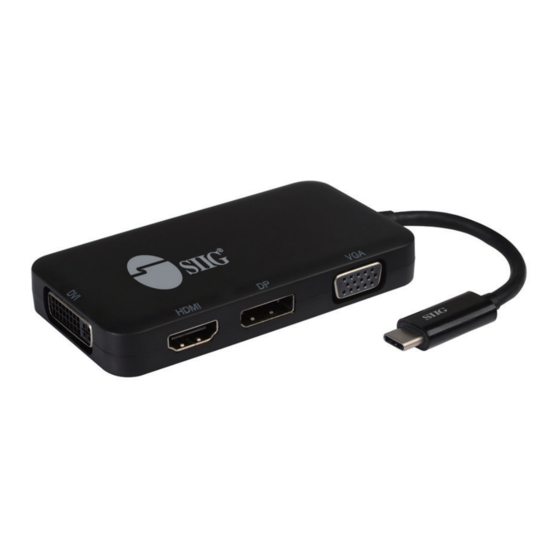

- Page 4 Product Layout HDMI DisplayPort USB-C Figure 1: USB-C to 4-in-1 Multiport Video Adapter - DVI/VGA/DP/HDMI DVI / HDMI / DisplayPort/ VGA port: • Select one of the video output ports, then connect your display / TV / projector with the appropriate cable (cable not included) USB-C: Connects to USB-C port of the •...
- Page 5 There is no audio output from DVI and VGA connection. The adapter will work properly only when the USB-C port transmits DisplayPort signal. FAQ & Solutions If I would like to switch to another video output of the adapter, how should I do? •...
- Page 6 Application USB-C to 4-in-1 Multiport Video Adapter instantly expands the compatibility between your USB-C computer and most mainstream displays i n c l u d i n g D V I , V G A , D P a n d H D M I f o r maximum convenience.
- Page 7 SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
- Page 8 USB-C to 4-in-1 Multiport Video Adapter - DVI/VGA/DP/HDMI is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
