Introduction

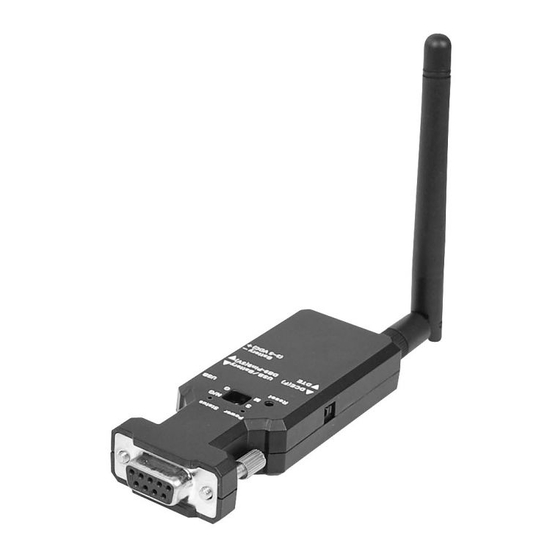

The RS-232 Serial to Bluetooth Adapter is designed
to easily allow any RS232 device to communicate
wirelessly.
Key Features and Benefits
Full Bluetooth 2.0 + EDR compliant
Selectable as Slave or Master mode
Bluetooth Class 1- 100M (300 feet)
Baud rate: up to 921.6Kb/s
Frequency: 2.400 to 2.4835 GHz
2 dBm ~ 18 dBm Class 1 RF output power

System Requirement

Windows
®
XP (32-/64-bit) / Server 2003 & 2008 (32-/64-
bit) / 2000
04-0775A
RS-232 Serial to Bluetooth
Adapter

Quick Installation Guide

7 (32-/64-bit) / Vista (32-/64-bit) /
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIIG RS-232

  • Page 1: Quick Installation Guide

    RS-232 Serial to Bluetooth Adapter Quick Installation Guide Introduction The RS-232 Serial to Bluetooth Adapter is designed to easily allow any RS232 device to communicate wirelessly. Key Features and Benefits Full Bluetooth 2.0 + EDR compliant • Selectable as Slave or Master mode •...
  • Page 2: Package Contents

    Package Contents RS-232 Serial to Bluetooth Adapter • External Dipole Antenna • USB Cable • Battery power line and connector • Quick installation guide • Layout Figure 1...
  • Page 3: Led Indicators

    LED Indicators See Figure 1 for the location of the LEDs. Please refer to the following chart for the status of LEDs. Status Description Power LED off/ on No power supply./Power input is equal or larger than 3.5 Volt Power LED blinking Power input is lower than 3.5 Volt (See command DETECT) Status LED off/ on No pairing established./ Connection established.
  • Page 4: Rs-232 (Serial)

    RS-232 (Serial) Connect the RS-232 port into any computer or serial device, see Figure 3. Figure3 Applications One to one Bluetooth - master Bluetooth - slave With Bluetooth USB Dongle Bluetooth- slave Bluetooth USB Dongle...
  • Page 5: Reset Button

    Reset Button Use a tip of a pen or other sharp object to access the reset button. To restore to factory default settings: press • and hold down the reset button for over 3 seconds. To disconnect and reconnect the wireless •...
  • Page 6: Hardware Installation

    Hardware Installation Fasten the antenna to the adapter and connect it to serial port of the PC. Power on. 2.1. Plug the included mini USB connector into the adapter's USB connector, then connect it to the PC. You can also choose from the following options.
  • Page 7 COM Port Configuration Guide Configure the parameters of the COM port. 1.1. Enter Hyper terminal or other terminal software to configure the adapter. Program> Accessories-> communications -> Hyper Terminal 1.2. Type in "Name", then click OK. The name is defined by yourself.
  • Page 8 1.3. Scroll to the COM port you are using to connect, and click OK. 1.4. Confirm the parameters as the following, to pair two devices for an exclusive connection between them.. Baud rate: 19200 bps Data bit: 8 Parity: none Stop bit: 1 Flow control: None 1.5.
  • Page 9 Terminal Equipment (ex: PCs). Select Slave for DCE mode, for Data Communication Equipment (ex: Modem). When you have two RS-232 Serial to Bluetooth Adapters, you have to set one in master mode via the terminal software. The adapter is in slave-mode by default, and you can choose either way to set the mode: 2.1.
  • Page 10: Dte & Dce Switch

    Set up the Group mode. The adapter is in N/G mode by default. The adapter can be set to G mode if you have more than two RS-232 Serial to Bluetooth Adapters, meaning this adapter is able to perform single to multiple transmission.
  • Page 11 Type DIP=Y to turn on the function of the DIP switch. After the function of DIP switch has turned on, you can adjust the switch to "G". Setup commands reference table. Besides the basic settings, you can check the following table for further applications: Note: Use all capital or all lowercase letters when typing the commands.
  • Page 12 Check the connection status between control terminal and the RS-232 adapter. Response: "OK" when the connection is ok. Response: "ERROR" when the connection is not correct. Test the RS-232 status when first connect the adapter with the controller. Used to enable/disable auto-connection feature. It is available only when the adaptor is in the master role.
  • Page 13 Used to establish a connection manually. It is available only CONNECT= when the adaptor is in the master role. DEVI- Connect the adapter to a specified Bluetooth device manually. It is available only when "DEVICE=xxxxxxxxxxxx" is executed. Connect the adapter to a Bluetooth device in the Environment which found by "SEARCH=?"...
  • Page 14 Restore the status so the adaptor can connect with any remote address. Inquire the designated address that can be paired and connected. DIP= Set the DIP switch function. Inquire the setting status of the DIP switch function. Turn on the function of the DIP switch. The "ROLE" and "AUTO"...
  • Page 15 Used to specify a name for the adapter. You can specify a name by using 0 to 9, A to Z, a to z, space NAME= and -. (Note: Using Space or - as first or last character isn't permitted.) The default name is "Serial Adapter". Serial (Default) Default device name.
  • Page 16 (Default) Prompt result messages. Don't prompt result messages. Inquire the current setting. RECONNE- Used to re-connect the lost link for the Master adapter. Inquire the current setting. (Default) Re-connect is disable Re-connect is Enable Used to specify whether the adapter is in the master or slave role.
  • Page 17 Used to specify one or two stop bits of COM port. (Will have STOP= 200ms delay.) (Default) One stop bit. Two stop bits. Inquire the current setting. VERSION= Used to inquire the firmware version. Inquire the version codes. Command is not available under following status: SEARCH=? , CONNECT=?, CONNECT=P , ROLE=S CONNECT=xxxxxxxxxxxx , CONNECT=DEVICE...
  • Page 18: Rs232 Interface

    RS232 Interface 6.1. Pin-out 6.2. Signals Pin Signal Description Direction Direction Input Output Not connected Output Input Transmitting data Input Output Receiving data Input Output Contact manufacturer for set up Signal ground Output Input Contact manufacturer for set up Input Output Clear to send Output...
  • Page 19: Technical Support And Warranty

    Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 20 Fremont, CA 94538-3152, USA Phone: 510-657-8688 RS-232 Serial to Bluetooth Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
