SIIG CE-H23R11-S1 Quick Start Manual

Features
• HDMI input and output video signal can
reach 1080p/60 Hz.
• Support UAC&UVC , support 48 KHz PCM audio
• It is compatible with Windows & OS X
operating systems.
• With Mic recording input and HDMI loop out
• USB3.0, 300-350MB/s throughput and it is
compatible with USB 2.0.
• It can automatically detect the input video
formats and it will adjust to the set output
size and frame rate automatically.
• It can automatically detect the input audio
formats and switch it to 48KHz PCM audio.
• Multiple adapters can be used on one PC
• The firmware can be updated.
NOTE:
The quality of the recording video
d e p e n d s o n y o u r c o m p u t e r ' s
performance and software setting
Package contents
• USB 3.0 HDMI Capture Adapter Plus
• USB 3.0 Type-A to Type-A cable
• USB 2.0 Type-A to Micro-B cable
• Quick Start Guide

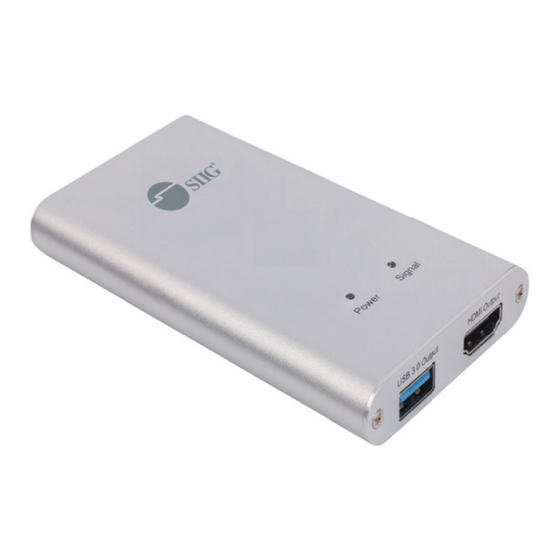

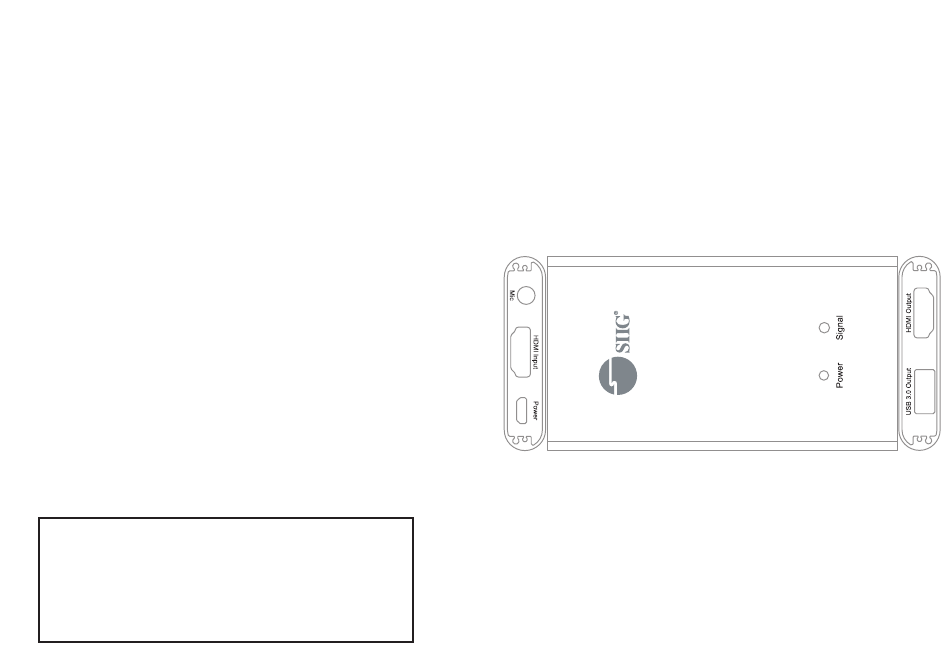

Layout
5
6
7
1. Signal Indicator: This LED illuminates
when the device captures the video normally.
2. Power Indicator: This LED illuminates
when the device is connected to computer
USB port.
3. HDMI Output: HDMI to display device
3
1
2
4
