SIIG JU-AV0012-S1 Quick Installation Manual

Usb 2.0 video capture adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Features and Benefits
•
Concerts analog video to digital DVD/VCD
•
Edit, organize and highlight video clips on
storyboard
•
Supports MPEG-1/2 and MPEG-4
System Requirements
•
PC computer with an available USB 2.0
port and soundcard
•
Windows
bit) / XP (32-/64-bit)
Serial Number Sticker
For future product return or exchange, this serial
number is required.
number for the software Product Key
The instructions on how to find the software
Product Key is on page 8.
04-0813A
USB 2.0 Video Capture Adapter
Quick
7 (32-/64-bit) / Vista (32-/64-
®
Installation
Do not use this serial
Guide
.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JU-AV0012-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG JU-AV0012-S1

Summary of Contents for SIIG JU-AV0012-S1

  • Page 1: Quick Installation Guide

    USB 2.0 Video Capture Adapter Quick Installation Guide Features and Benefits • Concerts analog video to digital DVD/VCD • Edit, organize and highlight video clips on storyboard • Supports MPEG-1/2 and MPEG-4 System Requirements • PC computer with an available USB 2.0 port and soundcard •...

  • Page 2: Package Contents

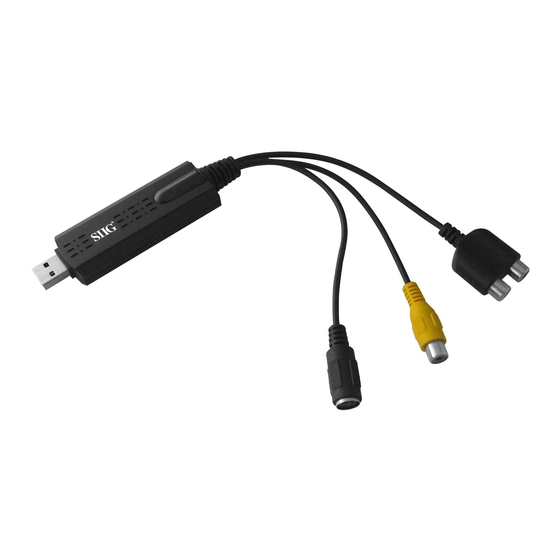

    Package Contents • USB 2.0 Video Capture Adapter • USB extension cable • Software CD • Quick installation guide Layout USB connector Audio L/R Video In S-Video Figure 1: Layout Note: When using S-Video connection, you must also connect Audio L/R to hear the sound.

  • Page 3: Driver Installation

    Driver Installation Windows 7 (32-/64-bit) / Vista (32-/64-bit) Boot up Windows. At the Windows desktop insert the software CD. AutoPlay box: Click AUTORUN.EXE. If the AutoPlay box doesn't start: Click Start, in Search programs and files box or Start Search box, type D:\autorun.exe, then press Enter.
  • Page 4 Click Install Applications in the main menu. At the User Account Control, click Yes or Allow. Select your language, then click Next. At the Welcome screen, click Next. Check I accept the terms of the license agreement, then click Next. At Choose the Destination Location, click Next.
  • Page 5 Windows XP (32-/64-bit) Boot up Windows. At the Windows desktop insert the software CD. Click Install Driver. Choose your Language, then click Next. At the Welcome screen, click Next, then click Install. At the Software Installation, click Continue Anyway. Check No, I will restart my computer later, click Finish.
  • Page 6 At the Windows Media Format 9 Series Runtime Setup, click Yes. Click Yes and click OK. At Adobe Reader 9.2 Setup window, click Next, Install then click Finish. At the InstallShield Wizard Complete, click Finish again. Insert the USB 2.0 Video Capture Adapter into an available USB port.
  • Page 7 Click Continue Anyway, then click Finish to complete the installation. To Verify Windows Installation Right click Computer or My Computer, then click Manage. For Windows 7 / XP: Click Device Manager. For Windows Vista: Click Continue, then click Device Manager. Double click Sound, video and game contollers.
  • Page 8 Product Key When starting Honestech VHS to DVD for the first time you will be prompted to enter a Product Key. The Product Key is found on the software CD sleeve. The Product Key can also be found in the contents of the software CD in a file called Key.txt.
  • Page 9 Honestech VHS to DVD Users Guide For detailed instructions on how to use the Honestech VHS to DVD software, please click Start/All Programs/Honestech VHS to DVD.../ Help for Honestech VHS to DVD... or click the question mark on the top right side of your screen while the Honestech VHS to DVD...

  • Page 10: Troubleshooting

    Burn In this phase, your saved videos can be burned onto DVD/CD. Drag and drop your saved videos from the screen on the far right onto the main screen. Click Burn to save to DVD/CD. Troubleshooting • If Windows does not detect the USB 2.0 Video Capture Adapter, plug it into a different USB port.

  • Page 11: Technical Support And Warranty

    Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 USB 2.0 Video Capture Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
