Introduction

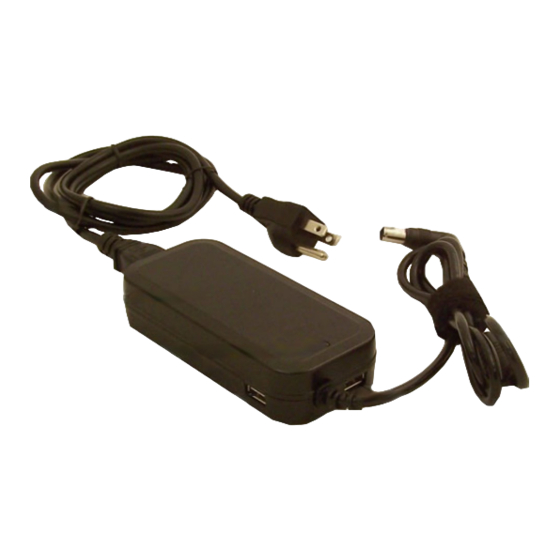

The Universal AC/Dual USB Power Adapter - 90W is an auto-
switching 90 watt universal laptop AC power adapter/
charger with both a 2.1A and 1A USB charging port.
Features and Benefits
•
Perfect as an additional or replacement AC adapter/
charger for most laptop computers
•
Includes 12 adapter tips for a variety of laptop/
notebook computers – including Acer, Asus,
Compaq, Dell, Fujitsu, Gateway, HP, IBM, Lenovo,
Sony, Toshiba and more
•
Coded tips make identifying correct tip to match
laptop computer easier
•
Output voltage settings adjusted automatically
based on adapter tip or device attached
•
Automatically adjusts input voltage for worldwide
use with no need for voltage converter (country
specific wall plug adapter may be required)
•
5V/2.1A USB and 5V/1A USB charging ports
perfect for fast charging of iPad, Galaxy, iPhone
and other USB powered devices
04-0864A
Universal AC/Dual USB
Power Adapter - 90W
Quick Installation Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIIG M1

Summary of Contents for SIIG M1

  • Page 1 Universal AC/Dual USB Power Adapter - 90W Quick Installation Guide Introduction The Universal AC/Dual USB Power Adapter - 90W is an auto- switching 90 watt universal laptop AC power adapter/ charger with both a 2.1A and 1A USB charging port. Features and Benefits •...

  • Page 2: Safety Information

    Introduction The Universal AC/Dual USB Power Adapter - 90W plugs into any AC power outlet anywhere in the world* and provides reliable power to run your notebook/laptop computer and charge its battery. The Universal AC/Dual USB Power Adapter - 90W uses quality components and features advanced voltage and heat protection circuits to ensure safety and efficiency.

  • Page 3: Package Contents

    Do not use a tip that is not listed on the Adapter Compatibility List with your laptop. Note: For the most updated adapter tip compatibility list, please check the support section at www.siig.com. Package Contents • Universal AC/Dual USB Power Adapter - 90W •...
  • Page 4 Layout Adapter Tip AC Cord Output Cable AC Adapter 5V/1A (max) USB 5V/2.1A (max) USB Charging Port Charging Port Figure 1: Layout Using the Universal AC/Dual USB Power Adapter - 90W Select your notebook/laptop brand and model from the Adapter Tip Compatibility List to find the right adapter tip.
  • Page 5 Connect the selected adapter tip to the end of the output cable, make sure that the ridge on the inside of the adapter tip aligns with the groove in the output cable connector. Also, make sure that the adapter tip is pushed all the way into the connector. Plug the AC cord into the AC adapter.
  • Page 6 Dual USB Charging Port The additional 5V/2.1A USB and 5V/1A USB charging ports can be used to charge your iPad, tablet computer, iPhone, mobile phone, MP3 player, and other USB powered devices. You can charge your laptop and use the USB charging ports individually or at the same time.
  • Page 7 Adapter Tip Specification Tip M1 • Output voltage: 15V • Voltage range: 14.2V - 15.5V • Output current (max): 6A • Connectors: 6.3 (OD) x 3.0 (ID) x 10.7 (L) mm Replacement: voltage and amperage for each notebook the tip can replace •...
  • Page 8 Tip M3 • Output voltage: 16V • Voltage range: 15.2V - 16.5V • Output current (max): 5A • Connectors: 6.0 (OD) x 4.4 (ID) x 10.7 (L) mm Replacement: voltage and amperage for each notebook the tip can replace • Sony: 16V/3.42A, 16V/3.75A, 16V/4A •...
  • Page 9 Tip M5 • Output voltage: 19V • Voltage range: 18.2V - 19.5V • Output Current (max): 4.7A • Connectors: 5.5 (OD) x 2.5 (ID) x 10.7 (L) mm Replacement: voltage and amperage for each notebook the tip can replace • ASUS: 19V/4.74A •...
  • Page 10 Tip M7 • Output voltage: 19V • Voltage range: 18.2V - 19.5V • Output current (max): 4.7A • Connectors: 5.5 (OD) x 2.1 (ID) x 10.7 (L) mm Replacement: voltage and amperage for each notebook the tip can replace • Acer: 19V/3.16A, 19V/3.42A, 19V/4.74A •...
  • Page 11 Tip M9 • Output voltage: 19.5V • Voltage range: 18.7V - 20V • Output current (max): 4.5A • Connectors: 7.4 (OD) x 5 (ID) x 12.5 (L) mm Replacement: voltage and amperage for each notebook the tip can replace. • Dell: 19.5V/3.34A, 19.5V/4.62A Tip M10 •...
  • Page 12 Tip M12 • Output voltage: 18.5V • Voltage range: 17.1V - 19.0V • Output current (max): 4.9A • Connectors: 7.4 (OD) x 5 (ID) x 12.5 (L) mm Replacement: voltage and amperage for each notebook the tip can replace. • HP/Compaq: 18.5V/3.5A, 18.5V/4.9A, 19V/4.74A...
  • Page 13 Adapter Tip Compatibility Chart t i j , l l s t i , l l...
  • Page 14 Adapter Tip Compatibility List ACER Tip M5 Acer Note Series: 367, 390. Extensa Series: 360, 390, 900, ESS3-391T, 4120, 5420G, 5620G, 5630G, 7620G, 7630G. Aspire 1300 Series: 1300 (DXV, XC, XV), 1301XV, 1302 (LC, X, XC), 1304 (LC, XC), 1306LC, 1307LC, 1310 (LC, XC), 1312(LC, LM, MX), 1313, 1313LC, 1314, 1314LC, 1315, 1315LC, 1315LM, 1350 (LC, LCe, LM, LMi), 1351, 1351LC, 1351LCi, 1351XC, 1352, 1352LC, 1352LCe, 1352LCi,...
  • Page 15 4270, 4280, 4282WLMi, 4283WLMi, 4400, 4401(LCi, LMi, WLMi),4402, 4402(WLCI, WLMI), 4404, 4404(LMI, WLMI), 4405WLMi, 4670,4730G, 5110, 5220G, 5510, 5520G, 5530G, 5610, 5620, 5710G, 5720G, 5730G, 6410, 6460, 6500, 6592G, 7200, 7220(G), 7510, 7520, 7520(G), 7530G, 7720G, 7730G, 8200, 8210. Tip M7 Acer TravelMate Series: 345T,347T, 351TE, 350TE, 352TE, 210, 210T, 210TER, 211T, 212T, 212TE, 212TXV, 213T, 213TXV, 220, 223X, 223XC, 225X, 225XC, 225XV-Pro, 230, 233XC,...
  • Page 16 Light 370, 370 (C, P, PC), 372, 373, 373+, 374, Light 380. ASUS Tip M4 A1, A2, F7, L1, L1B, L7, L8, L84D, L84K, M1, M2A, M3, M5, M5N, M6, M8, S1, S1A, S200, S3N, S5N, S8, T9. A6 Series: A6, A6JA, A6JC, A6Jm, A6K, A6KM, A6KT, A6M, A6T, A6Ta, A6Tc, A6R, A6VA, A6VM.
  • Page 17 F9 Series: F9F, F9J. G Series: G1,G1S, G2, G2S. M2 Series: M2000, M2000N. M6 Series: M6000N, M6700N, M6800N, M6B00N, M6N, M6V, M6VA. W3 Series: W3N, W3, W3V, W3000, W3000V. W5 Series: W5F, W5V. U5 Series: U5A, U5F. V1 Series: V1J, V1Jp. W2 Series: W2J, W2Pc, W2V.
  • Page 18 M6Ne, M6V, M6VA, M9V, R1E, S6F, U1F, U5A, U5F, U6E, U6V, V1J, V1Jp, V2Je, V6J, V6V, VX2, W1N, W1Jc, W2J, W2Pc, W2V, W3J, W3N, W3V, W3000, W5A, W5F, W5V, W7J, W7S, X51R, X55SA, X55Sr, X55Sv, Z32, Z33, Z35L, Z61, Z61A, Z63, Z70, Z270VA, Z71, Z71A/V, Z80K, Z83V, Z90K, Z91, Z93 Series.
  • Page 19 DV8320us, DV8327cl, DV8327us, DV8327ca, DV8327ea, DV8328ea, DV8328ca, DV8330us, DV8333cl, DV8339us, DV8356ea, DV8372ea, DV8373ea, DV8375la, DV8387ea, DV8380us, DV8395ea, DV8397ea, ZE2000, ZE2100, ZE2200, ZE2300, ZE2400, ZE2500, ZE4900, ZE4901us, ZE4910us, ZE4330. Special Edition: L2000, L2100, L2200, L2300 series. Compaq Business Notebook: NC8000, NC8100, NC8230. HP/Compaq Notebook PC: 8000 series, 8200 series (NC8230, NX8220), 8400 Series (NC8430, NX8420), NC2400, NC4400, NC6000, NC6100 (NC6110, NC6120), NC6200...
  • Page 20 HP Business Notebook: NC4000, NC6000, NC8000, NW8000, NX7000, NX9000, NX9010 series. HP Pavilion Series: dv1000, dv1100, dv1200, dv1300, dv1400, dv1500, dv1600, dv2000, dv2100, dv4000, dv4100, dv4200, dv4300, dv4400, dv5000, dv5100, dv8000, dv8100, dv8200, dv8300, dv8400, ze2000, ze2100, ze2200, ze4900 series, zt3000, zt3100, zt3200, zt3300, zt4000 series, HP Special edition L2000 series.
  • Page 21 HP/Compaq Elitebook: 2530P, 2530P, 2730P series. HP/Compaq G: G50, G60, G70, G70T-100 CTO, G70T-200 CTO. Mini: 2133, 2140, 5101, 5102, MINI-NOTE series. Probook: 4300, 4310S, 4400, 4410S, 4411S, 4415S, 4416S, 4500, 4510S, 4515S, 4516S, 4700, 4710S, 5300, 5310M series. HP/Compaq Thin Client: 2533T, 4410T series. HP Pavilion: DV3-1000, DV4-1000, DV4-1100, DV4-1200, DV4T-1000, DV4T-1100, DV4T-1200, DV4Z-1000, DV4Z-1100, DV4Z-1200, DV5-1000, DV5-1100, DV5-1200,...
  • Page 22 Inspiron: 1150, 1420, 1501, 1705, 1720, 1721, 600m, 3200, 6400, 8500, 8500m, 8600, 9200, 9300, 9400, E1501, E1505, E1705, 300m, 500m, 505m, 510m, 600m, 600mcr, 630m, 640m, 6000, 6400 (E1505), 700m, 710m, 8500, 8600, 8600CR, 9200, 9300, 9400 (E1705). Latitude: 100L, 131L, D400, D410, D420, D430, D500, D505, D510, D520, D530, D531, D531N, D560, D600, D610, D620, D630, D630N, D631, D631N, D800, D810, D820, D830, D830N, X300.
  • Page 23 Fujitsu Tip M3 Lifebook: Milan, Monte Carlo, Montegro, PenCentra 130, PenCentra 200, Point 1600, Point 510, 270DX, 280DX, 3700X, 400, 420D, 435DX, 500, 500SR, 520 (D, T), 530 (T), 531 (T, TX), 535 (T, TX), 555TX, 556TX, 565TX, 585 (T, TX), 600, 635 (T, TX), 655TX, 656TX, 675TX, 690TX, 695, 735DX, 755TX, 765 (DX, TX), 770TX, 780TX, 790TX.
  • Page 24 Lifebook I Series: i4120, i4170, i4177, i4178, i4187, i4190. Lifebook L Series: L440, L460, L470. Lifebook N Series: N6000, N6010, N6110, N6200, N6210, N6220, N6420. Lifebook P Series: P1000, P1032, P1035, P1110, P1120, P1510, P1610, P1620, P2000, P2020, P2040, P2046, P2110, P2120, P250, P5000, P5010, P5010D, P5020, P5020D, P7000, P7010, P7120, P7230, P7230D, P7230P, P8010, P8020, P8210, P8220, P8310.
  • Page 25 Siemens Amilo A Series: A1600, A1640, A1645(G), A1650 (G), A1667 (G), A1840, A2200+, A6600, A6660, A7600, A7620, A7640, A7645, A8600, A8620, A8625. Siemens Amilo M Series: M1425, M7405. Siemens Amilo Pro V1 Series: V1000. Siemens Amilo Pro V2 Series: V2000, V2010, V2020, V2030, V2035, V2040, V2045, V2055, V2060, V2065, V2085.
  • Page 26 Siemens LifeBook E7000 Series: E7010, E7110. Siemens LifeBook E8000 Series: E8010, E8020, E8020D, E8110. LifeBook N Series: N3511, N3520, N3530, N6110, N6210, N6410, N6420. LifeBook S Series: S2210, S6310, S6311, S6410, S7010, S7010D, S7020, S7020 (B, D, E), S7021, S7025, S7110, S7111. LifeBook T Series: T4020 (A, B, D).
  • Page 27 MX6420, MX6421, MX6423, MX6424, MX6425, MX6428, MX6450, MX6625, MX6627, MX6627h, MX6629, MX6629h, MX6631, MX6650, MX6650h. Tip M7 Solo 1100, 1150, 1200, 1400, 1450, 2100, 2300, 2500, 3300, 3450, 3350, 5100, 9100, 9300, 9550, Solo 400L, 450L, 5300, 5350, 600L. IBM / Lenovo Tip M2 ThinkPad: 130, 235, 240, 240 (X, Z), 290, 310, 360, 365 (CD, CS, CSD, SE, E, ED, X, XD), 370, 380(D, D-MMX, E, ED, XC,...
  • Page 28 2611, i1512, i1552 series. Tip M11 ThinkPad: T60, X60, Z60, Z60M, Z60T, R60, SL410. IBM/Lenovo: N100,V100, 3000, C100. Tip M1 Versa LX, Versa LXi, Versa SX, Versa SXi, Versa LX NPX- 6097-UJ-BB, Versa S900, NEC Portege 3500 Tip M5 Ready: 220T, 120LT, 330T, 340T, 360T, 440T, VX.
  • Page 29 P Series: P10, P10c, P20, P20c, P25, P25c, P28, P29, P30, P35, P40, P50, P55, P60, P200, P210, P400, P410, P500, P510, P560. Q Series: Q1, Q1 Ultra, Q35, Q40, Q45, Q70. R Series: R20+, R40, R45, R50, R60+, R65, R70, R700. VM Series: VM6000, VM7000, VM8000.
  • Page 30 Tip M8 Stylistic Series: PCG-505 series, PCG-C1 series, PCG-GR series, PCG-SR series, PCG-SRX series, PCG-TR1 series, PCG-VX series, PCG-Z1A series, PCG-800 series. Sony VAIO: F, FX, FXA, XG, VGN FW, R505, GRS, GRX, FR, NV series. Vaio PCG-FR Series: PCG-FR100, PCG-FR102, PCG-FR105, PCG-FR130, PCG-FR130U, PCG-FR150, PCG-FR215E, PCG-FR215H,...
  • Page 31 PCG-GRX72, PCG-GRX727, PCG-GRX81G/P, PCG-GRX90/P, PCG-GRX91G/P, PCG-GRX92G/P. Toshiba Tip M1 PA2501U, PA2521(U, U-1ACA), PA3201U-1ACA, PA3282E- 1ACA, PA3283E-2ACA, PA3283U-1ACA, PA3283U-2ACA. Satellite: 1400, 1405, 1410, 1415, 1550, 1800, 1805, 1830, 2000, 2100, 2140, 2180, 2210, 2280, 2400, 2405, 2410, 2415, 2430, 2435, 2450, 2455, 2500, 2505, 2510, 2515, 2520, 2530,...
  • Page 32 Portege Series: 300, 320, 610, 620, 650, 660, 2000, 2010, 3400, 3500, 3505, 3600, 4000, 4005, 4010, 7000, 7010, 7020, 7030, 7140, 7200, R100. Tecra: 9000, 9100 Series, A1, A2, A3, A4, M1, M2, M3, M4, S1, S2, TE2000, TE2100, TE2300. Tip M5 PA3516E-1AC3, PA-1900-24, PA3290E-3AC3, Satellite A300-05U, P200 BW5, PA3468U-1ACA, P205, U405.
  • Page 33 Satellite: M30X, M35X, U300, U300-114, U305, PA3032U-1ACA, PA3165U-1ACA, ADP-75SBAB, PA-1750-04, PA3467E-1AC3, PA3476U-1ACA, PA3468E-1AC3, ADP-75SB BB, PA3432U-1ACA, PA3097U-1ACA. What tip should I used for my laptop? You can find the correct tip for your laptop by looking in the Adapter Tip Compatibility List. What laptops will this adapter work with? The Universal AC/USB Power Adapter - 90W is compatible with various brands of laptops.
  • Page 34 Will using an incorrect adapter tip damage the my laptop? Using an incorrect tip can damage your laptop. The adapter tips are designed to be used with specific laptops. Therefore, only use the tip that is designed specifically for your laptop. Refer to the Adapter Tip Compatibility List for the correct tip for your laptop.

  • Page 35: Technical Support And Warranty

    Go to www.siig.com, click Support, then Request A Product Replacement to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 36 Fremont, CA 94538-3152, USA Phone: 510-657-8688 Universal AC/Dual USB Power Adapter - 90W is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
