Introduction

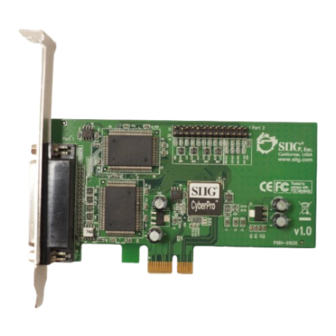

The CyberParallel Dual PCIe high-speed parallel adapter
provides two additional parallel ports to your PCI Express
enabled system.
Features and Benefits
•
Compliant with PCI Express Base Specification
Revision 1.0a
•
PCI Express 1-lane (x1) parallel adapter works with
PCI Express slots with different lane width
•
Full support for Windows-based software
•
Supports EPP, ECP and SPP parallel port modes
System Requirements
•
PCI Express enabled system with an available PCI
Express slot
•
Windows
/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-
/64-bit) / Server 2008 R2 / 2000
Package Contents
•
CyberParallel Dual PCIe
•
DB25 connector bracket (for the 2nd parallel port)
•
Driver CD
•
Installation guide
04-0423D
CyberParallel Dual PCIe
Installation Guide
8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-
®
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG CyberParallel Dual PCIe
Summary of Contents for SIIG CyberParallel Dual PCIe
- Page 1 CyberParallel Dual PCIe Installation Guide Introduction The CyberParallel Dual PCIe high-speed parallel adapter provides two additional parallel ports to your PCI Express enabled system. Features and Benefits • Compliant with PCI Express Base Specification Revision 1.0a • PCI Express 1-lane (x1) parallel adapter works with PCI Express slots with different lane width •...
- Page 2 Layout Parallel Pin-1 Port 2 Parallel Port 1 Figure 1. Layout Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer s reference ’ manual for further information, if needed. Static Electricity Discharge may permanently damage your system.
- Page 3 Replace the computer cover and reconnect the power cord. Driver Installation This section provides information on how to install the CyberParallel Dual PCIe drivers. Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Server 2008 R2 Install the board and boot up Windows.
- Page 4 Click Browse my computer for driver software. Type D:, click Next, then click Close. (Change D: to match your CD/DVD-ROM drive letter) At Windows has successfully updated your driver software, click Close. Go back to Device Manager, right click PCI Parallel Port, click Update Driver Software.
- Page 5 Windows Server 2008 (32-/64-bit) At the Found New Hardware window, click Locate and install driver software (recommended). Click Don't search online. Click I don't have the disc. Show me other options. Click Browse my computer for driver software (advanced). Insert the driver CD. Type D:, then click Next. (Change D: to match your CD/DVD-ROM drive letter) Click Close , then restart the computer to complete...
- Page 6 Manage, double click Diagnostics, then click Device Manager. Double click Ports (COM & LPT), then double click the SIIG CyberPro Parallel port you want to change. Click Port Settings tab. Click the down arrow next to the LPT Port Number box, then select a parallel port that is not in use.
- Page 7 SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
- Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 CyberParallel Dual PCIe is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
