Features and Benefits
•
MIMO technology improves data
throughput and range
•
Supports 2.4GHz WLAN networks and
complies with IEEE 802.11n/g/b
•
Operating distance: up to 300ft indoor
and 900ft open space
•
Supports WLAN security with WPA,
WEP (128/64) and WPS
Lot Number Sticker
For product return or exchange, this number is
required. Keep it for your reference.
04-0869D

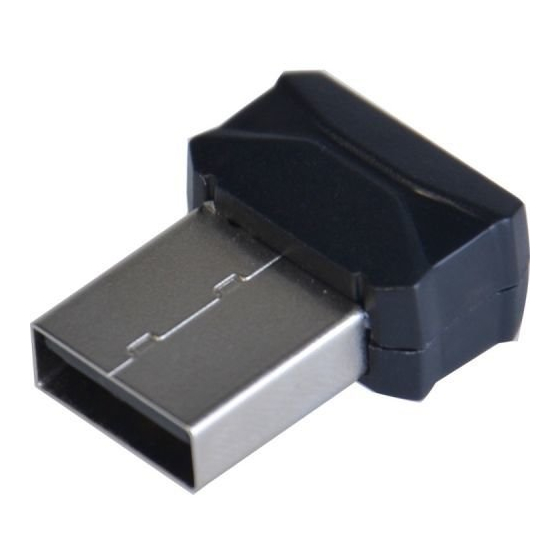

Wireless-N Mini USB
Wi-Fi Adapter
Installation Guide
Lot Number
Part Number
1
Advertisement
Table of Contents
Related Manuals for SIIG Wireless-N Mini USB Wi-Fi Adapter
Summary of Contents for SIIG Wireless-N Mini USB Wi-Fi Adapter
- Page 1 Wireless-N Mini USB Wi-Fi Adapter Installation Guide Features and Benefits • MIMO technology improves data throughput and range • Supports 2.4GHz WLAN networks and complies with IEEE 802.11n/g/b • Operating distance: up to 300ft indoor and 900ft open space • Supports WLAN security with WPA, WEP (128/64) and WPS Lot Number Sticker...
-
Page 2: Package Contents
Package Contents • Wireless-N Mini USB Wi-Fi Adapter • Driver CD • Installation guide System Requirements • Laptop or desktop computer with an available USB port • Windows 10 (32-/64-bit) /8 (32-/64- ® bit) / 7(32-/64-bit) / Vista (32-/64-bit) /XP(32-/64-bit) /Server 2003 & 2008... -
Page 3: Windows Driver Installation
Windows Driver Installation Plug in the Wireless-N Mini USB Wi-Fi Adapter to your computer. Click Close at the Found New Hardware. Skip this step if not prompted. Insert the driver CD, click Windows key and R, type D:\windows\setup.exe, then click OK. (Change D:\ to match your CD-/DVD-ROM drive letter.) Follow the on-screen instructions to complete the installation. -
Page 4: Mac Os Driver Installation
Add Features Wireless LAN Service Next Figure 2 Mac OS Driver Installation Important: Do not connect the Wireless-N Mini USB Wi-Fi Adapter to the computer until instructed to do so. Insert the driver CD, double click Driver CD icon on the Desktop, then double click Mac folder. - Page 5 Follow the on-screen instructions to complete the installation. Restart your computer, then plug the Wireless-N Mini USB Wi-Fi Adapter to your computer. Realtek USB Wireless LAN Utility The windows below are taken from Windows OS. For Mac OS, the images will be slightly different.
-
Page 6: Wi-Fi Protected Setup (Wps)
At the prompted Wireless Network Properties, type in the Network key, then click OK. Once the network is connected, the network status will show Associated or Connected. Associated Figure 4 Wi-Fi Protected Setup (WPS) WPS is an easy way to setup a secure wireless network with each Windows OS. - Page 7 Pin Input Launch the REALTEK USB Wireless LAN Utility and select the "Wi-Fi Protect Setup" tab. Figure 5 Make sure the driver has installed and the adapter is connected. Click Push Button Config (PBC) on the screen to initialize the connection.
- Page 8 Push the Pin Input Config (PIN) button, then enter the PIN code into your AP's WPS configuration section. When the devices are communicating, WPS Protocol Communication will be displayed. Figure 6 See Figure 4 on page 6 to verify the connection status as Associated or Connected.
- Page 9 Blank Page...
- Page 10 Blank Page...
-
Page 11: Technical Support And Warranty
This warranty is not transferable and is available only to the original purchaser of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. - Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 Wireless-N USB Wi-Fi Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
