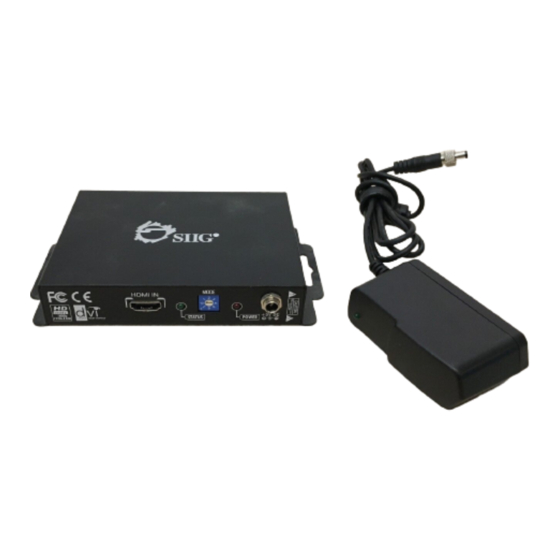

Introducing the HDMI to DVI + Audio
The HDMI to DVI + Audio provides an easy solution for
converting digital HDMI to digital video (DVI-D) and
both digital audio (S/PDIF) and analog stereo audio.
This device enables you to connect full digital video and
audio to DVI enabled monitors and coaxial S/PDIF
equipped audio receivers and amplifiers for highest
compatibility to your home theater system.

Features and Benefits

•
HDMI 1.2a compliant
•
Fully HDCP compliant
•
Supports DVI video up to 165 MHz
•
Coaxial S/PDIF and stereo analog audio outputs
•
Front panel LED indicators
•
Works with various types of HDMI based audio/
video devices including DVD players, game
consoles, camcorders, set-top boxes

Package Contents

•
HDMI to DVI + Audio converter
•
Power Adapter (5V, 2A)
•

Quick Installation Guide

04-0495A
HDMI to DVI + Audio
Quick Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE-HM0021-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG CE-HM0021-S1

Summary of Contents for SIIG CE-HM0021-S1

  • Page 1: Quick Installation Guide

    HDMI to DVI + Audio Quick Installation Guide Introducing the HDMI to DVI + Audio The HDMI to DVI + Audio provides an easy solution for converting digital HDMI to digital video (DVI-D) and both digital audio (S/PDIF) and analog stereo audio. This device enables you to connect full digital video and audio to DVI enabled monitors and coaxial S/PDIF equipped audio receivers and amplifiers for highest...
  • Page 2 Technical Specifications • Video Amplifier Bandwidth: 1.65 Gbps • Input Video Signal: 1.2 Volts p-p • Input DDC Signal: 5 Volts p-p (TTL) • Single Link Range: 1080p/1920 x 1200 • HDMI connector: 19 pin type female connector • DVI connector: DVI-I 29 pin female (digital only) •...

  • Page 3: Hardware Installation

    Rotary Switch The function of the rotary switch is reserved, please keep the rotary switch at 0. • Position 0: Analog audio output • Position 1: Analog audio output • Position 2: Analog audio output • Position 3: Analog audio output •...

  • Page 4: Connecting Devices

    Connecting Devices HDMI to DVI+Audio HDMI Source Figure 1: Connecting Devices Safety Precautions Like all electronic equipment the HDMI to DVI + Audio should be used with care. Please read and follow the safety precautions to protect yourself from possible injury and minimize the risk of damage to the unit.
  • Page 5 Notes • Audio Out jack supports 2-channel stereo audio only • S/PDIF Out supports up to 8-channel audio output (depending on the audio source)
  • Page 6 Blank Page...

  • Page 7: Technical Support And Warranty

    Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product.
  • Page 8 Fremont, CA 94538-3152, USA Ph: 510-657-8688 HDMI to DVI+Audio is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of their respective companies.
